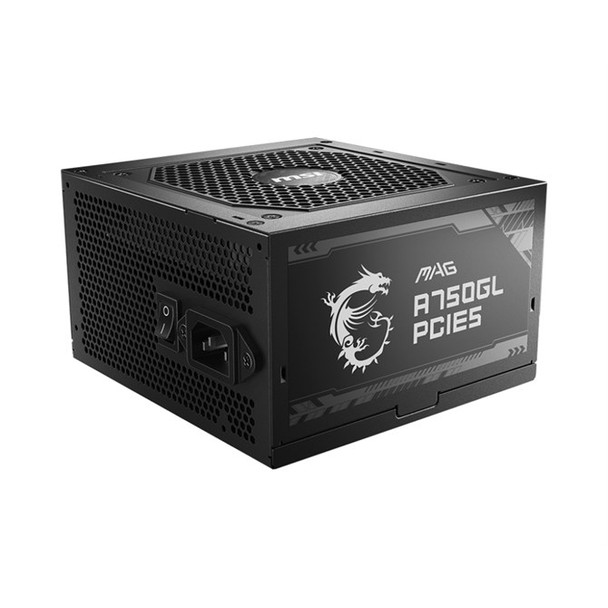

MSI MAG A750GL PCIE5 Power Supply Unit 750 W 20+4 Pin ATX ATX Black MAGA750GLPCIE5

The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

ATX 3.0 COMPATIBLE
It has an output port that is compliant with PCIe 5.0 and Intel PSDG(Power Supply Design Guide) ATX 3.0, also the MAG A750GL PCIE5 power supply can handle up to 2x total power excursion and 3x GPU power excursion.

80 PLUS GOLD CERTIFIED
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.

COMPACT SIZING
Smaller than typical PSUs on the market, this power supply unit that can save space and make it easier to organize cables in the computer case by freeing up more room inside.

ONLY WHAT YOU NEED
The connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build. Additionally, the included cable pack provides a storage solution for any unused cables.

ALL THE MORE ORGANIZED
Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.

FLUID DYNAMIC BEARING
The power supply’s fan sports a fluid dynamic bearing that perfectly balances cooling performance and noise level.

DC TO DC & FULL BRIDGE
DC to DC and Full bridge be combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design.

THE POWER YOU HAVE
The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply's 5 CPU & PCI-E slots are more than plenty.

PROTECTION MECHANISMS
To make sure the entire system can operate safely and stably at all times, the power supply comes with a number of protection mechanisms to give you the best peace of mind.

Specs




Power


Total power

The total power that is needed by the device, or the total power produced by the device.

750 W


AC input voltage

The voltage of the AC electricity that is inputted into the product.
0 - 240 V


AC input frequency

47 - 63 Hz


Maximum input current (@110V)

8 A


Maximum input current (@220V)

4 A


Power Factor Correction (PFC) type

Active


Combined power (+3.3V)
0 W


Combined power (+12V)

744 W


Combined power (+5V)
0 W


Combined power (-12V)

3.6 W


Combined power (+5Vsb)
.5 W


Max output current (+3.3V)
A


Max output current (+12V)

62 A


Max output current (+5V)
A


Max output current (-12V)

0.3 A


Max output current (+5Vsb)

2.5 A


Efficiency

90%


Power protection features

Features that protect the device against power problems e.g. overload.

Over current, Over power, Over voltage, Overheating, Short circuit


Ports & interfaces


Motherboard power connector

The way in which the motherboard is connected to the power supply.
+4 pin ATX


Motherboard power cable length

45 cm


Number of SATA power connectors

8


Peripheral (Molex) power connectors (4-pin)

White 4-pinned connector used to connect a peripheral to the power supply.

4


EPS power connector (8-pin)





Ports & interfaces


EPS power connector (4+4 pin)




PCI Express power connectors (6+2 pin)

3


CPU power connector (4+4 pin)




ATX Power connector (24-pin)




ATX power connector (20+4 pin)




Cabling type

Fully-Modular


Performance


80 PLUS certification

80 PLUS Gold


Purpose

What the product is used for.

PC


Power supply unit (PSU) form factor

ATX


Design


Product colour

The colour e.g. red, blue, green, black, white.

Black


Cooling type

The method used to cool the device or to cool the air around the device.

Active


Fan diameter

The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan.
cm


Number of fans

The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).

1 fan(s)


Illumination

The device has illumination.




On/off switch

The button which is pressed to switch the device on or off.




Weight & dimensions


Width

The measurement or extent of something from side to side.
0 mm


Depth

The distance from the front to the back of something.
0 mm


Height

The measurement of the product from head to foot or from base to top.

86 mm


Packaging data


Package type

The type of product package e.g. box.

Box


Logistics data


Harmonized System (HS) code

84733020
