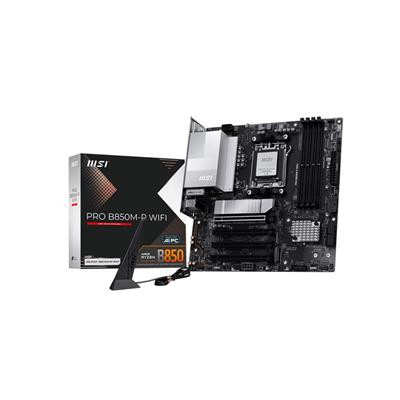

Msi PRO B850M-P WIFI Socket Am5/B850/Ddr5/S-Ata 6Gb/S/Micro Atx PRO B850M-P WIFI

Product Group:

Motherboards



Manufacturer:

MSI



SKU:
7186


Product Specifications



Product Name:

MSI PRO B850M-P WIFI (Socket AM5/B850/DDR5/S-ATA 6Gb/s/Micro ATX)



Web Address:

uk.msi.com



Model Number:

PRO B850M-P WIFI



EAN:

4711377350181



Package Type:

Retail



Warranty:

3 Years



Chipset:

AMD B850



CPU Interface:

Socket AM5



CPU Support:

https://www.msi.com/Motherboard/PRO-B850M-P-WIFI/support#cpu



RAM Technology:

DDR5 (Dual Channel)



RAM Slots:

4 x 288-pin



RAM Speeds:

Up to DDR5 8200 (O.C.)



Max. Memory Support:

256GB



PCI Express 3.0 x16:

3



PCI Express 5.0 x16:

1



S-ATA 6Gb/s Port(s):

4



RAID:

Raid 0/1/10



M.2 Socket(s):

1 x PCIe Gen 5.0 x4
2 x PCIe Gen 4.0 x4



LAN Speed:

Realtek 8126VB 5G LAN



Wireless NIC:

Wi-Fi 7



Wireless Technology:

The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be



Bluetooth:

v5.4



On-Board Audio:

Realtek ALC897
7.1-Channel High Definition Audio



On-Board Video:

Processor with integrated graphics is required



Back USB 2.0 Port(s):

4



Back USB 5Gbps Port(s) Type-A:

2



Back USB 10Gbps Port(s) Type-A:

1



Back USB 10Gbps Port(s) Type-C:

1



Back HDMI Port(s):

1



Back DisplayPort(s):

1



Back LAN Port(s):

1



Back Audio Jack(s):

3



Back Other Port(s):

Wi-Fi / Bluetooth



Back Button(s):

1 x Clear CMOS
1 x Flash BIOS



24-pin ATX Power:

1



8-pin ATX Power:

1



PCIe Power Connector(s):

1 x 8-pin



USB 2.0 Header(s):

4



USB 5Gbps Header(s):

4



USB 10Gbps Header(s):

1



COM Port Header(s):

1



TPM Header(s):

1



Internal Other Port(s):

4 x EZ Debug LED
1 x EZ Memory Detection LED
3 x Addressable V2 RGB LED connector
1 x RGB LED connector



Form Factor:

Micro ATX



Product Width:

243.84mm



Product Length:

243.84mm



Package Width:

27.2cm



Package Length:

28cm



Package Height:

7cm



Net Weight:

0.89Kg



Gross Weight:

1.40Kg



Package Contents:

Motherboard
Quick Installation Guide
2 x M.2 Screw Standoff Sets
EZ M.2 Clip II Remover
1 x EZ M.2 Clip II
EZ Wi-Fi Antenna
SATA Cable
