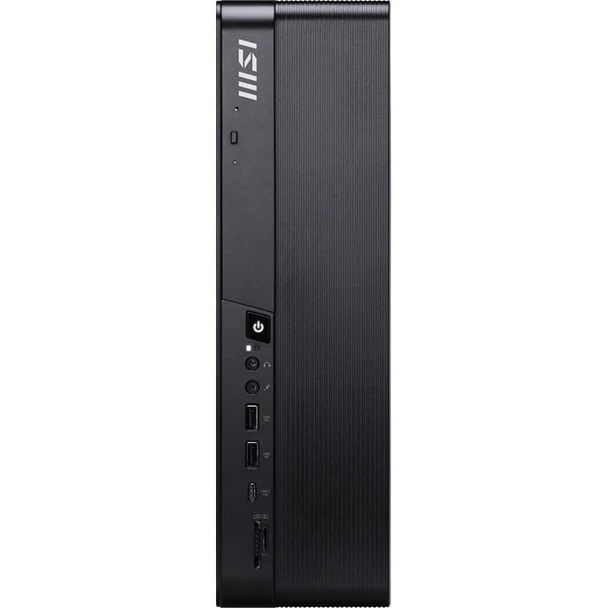

MSI Pro DP80 A14G Intel Core 7 14700 Desktop PC DP80 A14G SFF Mini Computer HTPC 4.71138E+12

Specs




Processor


Processor manufacturer

The manufacturer that produced the processor.

Intel


Processor family

A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.

Intel® Core™ i7


Processor generation

Intel® Core™ i7 (14th gen)


Processor model

The model number for the processor in a computer.

i7-14700


Processor cores

The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).



Processor threads

28


Processor boost frequency

The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded.

5.4 GHz


Processor frequency

The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform.

2.1 GHz


Performance cores

8


Efficient cores



Performance-core Max Turbo Frequency

5.3 GHz


Efficient-core Max Turbo Frequency

4.2 GHz


Performance-core base frequency

2.1 GHz


Efficient-core base frequency

1.5 GHz


Processor cache

33 MB


Processor cache type

Smart Cache


Number of processors installed

Number of processors in the product.

1


Processor base power

65 W


Maximum turbo power

219 W


Neural processor unit (NPU)


Copilot+ PC




Neural processor unit (NPU)




Memory


Internal memory

A computer's memory which is directly accessible to the CPU.
GB


Maximum internal memory

The maximum internal memory which is available in the product.

64 GB


Internal memory type

The type of internal memory such as RAM, GDDR5.

DDR5-SDRAM


Memory layout (slots x size)

The slots and size of the memory for the CPU.

2 x 8 GB


Memory slots

Number and type of memory expansion slots, including connector and memory module descriptions.

2x SO-DIMM


Memory clock speed

The frequency at which the memory (e.g. RAM) runs.

5600 MHz


ECC

ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention.




Non-ECC




Memory channels

Dual-channel


Buffered memory type

Clocked unregistered (unbuffered)


Memory data transfer rate

38.4 MT/s


Storage


Total storage capacity

The total amount of data that can be stored on the device.

1 TB


Storage media

Used for the storage of data e.g. HDD (hard disk drive), SSD (solid-state drive).

SSD


Optical drive type

An optical drive uses laser to read optical discs such as CDs, DVDs and Blu-Ray. Some types of optical drive are: CD ROM drive, CR-RW (CD writer) drive, DVD-ROM.




Number of storage drives installed

Amount of storage drives built into the device.

1


Total HDDs capacity

0 GB


HDD capacity

The maximum storage capacity of the hard disk, usually measured in bytes e.g. GB.

0 GB


Total SSDs capacity

1 TB


Number of SSDs installed

1


SSD capacity

The Solid State Drive's data storage capacity.

1 TB


SSD memory type

TLC


SSD interface

The type of interface(s) with which the Solid State Drive is connected to other hardware.

PCI Express 4.0


NVMe

NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices.




SSD form factor

The size of the solid-state drive, given in inches

M.2


M.2 SSD size

2280 (22 x 80 mm)


Intel® Optane™ Memory module installed




Intel® Optane™ Memory module capacity

0 GB


Embedded storage capacity

0 MB


Graphics


Discrete graphics card




On-board graphics card

Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.




On-board GPU manufacturer

Intel


On-board graphics card family

Intel® UHD Graphics


On-board graphics card model

"Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.

Intel UHD Graphics 770


On-board graphics card cores

32


On-board graphics card 6K support




On-board graphics card 8K support




Number of external displays supported

3


Graphics card Open GL support




NVIDIA G-SYNC




NVIDIA GameWorks VR




CUDA

CUDA (aka Compute Unified Device Architecture) is a parallel computing platform and programming model created by NVIDIA and implemented by the graphics processing units (GPUs) that they produce. CUDA gives program developers direct access to the virtual instruction set and memory of the parallel computational elements in CUDA GPUs.




AMD FreeSync

The product includes AMD Freesync Technology for the dynamic synchronization of the graphic card and the monitor in order to avoid screen tearing.




Ray tracing acceleration




Graphics card HDMI ports quantity

1


Graphics card DisplayPorts quantity

1


Graphics card VGA (D-Sub) ports quantity

1


Network


Ethernet LAN

An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.




Ethernet LAN data rates

The different speed levels of the Ethernet LAN connection.
, 100, 1000, 2500 Mbit/s


LAN controller

Intel® I219-V, Intel I226-V


Wi-Fi

Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.




Top Wi-Fi standard

Connection of this device is done via Wi-Fi in a high standard.

Wi-Fi 6E (802.11ax)


Wi-Fi standards

The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.

Wi-Fi 6E (802.11ax)


WLAN controller manufacturer

Intel


WLAN controller model

Intel Wi-Fi 6E AX211


Bluetooth

Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.




Bluetooth version

The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).

5.3


Bluetooth Low Energy (BLE)




Wake-on-LAN ready




Miracast




Ports & interfaces


USB 2.0 ports quantity

Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.

4


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2


USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.

1


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2


USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.

1


PowerShare




Number of USB ports with PowerShare support

1


USB Type-C DisplayPort Alternate Mode




Intel® Thunderbolt 4




Intel® Thunderbolt 5




VGA (D-Sub) ports quantity

Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM.

1


DVI port

Digital Visual Interface (DVI) is a video display interface to connect a video source to a display device, such as a computer monitor.




HDMI ports quantity

The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.

1


HDMI version

2.1


DisplayPorts quantity

Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.

1


DisplayPort version

1.4


PS/2 ports quantity

The number of PS/2 connectors for keyboards and mice. Its name comes from the IBM Personal System/2.

1


Ethernet LAN (RJ-45) ports

Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

2


Microphone in

The socket where a microphone is connected to the device.




Headphone outputs

Number of sockets /ports where headphones are connected.

1


Line-out





Ports & interfaces


Line-in




Combo headphone/mic port




S/PDIF out port

S/PDIF (Sony/Philips Digital Interconnect Format) is a digital audio interconnect used in consumer audio equipment over relatively short distances. The signal is transmitted over either a coaxial cable with RCA connectors or a fibre optic cable with TOSLINK connectors.




DC-in jack

The socket/plug where the DC electricity supply connects to the device.




Serial ports quantity

The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces.

1


Number of rear USB ports

6


Number of front USB ports

3


Number of front audio ports

2


Number of rear audio ports

3


Fiber NIC port (Flex I/O)




Total number of SATA connectors

4


Number of SATA III connectors

Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface, formally known as SATA 6Gb/s, is a third generation SATA interface running at 6.0Gb/s. The bandwidth throughput, which is supported by the interface, is up to 600MB/s. This interface is backwards compatible with SATA 3 Gb/s interface.

4


Expansion slots


PCI Express x1 slots

1


PCI Express x1 (Gen 3.x) slots

1


PCI Express x16 slots

1


PCI Express x16 (Gen 4.x) slots

1


Design


Chassis type

The type of rigid framework onto which is the hosuing for device components.

Mini Tower


Colour name

Black


Placement supported

Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.

Vertical


Water cooling system

System using water to remove heat from a machine or system.




Number of 3.5" bays

A drive bay is a standard-area for adding hardware to a computer. Most drive bays are fixed to the inside of a case, but some can be removed. A 3.5" drive bay is for floppy disks.

1


Number of 2.5" bays

1


Cable lock slot

Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.




Cable lock slot type

Kensington


Product colour

The colour e.g. red, blue, green, black, white.

Black


Copilot key




Housing material

What the casing of the product is made of.

Metal, Plastic


Viewing window

Transparent window in the device, which is created to view the progress of performance.




RGB memory lighting




Introduction year
25


Introduction month

June


Country of origin

Country where the device is made. Aka Country of manufacture (COM).

China


Refurbished




Certified refurbished




Performance


Market positioning

Under which category can the device be positioned in the market, e.g. camera phone.

Business


Powered by

MSI


Virtual Reality (VR) ready




Motherboard chipset

The chipset connects the microprocessor to the rest of the motherboard.

Intel H610


Motherboard form factor

Design of the motherboard (ATX, BTX etc).

micro ATX


Compatible processor series

A processor which is compatible with this device, belongs to a 'series' which is part of 'family' e.g Celeron D, Celeron G, Celeron M, or, in some cases, is the same as 'family'.

Intel Core i7 14th Gen


Audio chip

Realtek ALC897


Audio system

System used to play music or speech.

High Definition Audio


Audio output channels

An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.

7.1 channels


Built-in speaker(s)

The device contains speaker(s) to produce sound.




Password protection

The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure.




Password protection type

BIOS, HDD


Fingerprint reader

A scanner used to identify a person's fingerprint for security purposes. After a sample is taken, access to a computer or other system is granted if the fingerprint matches the stored sample. A PIN may also be used with the fingerprint sample.




BIOS type

The BIOS (Basic Input/Output System) initializes and tests system hardware components, and loads a bootloader or an operating system from a mass memory device. The BIOS additionally provides abstraction layer for the hardware, i.e. a consistent way for application programs and operating systems to interact with the keyboard, display, and other input/output devices. There are several types of BIOS, including the motherboard ROM BIOS, video BIOS, drive controller BIOS, network adapter BIOS, and SCSI adapter BIOS.

UEFI AMI


Trusted Platform Module (TPM)




Product type

The sub-category of the product.

PC


Trusted Platform Module (TPM) version

2.0


Software


Operating system architecture

The way in which the operating system of a computer/smartphone (32-bit/64-bit) is set up.

64-bit


Operating system language

English


Windows 11 free upgrade




Operating system installed

Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.

Windows 11 Pro


Apple Intelligence




Drivers included




Processor special features


Video decode engine




Video encode engine




Power


Power supply

The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable.

300 W


Power supply input voltage
0 - 240 V


Power supply input frequency

The frequency of the electricity, usually measured in Hertz (Hz), which is supplied by the power supply. Mains electricity in many parts of the world is 50Hz.

50 - 60 Hz


Power consumption (max)

The maximum amount of power used by the device.

219 W


80 PLUS certification

80 PLUS Bronze


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 35 °C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-20 - 60 °C


Operating relative humidity (H-H)

0 - 85%


Storage relative humidity (H-H)

0 - 90%


Operating altitude

0 - 2000 m


Non-operating altitude

0 - 12000 m


Operating vibration

Environmental requirements for vibration in operating mode

0.21 G


Non-operating vibration

Environmental requirements for vibration in non-operating mode

2 G


Operating shock

Environmental requirements for optimal protection from impact in operating mode
G


Non-operating shock

Environmental requirements for optimal protection from impact in non-operating mode

40 G


Certificates


Waste Electrical and Electronic Equipment (WEEE) compliance




Low halogen




PSTI certified




Compliance certificates

CE, Federal Communications Commission (FCC), RoHS


Weight & dimensions


Width

The measurement or extent of something from side to side.

95 mm


Depth

The distance from the front to the back of something.

296 mm


Height

The measurement of the product from head to foot or from base to top.

330 mm


Package width

The distance from one side of the packaging to the other.

561 mm


Package depth

The distance from the front to the back of the packaging.

234 mm


Package height

The distance from the top to the bottom of the packaging.

402 mm


Packaging content


Mouse included

A mouse is included with this product.




Keyboard included

A keyboard is part of the bundle/set.




Keyboard backlit




Numeric keypad

Small, palm-sized, seventeen key section of a computer keyboard, usually on the very far right. The numeric keypad features digits 0 to 9, addition (+), subtraction (-), multiplication (*) and division (/) symbols, a decimal point (.) and Num Lock and Enter keys. Laptop keyboards often do not have a numpad, but may provide numpad input by holding a modifier key (typically labelled "Fn") and operating keys on the standard keyboard.




Cables included

AC


VESA mount included




Screws included




Manual




Display


Display included

This product includes a display.




Technical details


Not classified as hazardous under GHS




Other features


Video compression formats

H.264, H.265


TV tuner integrated

Device has an in-built TV tuner.




Built-in microphone

Microphone that is found inside the product.




Locale

English


Warranty period

3 year(s)
