Neomounts AV30-500BL Mounting Hardware Kit AV30-500BL

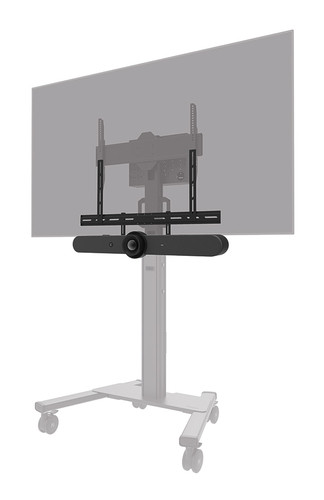

Neomounts AV30-500BL Mounting Hardware Kit The Neomounts AV30-500BL is a universal videobar kit designed for displays from 43" and larger, with VESA hole patterns ranging from 200x200 up to 800x600 mm. Built for durability and versatility, the kit supports devices up to 10 kg and can be installed either above or below the screen. Both the videobar support and the backplate brackets are height-adjustable for maximum flexibility. Compatible with most videobars*, PTZ cameras, and soundbars, including Logitech Rally speakers, the AV30-500BL ensures broad applicability. The mounting holes allow width and height variation, while the VESA frame adjusts in both height and width (200/400/600/800). The kit can be used on wall, floor, desk, or ceiling mounts. Despite its versatility, installation is straightforward, aided by ruler-guided alignment for a seamless fit.
Miscellaneous

Additional Information
General
Min. screen size: 43 inch
Max. screen size: 110 inch
VESA pattern: 200x200, 200x300, 200x400, 400x200, 400x300, 400x400, 400x500, 400x600, 600x200, 600x300, 600x400, 600x500, 600x600, 800x200, 800x400, 800x450, 800x500, 800x600, 800x800 mm
VESA minimum: 200x200 mm
VESA maximum: 800x600 mm

Functionality
Adjustment type: Manual

Compatibility
Neomounts:Bose Professional VB1 and VB-S
Neat Bar (gen 1, gen 2) and Bar Pro
Poly Studio USB, Studio R30/X30/X32, Studio X50/X52/V52, Studio X70/X72/V72 and Studio V12
Jabra Panacast 50/40
Logitech Meetup, Meetup 2, Rally Bar, Rally Bar Mini, Rally Bar Huddle and Rally Plus
Cisco Webex Room Kit Plus
Yealink MSpeaker II, MeetingBar A30/A40/A50, UVC20/UVC30 Room/UVC34/UVC40 and MeetingEye 400/600
AVer VB350 and VB370A
Barco ClickShare Bar (Pro)
Maxhub Xbar U50/V50/W70 and UC S05/S07/S10/S10 Pro/S15
Predia Connect Camera
Biamp Parl?- ABC 2500(a), VBC 2500(a)/2800 and SBC 2
Lenovo ThinkSmart One

Form FactorCeiling Mountable
Floor
Wall Mountable

General Information

Product TypeMounting Hardware Kit
Manufacturer Part NumberAV30-500BL
neomounts /
ManufacturerNeomounts
Product ModelAV30-500BL
Product NameVideobar kit 43-110" - VESA - max 10 kg - Universal
Brand NameNeomounts

Physical Characteristics

DimensionsHeight adjustment: 0-5,5 cm
Height: 55,5 cm
Width: 90 cm
Depth: 19,3 cm

Material DetailsMain material: Steel

Weight (Approximate)Max. weight: 10 kg

VESA Mount CompatibleYes
Color DetailsColor: Black

Mount SurfaceFloor
Ceiling
Wall


Technical Information

Recommended UsageWall Mount
Video Bar
Soundbar
PTZ Camera
Floor
Display
Desk
Wall
