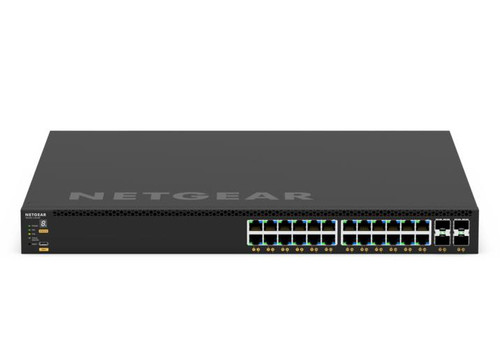

Netgear Av Line M4350 M4350-24G4Xf 24 Ports Manageable Ethernet Switch 10 Gigabi GSM4328-100NES

Netgear AV Line M4350 M4350-24G4XF 24 Ports Manageable Ethernet Switch - 10 Gigabit Ethernet, Gigabit Ethernet - 10GBase-X, 10/100/1000Base-T - 3 Layer Supported - Modular - 240 W Power Consumption - 648 W PoE Budget - Optical Fiber, Twisted Pair - PoE Ports - 1U - Rack-mountable, Table Top Introducing the NETGEAR AV and IT M4350 Switches, engineered and certified for audio/video over IP with dedicated service and support. The M4350 brings all the simplicity from the M4250 AV Line packed in more Enterprise-class hardware with redundant power supplies and larger fabrics with 25G and 100G uplinks. The revolutionary NETGEAR AV user interface and Engage--- Controller contain pre-configured profiles for all major audio, video, and lighting protocols. NETGEAR listens to and supports the Pro AV community IGMP Plus--- means AV-over-IP multicasting will work out of the box and not flood your network Auto-LAG and Auto-Trunk automatically configure the uplinks between multiple switches The Engage--- Controller manages all M4250, M4300, and M4350 switches for your AV installations NETGEAR ProAVDesign team tohelp with system design andimplementation toensure theproject will work AVB, Dante, Q-SYS, AES67, NVX, AMX, Q-SYS, NDI 4, NDI 5, ZeeVee, Aurora Multimedia, Kramer, Atlona, LibAV, Visionary, SDVoE, and many others! SMPTE ST 2110 supported on select models, always with the same simplicity from the AV UI Enterprise-class hardware From 1G to 2.5G, to 10G, to 25G, to 100G always within 40cm (15.7in) depth Controlled thermal and acoustics (intelligent fans configurable in Quiet Mode to minimize noise, or Cool Mode to minimize heat) Other IT use cases Edge to core stackable platform, from 1 Gigabit to 100 Gigabit for midsize organizations Non-stop forwarding (NSF) provides advanced High Availability (HA) with hitless failover across the stack Industry standard management Industry standard command line interface (CLI), main NETGEAR IT web interface (GUI) SNMP, sFlow and RSPAN - the entire feature set is available without license Industry leading warranty NETGEAR M4350 series is covered under NETGEAR ProSAFE Limited Lifetime Hardware Warranty 90 days of Technical Support via phone and email, Lifetime Technical Support through online chat and Lifetime Next Business Day hardware replacement
Management & Protocols

ManageableYes

I/O Expansions

Expansion Slot TypeSFP+
Number of SFP+ Slots4
Total Number of Expansion Slots4.0

Miscellaneous

Application/UsageVoIP Phone
Network
Business
Enterprise
IP Phone

Interfaces/Ports

Network (RJ-45)Yes
ModularYes
Uplink PortYes
Total Number of Network Ports24
Port/Expansion Slot Details4 x 10 Gigabit Ethernet Expansion Slots
24 x Gigabit Ethernet PoE+

Media & Performance

Network Technology10GBase-X /100/1000Base-T
Ethernet TechnologyGigabit Ethernet Gigabit Ethernet
Media Type SupportedOptical Fiber
Twisted Pair

Power Description

Input Voltage230 V AC 0 V AC
Power SourcePoE+
Power Supply
AC
Frequency60 Hz
50 Hz
Power Consumption240 W
Plug/Connector TypeC14
Number of Power Supplies Supported2
Number of Power Supplies Installed1
PoE (RJ-45) PortYes
Redundant Power Supply SupportedYes
PoE Budget648 W


Physical Characteristics

Weight (Approximate)6.41 kg
Form FactorRack-mountable
Table Top
Height432 mm
Width4400 mm
Depth400 mm
Compatible Rack Unit1U

General Information

Product TypeEthernet Switch
Manufacturer Part NumberGSM4328100NES
Manufacturer Website Address netgear.co.uk
ManufacturerNetgear, Inc
Product ModelM4350-24G4XF
Product NameAV Line M4350-24G4XF Ethernet Switch
Product LineAV Line
Product SeriesM4350
Brand NameNetgear

Network & Communication

Layer Supported3
Networking StandardsIEEE 802.1as
IEEE 802.1AX
IEEE 802.1BA
IEEE 802.1p
IEEE 802.1Q
IEEE 802.1Qat
IEEE 802.1Qav
IEEE 802.1s
IEEE 802.1w
IEEE 802.3ad
IEEE 802.3af
IEEE 802.3at
IEEE 802.3az
IEEE 802.3bt
IEEE 802.1ak
