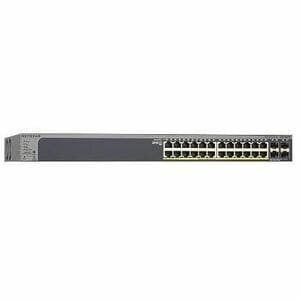

Netgear Gs728Tp. Switch Type: Managed Switch Layer: L2/L3/L4. Basic Switching Rj GS728TP-300EUS

NETGEAR GS728TP. Switch type: Managed, Switch layer: L2/L3/L4. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Installed SFP modules quantity: 4. MAC address table: 16000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x. Power over Ethernet (PoE). Rack mounting All ports PoE+ with up to 760W PoE budget and Remote/Cloud Management option - Select your new network engine! As a leading provider of network equipment for SMBs, NETGEAR?- understands the importance of providing a great choice of PoE port counts and power budgets that can adapt to your business' needs, whether in the hospitality, catering, education or retail domains. The GS728TP, GS728TPP, GS752TP and GS752TPP Gigabit Ethernet Switches with PoE+ and 4 SFP Ports join the NETGEAR standalone Smart switches family, adding full 24 and 48 port PoE+ support for deployment of modern high-power PoE devices. Cautious spender organizations can now deploy denser PoE+ devices connected to a cost-effective switch, with a reasonable PoE power budget of 190W over 24-port, or 380W over 48-port. Organizations who buy infrastructure for the long term and want future proofing for the unforeseeable can now select a switch with a PoE power budget of 380W over 24-port, or 760W over 48-port providing more headroom. Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise: the GS728TP supports quiet rack mounting operation with a maximum of 26.80dBA even at full PoE power with traffic on all ports and 25??C (77??F) ambient. Following the same measurements, the GS728TPP is rated at 33.30dBA, the GS752TP at 36.60dB and the GS752TPP at 39.30dBA. Highlights The NETGEAR PoE+ Gigabit Smart switches with Remote/Cloud Management provides a great value, with configurable L2 network features like VLANs and PoE operation scheduling, allowing SMB customers to deploy PoEbased VoIP phones, IP cameras, videoover-IP endpoints and Wireless access points simply and securely. Advanced features such as IPv4/IPv6 Layer 3 static routing, LACP link aggregation, DiffServ QoS, Private VLANs, Multicast VLAN Registration and Spanning Tree will satisfy even the most advanced small business networks. include: Quiet rack mounting operation with 26.80 to 39.30dBA at 25??C (77??F) ambient Layer 3 static routing with 32 routes (IPv4 and IPv6) for interVLAN local routing Advanced VLAN and Private VLAN support for better network segmentation L2/L3/L4 access control lists (ACLs) for granular network access control including 802.1x port authentication Advanced per port PoE controls for remote power management of PoE connected devices including operation scheduling (e.g. Wireless APs, IP security cameras, LED lighting, secure access door locks, IoT devices...) Advanced QoS (Quality of Service) for traffic prioritization including port-based, 802.1p and L2/L3/L4 DSCP-based Auto "denial-of-service" (DoS) prevention IGMP Snooping and Querier for multicast optimization Multicast VLAN Registration (MVR) for larger L2 multicast networks and AV over IP deployment Dynamic ARP for increased security targeting a class of Man in the Middle attack
Management & Protocols

ManageableYes

Reliability

MTBF1751613 Hour

I/O Expansions

Expansion Slot TypeSFP
Number of SFP Slots4
Total Number of Expansion Slots4

Interfaces/Ports

Uplink PortYes
Total Number of Network Ports24
Port/Expansion Slot Details24 x Gigabit Ethernet PoE+
4 x Gigabit Ethernet Expansion Slot

Power Description

Power SourcePower Supply
Power Consumption226 W
PoE (RJ-45) PortYes
PoE Budget190 W

Network & Communication

Layer Supported4
Networking StandardsIEEE 802.1s
IEEE 802.1w
IEEE 802.1x
IEEE 802.3
IEEE 802.3ab
IEEE 802.3ad
IEEE 802.3af
IEEE 802.3at
IEEE 802.3az
IEEE 802.3u
IEEE 802.3x
IEEE 802.3z
IEEE 802.1ab
IEEE 802.1D
IEEE 802.1p
IEEE 802.1Q


Media & Performance

Network Technology1000Base-X /100/1000Base-T
Ethernet TechnologyGigabit Ethernet
Media Type SupportedOptical Fiber
Twisted Pair

Physical Characteristics

Weight (Approximate)3.78 kg
Form FactorRack-mountable
Height43.2 mm
Width440 mm
Depth257 mm

General Information

Product TypeEthernet Switch
Manufacturer Part NumberGS728TP300EUS
netgear.co.uk
ManufacturerNetgear, Inc
Product ModelGS728TP
Product NameBusiness GS728TP Ethernet Switch
Product LineBusiness
Brand NameNetgear

Miscellaneous

Application/UsageWireless Access Point
VoIP Phone
Server
Business
IoT Devices
IP Camera
Network
Router
Security
Security Camera
Package ContentsBusiness GS728TP Ethernet Switch
AC Power Cord With C13 Connector
Brackets And Screws For Rack Mounting
Rubber Footpads For Tabletop Installation
Rubber Protection Caps, Which Are Already Installed In The SFP Sockets
Installation Guide
