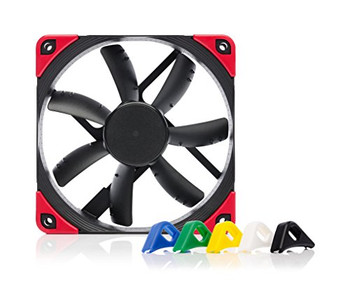

Noctua NF-S12A PWM NF-S12A PWM Fan - 120mm NF-S12A PWM

The NF-S12A marks the third generation of Noctua�s signature S12 series quiet case fans, which have received more than 250 awards and recommendations from the international press. Featuring a further refined blade design with Anti-Stall Knobs that works in tandem with the new AAO (Advanced Acoustic Optimisation) frame, the NF-S12A improves the airflow/noise efficiency of its renowned predecessor by up to 8%. The PWM version sports Noctua�s custom designed NE-FD1 IC for fully automatic speed control via 4-pin fan headers and comes with a Low-Noise-Adaptor to reduce the maximum speed during PWM control from 1200 to 900rpm. Its superb running smoothness, SSO2 bearing and Noctua�s trusted premium quality make it an elite choice for quiet case cooling.

Design



Number of fans



1 fan(s)


Product colour



Beige, Brown


Other features



Connector(s)



4-pin


Harmonized System (HS) code



84733080


Speed detection



Yes


Package dimensions



Gross Weight (Package, kg)



0.5 kg


Performance



Airflow



107.5 m�/hr


Compatible processor series



Not supported


Fan diameter



12 cm


Maximum air pressure



1.19 mmH2O


Mean time between failures (MTBF)



150000 Hour


Minimum air pressure



0.73 mmH2O


Noise level (high speed)



17.8 dB


Noise level (low speed)



10.7 dB


Number of speeds



3


Rotational speed (max)



1200 RPM


Rotational speed (min)



300 RPM


Speed detection



Yes


Suitable for



Computer case


Suitable location



Computer case


Supported processor sockets



Not supported


Type



Fan


Power



Maximum current



0.12 A


Power supply



1.44 Watt


Voltage



12 V


Product dimensions



Net Weight (Product, kg)



0.2 kg


Product Depth



2.5 cm


Product Height



12 cm


Product Width



12 cm


Technical details



Bearing technology



SSO2


Vendor information



Brand Name


Noctua


Warranty



1 Year(s)


Weight & dimensions



Cable length



0.3 m
