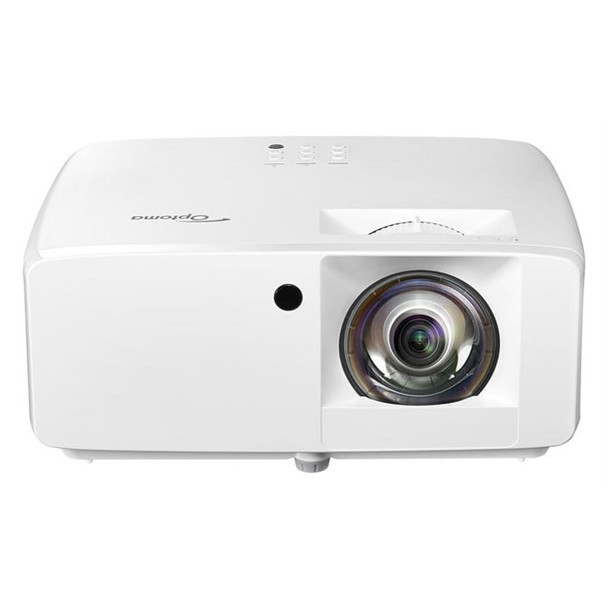

Optoma ZW350ST data projector Short throw projector 3600 ANSI lumens DLP WXGA 12 E9PD7KK41EZ1

Ultra-compact high brightness laser projector

The ZW350ST is one of Optoma's most compact, hassle free WXGA DuraCore laser projectors to date. This 3600-lumen projector is built for maintenance-free continuous operation up to 30,000 hours, while its small and lightweight footprint makes it smaller than the previous generation, offering flexible installation in virtually any orientation and location.

Designed with the environment in mind, the ZW350ST cuts power consumption compared to a typical lamp-based Optoma projector. In addition, laser technology maintains brightness and colour saturation for longer, ensuring excellent image quality and a long product lifespan without the need for routine lamp changes. Optoma has minimized the size of the projector to cut logistical impacts on the environment, lowering CO2 levels and reducing our overall carbon footprint. This projector is also part of a line of products from Optoma with packaging made from recycled and reusable materials.

Geared for meeting rooms, medium-sized exhibition venues, events or tradeshows, the ZW350ST has a short throw lens meaning it can be positioned less than half a metre from any wall. This feature-packed projector has a built-in speaker and for ultimate convenience it comes with an RS232 connection for monitoring and controlling.

Designed for the future

We are committed to reducing the overall environmental footprint of our products so we can do right by the planet.

Designing innovative products with sustainability in mind considers every phase of a product's lifecycle, from design, manufacturing, logistics, and usage, to packaging.

Energy-saving technology

Reduce power consumption by up to 47% compared to lamp-based solutions.

Reduced carbon footprint

Compact products made with fewer materials to minimise logistical environmental impact.

Eco-friendly packaging

Packaging made from recycled and reusable materials.

Lights on viewing

This versatile projector combines high brightness and vivid colours for vibrant, true-to-life visuals in any environment*. Make a lasting impression with bigger and bolder presentations any time of day.

Laser technology

Optoma laser projectors use high-quality lasers to create the projected image. In many situations the perceived brightness from laser illumination projectors can be twice that of an equivalent lamp-based model. They also deliver increased efficiency to maintain consistent brightness, superior colour performance, instant on/off and an extraordinary life span of up to 30,000 hours.

DuraCore

Industry leading lifetime is achieved using Optoma-s DuraCore technology. Implementing advanced laser diode cooling techniques and an innovative dust resistant design.

Short Throw

With a short throw lens, you can project an impressive 100- image from just over a metre away. This allows you to place the projector closer to the wall, reducing shadows so you can present with ease.

Full HD 1080p
80p resolution gives you sharp and detailed images from HD content without downscaling or compression; perfect for watching Blu-ray movies, HD broadcasting and playing video games.

HDR and HLG compatible

Capable of receiving and displaying both HDR10 and Hybrid Log Gamma (HLG) HDR content. This Optoma projector allows you to see far more detail and texture. Objects look more solid and lifelike and the extra detail creates a greater sense of depth.

Amazing colours

Give powerful presentations and educational lessons with stunning colours. Optoma projectors provide reliable colour performance suitable for any content and environment. From accurate sRGB colours for lifelike images to vibrant punchy presentations. We have a display mode to specific meet your needs. Perfect for a range of graphic and video presentations.

Control

Featuring a wide range of options you can control and monitor the projector remotely.

- RS232
Optoma projector-s come with an extensive set of RS232 commands making it simple and easy to manage using any control system.

- AMX compatible
Dynamic discovery protocol is incorporated into the projector allowing for easy installation with AMX control systems.

- Crestron RoomView
Using the compatible RoomView- software you can power on/off, monitor, manage and control up to 250 projectors at the same time from any computer

360 projection

Images can be projected over a 360? range* along the projector-s horizontal axis.

24/7 operation

Optoma projectors have been designed to operate 24 hours a day in standard orientation. Perfect for applications where prolonged periods of use is required. Subject to 24 hour terms and conditions.

24/7 Operation - standard lamp warranty applies. Projector warranty is based on standard business usage hours. For optimum performance Optoma recommends that your projector is turned off or placed in standby mode for 30 minutes every 24 hours to prolonging the life of your lamp.

Auto power off

There may be instances when the projector is left running when not in use. To help save energy, the "auto power off" feature automatically turns off the projector after a set period of time if it is not being used

Integrated speaker

Complete your home entertainment experience with the convenience of a powerful built-in speaker for exceptional sound quality and an easy set up without the need for costly external speakers.

USB-Power

Use the USB-A port to power an HDMI dongle, such as Google Chromecast.

Specs




Projector


Supported aspect ratios

The aspect ratio is the ratio of the width of an image to its height. The supported aspect ratios are the aspect ratios that can be shown by the device.

4:3, 16:10, 16:9


Smart projector




Screen size compatibility

The different screen sizes which the device can work with.

762 - 7620 mm (30 - 300")


Projection distance

The maximum length at which an image can be projected.

0.3 - 3.4 m


Projector brightness

3600 ANSI lumens


Projection technology

DLP


Projector native resolution

WXGA (1280x800)


Contrast ratio (typical)

The difference in light intensity between the brightest white and the darkest black.

300000:1


Native aspect ratio

The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio.
:9


Number of colours

1.073 billion colours


Uniformity

Defines in percentage the harmonious spread of the projection

75%


Horizontal scan range
- 140 kHz


Vertical scan range

24 - 120 Hz


Keystone correction, vertical

-40 - 40?


Light source


Light source type

Lamp


Service life of light source

30000 h


Lens system


Fixed focal length

7.51 mm


Zoom capability

The amount that the camera lens can zoom.




Zoom type

Manual


Throw ratio

0.521:1


Offset
5%


Video


Analog signal format system

The supported protocols for exchanging analog signals.

NTSC, NTSC 3.58, NTSC 4.43, NTSC J, NTSC M, PAL, PAL 4.43, PAL B, PAL D, PAL G, PAL H, PAL I, PAL L, PAL M, SECAM, SECAM 4.25/4.4, SECAM B, SECAM D, SECAM G, SECAM K, SECAM K1, SECAM L


Full HD

Full High Definition (HD) means that a display supports a resolution of 1920 x 1080 pixel, and has a digital TV connection.




3D

The device can be used with 3D technology.




Supported 3D formats

Frame Sequential


Supported video modes

The video modes that can be displayed by the device.

480i, 480p, 576i, 576p, 1080i, 1080p


Ports & interfaces


HDMI connector type

Full-size


HDMI version

1.4a


USB 2.0 ports quantity

Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.

1


Headphone outputs

Number of sockets /ports where headphones are connected.

1


Serial interface type

RJ-45, RS-232


HDMI ports quantity

The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.

1


DVI port

Digital Visual Interface (DVI) is a video display interface to connect a video source to a display device, such as a computer monitor.




Network


Smart TV

Smart TV features access to a large number of channels that offer TV programs, movies, and music without the need to connect a TV antenna or subscribe to a cable/satellite service. Some smart TVs provide web browsing, gaming, and access to compatible media content stored on computers.




Ethernet LAN

An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.




Storage


Card reader integrated

A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.





Features


On Screen Display (OSD)




On Screen Display (OSD) languages

Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Swedish, Turkish


Number of OSD languages

25


Noise level

The amplitude level of the undesired background noise, usually measured in decibels (db).

32 dB


Password protection

The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure.




Certification

IP6X


Multimedia


Built-in speaker(s)

The device contains speaker(s) to produce sound.




RMS rated power

RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers.
W


Number of built-in speakers

1


Design


Market positioning

Under which category can the device be positioned in the market, e.g. camera phone.

Business


Product type

The sub-category of the product.

Short throw projector


Product colour

The colour e.g. red, blue, green, black, white.

White


Placement

Where the product can be placed e.g. floor, wall.

Desktop


Cable lock slot

Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.




Cable lock slot type

Kensington


Power


Power source

What is providing power for the product e.g. mains electricity.

AC


Power consumption (typical)

Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.

98 W


Power consumption (standby)

The amount of electricity that is consumed when the product is on standby.

0.5 W


Power consumption (max)

The maximum amount of power used by the device.
9 W


AC input voltage

The voltage of the AC electricity that is inputted into the product.
0 - 240 V


AC input frequency

50 / 60 Hz


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 40 ?C


Operating altitude

0 - 2500 m


Weight & dimensions


Width

The measurement or extent of something from side to side.

274 mm


Depth

The distance from the front to the back of something.

216 mm


Height

The measurement of the product from head to foot or from base to top.
4 mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

3 kg


Package weight

Weight of the packaged product.

4.2 kg


Packaging content


Remote control included

Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance.




Remote control type

IR


Batteries included




Cables included

AC


Manual
