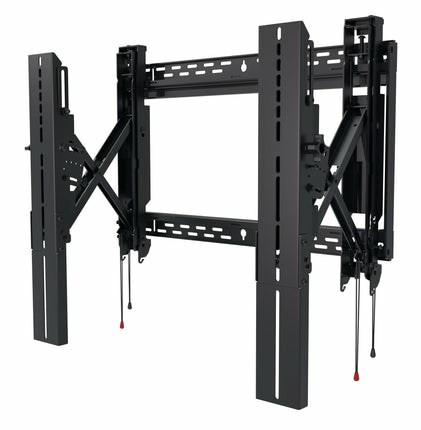

Peerless STS650 signage display mount STS650

Peerless-AV-s SmartMount- Universal Scissor Wall Mount is the optimal mounting solution for UC/VC applications and recessed walls as the STS650 allows for convenient access to components stored behind the display. The STS650-s extendable adaptors allow the display to be pulled 12" (305 mm) from the wall to easily access the back of the display, and can be locked into place when the installation or maintenance is completed. Installation of the display is a breeze with the Hook-and-Hang- feature, and the mount-s open access design provides the maximum open area on the wall to allow flexible placement for outlets and/or in-wall boxes. Post-installation leveling and side-to-side adjustability features allow for fine tuning of the mounted display for the perfect position in any corporate conference room, digital signage application or hospitality setting.

This display size range is simply a guideline for product selection. Displays larger than the screen size range may still be compatible as long as they fall within the VESA- pattern and max weight of the Peerless-AV- product.

Specs




Mounting


Maximum weight capacity

The maximum weight that the product is designed to hold/store.

90.7 kg


Minimum screen size

The minimum screen size which can be used with this product.

99.1 cm (39")


Number of displays supported

The number of displays that can be used with this product.

1


Maximum screen size

The maximum screen size which can be used with this product.

2.16 m (85")


Mounting type

Type of mounting e.g. wall mounting.

Wall


Minimum VESA mount
0 x 100 mm


Maximum VESA mount

600 x 400 mm


Panel mounting interface

The product can be used wih VESA mounting interfaces.
0 x 100, 600 x 400 mm


Ergonomics


Tilt angle range

-2 - 15-


Tilt adjustment

The tilt, which means the angle at which the device is pointing (up or down), can be changed.




Design


Product colour

The colour e.g. red, blue, green, black, white.

Black


Weight & dimensions


Width

The measurement or extent of something from side to side.

732 mm


Depth

The distance from the front to the back of something.

97 mm



Weight & dimensions


Height

The measurement of the product from head to foot or from base to top.

683 mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
.1 kg


Packaging data


Package width

The distance from one side of the packaging to the other.

464 mm


Package depth

The distance from the front to the back of the packaging.

829 mm


Package height

The distance from the top to the bottom of the packaging.
4 mm


Package weight

Weight of the packaged product.
.1 kg


Packaging content


Manual




Mounting kit




Packaging content

Wall Mount, Wall and Display Installation Hardware, Installation Instruction


Technical details


Compliance certificates

RoHS, Trade Agreements Act (TAA), cULus


Other features


Depth adjustment range

97 - 305 mm
