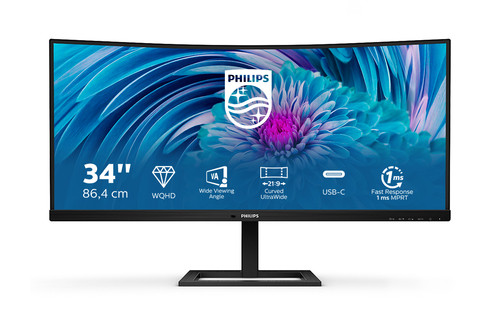

Philips E Line 346E2CUAE/00. Display Diagonal: 86.4 Cm 34" Display Resolution: 3 346E2CUAE/00

Philips E Line 346E2CUAE/00. Display diagonal: 86.4 cm (34"), Display resolution: 3440 x 1440 pixels, HD type: Wide Quad HD+, Display technology: LCD, Display surface: Matt, Response time: 4 ms, Native aspect ratio: 21:9, Viewing angle, horizontal: 178??, Viewing angle, vertical: 178??. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black Mega Infinity DCR
Design

Product colourBlack

General Information

Marketing InformationThe Philips E line curved UltraWide display offers expansive panoramic visuals. A WQHD display with an ergonomic stand make for optimal viewing conditions. All-in-one USB-C and MultiView meet the need for productivity.

Logistics data

Harmonized System (HS) code85285210

Sustainability

Doesn't containMercury, PVC/BFR

Packaging content

Cables includedUSB Type-C to USB Type-C, AC
ManualYes
Stand includedYes

Multimedia

RMS rated power5 W
Built-in speaker(s)Yes
Built-in cameraNo
Number of speakers2

Packaging data

Package weight13.1 kg
Package depth224 mm
Package height500 mm
Package width980 mm

Operational conditions

Operating altitude0 - 3658 m
Operating relative humidity (H-H)20 - 80%
Storage temperature (T-T)-20 - 60 ??C
Operating temperature (T-T)0 - 40 ??C
Non-operating altitude0 - 12192 m

Performance

NVIDIA G-SYNCNo
AMD FreeSyncYes
Flicker-free technologyYes
Low Blue Light technologyYes
Component video syncSeparate sync
AMD FreeSync typeFreeSync Premium

Weight & dimensions

Width (with stand)807 mm
Height (with stand)495 mm
Depth (with stand)257 mm
Weight (without stand)7.83 kg
Height (without stand)367 mm
Width (without stand)807 mm
Depth (without stand)110 mm
Weight (with stand)10.1 kg

Display

Pixel pitch0.23175 x 0.23175 mm
Contrast ratio (typical)3000:1
Horizontal scan range30 - 160 kHz
Viewing angle, horizontal178??
Viewing angle, vertical178??
Aspect ratio21:9
Vertical scan range48 - 100 Hz
Viewable size, horizontal79.7 cm
Viewable size, vertical33.4 cm
Display diagonal86.4 cm (34")
Response time4 ms
Display resolution3440 x 1440 pixels
Digital horizontal frequency30 - 160 kHz
Digital vertical frequency48 - 120 Hz
Display diagonal (metric)86.36 cm
TouchscreenNo
Display sRGBYes
Backlight typeW-LED
Maximum refresh rate100 Hz
Display technologyLCD
Anti-glare screenYes
Native aspect ratio21:9
HD typeWide Quad HD+
Pixel density110 ppi
Panel typeVA
Display surfaceMatt
Screen shapeCurved
DDC/CIYes
Display number of colours16.7 million colours
Surface hardness3H
Haze rate25%
sRGB coverage (typical)121.3%
NTSC coverage (typical)99.5%
Response time (fast)1 ms
Display brightness (peak)350 cd/m??
Display brightness (typical)300 cd/m??
Screen curvature rating1500R


Power

Power consumption (typical)41.6 W
Power supply typeInternal
Power consumption (off)0.3 W
Power consumption (standby)0.5 W
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Energy efficiency scaleA to G
Energy efficiency class (SDR)F
Energy consumption (SDR) per 1000 hours31 kWh
European Product Registry for Energy Labelling (EPREL) code380385

Other features

CertificationcETLus, CB, TUV/GS, TUV Ergo, CU-EAC, EAEU RoHS, CE Mark, FCC Class B, ICES-003, UKRAINIAN
Mean time between failures (MTBF)50000 h
Picture enhancementSmartImage game
Heavy metals freeHg (mercury), Pb (lead)
Recyclable packaging material100%
Regulatory ApprovalscETLus; CB; TUV/GS; TUV Ergo; CU-EAC; EAEU RoHS; CE Mark; FCC Class B; ICES-003; UKRAINIAN
MultiViewPIP/PBP mode, 2 x devices
LowBlue modeYes
EasyRead modeYes
Exterior finish typeTextured
Picture-by-Picture (PbP)Yes
USB Power Delivery revision3.0
Compliance certificatesRoHS

Ergonomics

Plug and PlayYes
Cable lock slotYes
LED indicatorsOperation, Stand-by
Height adjustmentYes
Tilt angle range-5 - 20??
On Screen Display (OSD)Yes
Picture-in-PictureYes
Panel mounting interface100 x 100 mm
On Screen Display (OSD) languagesSimplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian
Number of OSD languages21
Tilt adjustmentYes
Cable lock slot typeKensington
VESA mountingYes
Adjustable height (max)10 cm

Ports & interfaces

Audio inputNo
Audio outputYes
DC-in jackYes
DVI portNo
VGA (D-Sub) ports quantity0
HDMI ports quantity1
HDMI version2.0
HDMIYes
DisplayPorts quantity1
DisplayPort version1.2
Headphone outNo
Built-in USB hubYes
USB hub version3.2 Gen 1 (3.1 Gen 1)
USB upstream port typeUSB Type-C
USB Type-A downstream ports quantity4
USB Type-C downstream ports quantity1
USB Type-C DisplayPort Alternate ModeYes
USB Power Delivery (USB PD)Yes
USB Power Delivery up to65 W
Number of USB Type-B upstream ports quantity1
