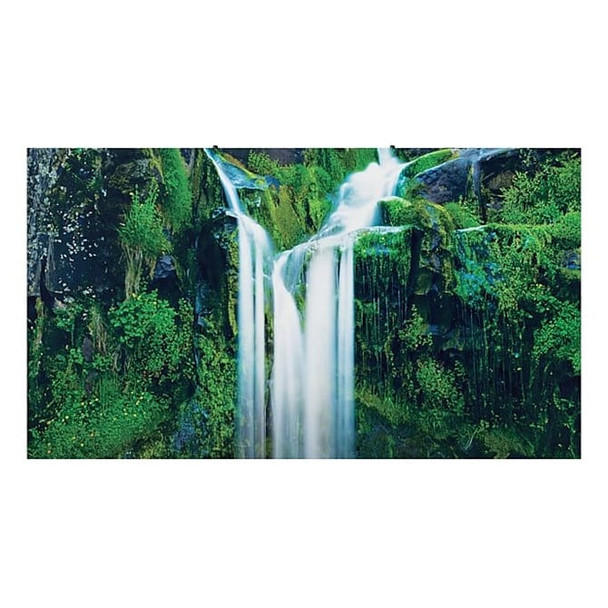

Samsung IW016C LED Indoor LH016IWCMWS/XU

The Wall. Make a bold statement.
Make a bold statement with The Wall. Samsung’s rich R&D heritage and LED expertise culminates in The Wall, designed to deliver the ultimate viewing experience. Create immersive experiences and help deliver an accurate view of your business.

An abyss of depth
Black Seal Technology+
Black Seal Technology+ takes you further into the darkness1. A deep black background blankets the screen with impressive uniformity, creating a virtually seamless canvas for black levels with incredible depth for immaculate contrast and detail.

Incredible colour purity
Ultra Chroma Technology
Ultra Chroma Technology expresses a canvas of lifelike colours with astounding clarity and vibrancy. Narrow wavelengths help produce unbelievably pure colours as if you were there in real life.

Colours mapped for stunning clarity bit Processing
The Wall’s 20bit processing presents colour mapping with impressive accuracy. Deeper bit depth at low greyscale also delivers extraordinary contrast ratio and smooth, natural tonal gradients.

Continuous natural shading
Linear Greyscale
A precise linear greyscale showcases intricacies in scenes, delivering realistic textures, volume and shades. The smooth continuity helps immerse you in the content on screen.

AI optimisation
MICRO AI Processor2
Content is analysed and optimised for breathtaking picture quality. The powerful AI processor helps deliver sharp visuals in sizes up to 8K resolution, with striking contrast and minimal noise.

Dazzling dynamic range
MICRO HDR
Reimagine the limits of LED technology with advanced picture refinement- HDR10/10+ and LED HDR- to illuminate ideal peak brightness and contrast in scenes for precise, stunning imagery.

Smooth, virtually seamless motion
MICRO Motion3
The Wall automatically converts 60Hz signals to 120Hz, helping remove motion judder in fast-paced action scenes for smooth streams and a virtually seamless viewing experience.

Installation reimagined
Factory Seam Adjustment
Installation is transformed by eliminating module-by-module seam adjustment. Now installers can adjust by cabinet, helping save time while improving mechanical quality for immersive viewing.

Certified protection, maximum comfort
TÜV Rheinland Eye Comfort and EMC Class B Certification
Keep eyes comfortable and safe with TÜV Rheinland Eye Comfort Certification4, which minimises harmful blue light, while EMC Class B certification minimises electromagnetic waves for advanced protection.

Powerful playback with just one box
Simple 8K Playback
The Wall enables 8K content playback with just one S-Box5, as well as 16K content playback horizontally with the new and improved S-Box performance, delivering more pixels with enhanced precision.

Simultaneous source experience
Multi View
With Multi View, The Wall enables simultaneous multi-source playback from up to four sources, all on one screen, without additional splitters required for dynamic content display.

Specs




Display


Display technology

The technology used in the display e.g. plasma, LED.

MicroLED


Display resolution

The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image.

480 x 270 pixels


LED backlight

A backlight is a form of illumination used in liquid crystal displays (LCDs). One type of backlight is made by LEDs, which can be either white or RGB (red green blue). White LEDs are used most often in notebooks and desktop screens, and in virtually all mobile LCD screens. RGB LEDs for backlighting are found in high-end color proofing displays such as HP DreamColor LP2480zx monitor or selected HP EliteBook notebooks, as well as newer consumer grade displays such as Dell's Studio series laptops which have an optional RGB LED display.




Pixel pitch

This is the parameter of a picture tube, which specifies the shortest distance between two dots of the same colour. The principle is: the smaller the dot pitch, the better sharpness of image.

1.68 x 1.68 mm


Display brightness

Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'.
00 cd/m²


Contrast ratio (typical)

The difference in light intensity between the brightest white and the darkest black.

36000:1


Native refresh rate

3840 Hz


Display refresh rates supported

50 Hz, 60 Hz, 120 Hz


High Dynamic Range (HDR) supported




High Dynamic Range (HDR) technology

High Dynamic Range 10 (HDR10), High Dynamic Range 10+ (HDR10 Plus), Micro HDR


Viewing angle, horizontal

Maximum horizontal angle at which a display can be viewed with acceptable visual performance.
0°


Viewing angle, vertical

Maximum vertical angle at which a display can be viewed with acceptable visual performance.
5°



Design


Placement supported

Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.

Indoor


Orientation

Horizontal/Vertical


Easily replaceable modular parts




Product colour

The colour e.g. red, blue, green, black, white.

Black


Power


Power consumption (max)

The maximum amount of power used by the device.

446 W


AC input voltage

The voltage of the AC electricity that is inputted into the product.
0 - 240 V


AC input frequency

50/60 Hz


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 40 °C


Operating relative humidity (H-H)
- 80%


Sustainability


Certification

62368-1, 60950-1, EMC Class B
