Startech 12In Latching Sata To Right Angle Sata Serial Ata Cable Sata Cable Seri LSATA12RA1

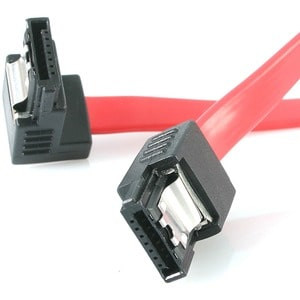

StarTech 12in Latching SATA to Right Angle SATA Serial ATA Cable - SATA cable - Serial ATA 150/300 - SATA (F) to SATA (F) - 1 ft - latched - right-angled connector - red - for P/N: PEXSAT31E1 - PEXSAT32 This 12in right-angled latching SATA cable features a (straight) female Serial ATA connector as well as a right-angled (female) SATA connector, providing a simple connection to a Serial ATA drive even if space near the drive's SATA port is limited. The cable offers latching connectors, which ensure secure connections for SATA hard drives and motherboards that support this feature. Once the right-angled SATA connector has been inserted into the drive's SATA data port, the shaft of the cable is seated flush with the rear panel of the drive, eliminating the clutter of excess cable at the connection point - an ideal solution for small or micro form factor computer cases. The right angled SATA cable supports high speed data transfers up to 6Gbps, and features a thin, narrow construction that helps to improve airflow within the computer case; the cable features a rugged, yet flexible design that makes it easy to make the SATA connection as needed, and is backed by StarTech's Lifetime Warranty. More from the Manufacturer More from the Manufacturer
Physical Characteristics

Weight (Approximate)8.5 g
Shipping Height7.11 mm
Shipping Width124.97 mm
Product ColorRed
Color FamilyRed

Technical Information

Cable Length30.48 cm
ConductorCopper
Data Transfer Rate6 Gbit/s
Device SupportedHard Drive
Motherboard
Network Device
FeaturesLatching Connector
Flexible
Right-angled Connector
Cable TypeSATA
Connector Type on First EndSATA - Male
Connector Type on Second EndSATA - Male
Connector on First End Details1 x 7-pin SATA - Male
Connector on Second End Details1 x 7-pin SATA - Male
Connector Gender on First EndMale
Connector Gender on Second EndMale


Miscellaneous

Additional InformationOne Right Angle Latching SATA Male Connector
REACH Declaration URL media.startech/cms/pdfs/lsata12ra1_rohs.pdf
EU RoHS Declaration URL media.startech/cms/pdfs/lsata12ra1_rohs.pdf
End of Life Manual AvailabilityYes
REACH free of SVHCYes
WEEE Statement media.startech/cms/pdfs/lsata12ra1_weee.pdf

General Information

Product TypeData Transfer Cable
Manufacturer Part NumberLSATA12RA1
startech/uk
Packaged Quantity1 Each
ManufacturerStarTech
Product Name12in Latching SATA to Right Angle SATA Serial ATA Cable
Brand NameStarTech
