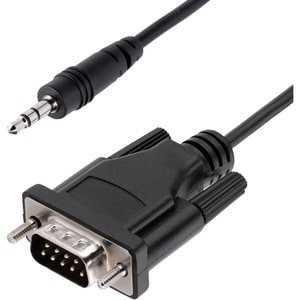

Startech 1M Db9 To 3.5Mm Serial Cable 9M351M-RS232-CABLE

1M DB9 TO 3.5MM SERIAL CABLE - This serial cable features male DB-9 and 3.5mm connectors. It enables remote serial RS232 calibration of TVs, projectors, and digital signage devices that feature a 3.5mm audio jack. High Quality Construction The aluminum-mylar cable shielding and metal shell connectors mitigate EMI. The molded PVC connectors with strain reliefs and PVC cable jacket prevent damage caused by strain and/or abrasion. Secure the DB-9 connector by tightening the integrated thumbscrews. These connector screw locks prevent accidental disconnection which could lead to data loss/corruption DB9 Serial to 3.5mm Pinout DB9 Pin 3 to 3.5mm Tip DB9 Pin 2 to 3.5mm Ring DB9 Pin 5 to 3.5mm Sleeve This product is backed for life, including free lifetime 24/5 multi-lingual technical assistance. More from the Manufacturer More from the Manufacturer
General Information

Product TypeData Transfer Cable
Manufacturer Part Number9M351MRS232CABLE
startech/uk
Packaged Quantity1
ManufacturerStarTech
Product NameDB9 to 3.5mm RS232 Serial Cable
Brand NameStarTech

Technical Information

Cable Length1 m
Device SupportedTV
Projector
Digital Signage
Computer
Audio Device
ShieldingYes
FeaturesStrain Resistant
Abrasion Resistant
Damage Resistant
Bendable
Strain Relief
Screw Lock
Molded
EMI Protection
Connector Type on First EndMini-phone Stereo Audio - Male
Connector Type on Second EndDB-9 RS-232 Serial - Male
Connector PlatingNickel
American Wire Gauge28 AWG
Connector on First End Details1 x Mini-phone Stereo Audio - Male
Connector on Second End Details1 x 9-pin DB-9 RS-232 Serial - Male
Connector Gender on Second EndMale


Physical Characteristics

Material Detailsmetal - shell
Jacket MaterialPolyvinyl Chloride (PVC)
Shielding MaterialAluminum Mylar
Product ColorBlack
Color FamilyBlack
Product MaterialMetal
Connector MaterialPolyvinyl Chloride (PVC)
