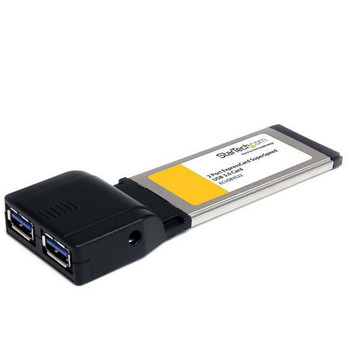

Startech 2 Port Expresscard Superspeed Usb 3.0 Card Adapter With Uasp Support 5G ECUSB3S22

StarTech 2 Port ExpressCard SuperSpeed USB 3.0 Card Adapter with UASP Support - 5Gbps - Add 2 USB 3.0 ports to your Laptop through an ExpressCard slot - 2 Port ExpressCard SuperSpeed USB 3.0 Card Adapter with UASP Support - USB 3.0 Controller - USB 3.0 ExpressCard - USB 3.0 Adapter - Laptop Card - USB3 Card The ECUSB3S22 2-Port ExpressCard USB 3.2 Gen 1 Card adds 2 SuperSpeed USB 3.2 Gen 1 ports to an ExpressCard-enabled computer system, using a 34mm form factor that will fit in both 34mm and 54mm slots, along with ports mounted side-by-side for easy access. Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.2 Gen 1 controller performs up to 70% faster than conventional USB 3.2 Gen 1 when paired with a UASP supported enclosure (Note: UASP requires a compatible operating system). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details. USB 3.2 Gen 1 supports data transfer rates up to 5 Gbps (10x faster than USB 2.0) and is able to provide more power per port, to help support faster and more powerful devices. Also, this ExpressCard adapter is backward compatible with USB 2.0/1.x, so all of your existing devices will still work. Backed by a StarTech 2-year warranty and free lifetime technical support. Improved Performance with UASP UASP is supported in Windows?� 8 and Server 2012. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.2 Gen 1 at peak performance. At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources. Test results were obtained using an Intel?� Ivy Bridge system, StarTech add-on USB 3.2 Gen 1 cards, a UASP-enabled StarTech enclosure, and a SATA III solid state drive.
More from the Manufacturer More from the Manufacturer
Power Description

Power Plug TypeType B

Technical Information

Host InterfaceExpressCard/34

Interfaces/Ports

Total Number of USB Ports2
Number of USB 3.2 Ports2

Media & Performance

Data Transfer Rate5 GB/s
UASP SupportYes

Miscellaneous

Package Contents2 Port ExpressCard SuperSpeed (5Gbps) USB 3.0 Card Adapter with UASP Support
1 x USB to DC Power Cable
1 x Driver CD
1 x Instruction Manual

Platform SupportedPC
Environmentally FriendlyYes
TAA CompliantYes
Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE)
Restriction of Hazardous Substances (RoHS)

General Information

Product TypeUSB Adapter
Manufacturer Part NumberECUSB3S22
startech/uk
Packaged Quantity1
ManufacturerStarTech
Product Name2 Port ExpressCard SuperSpeed (5Gbps) USB 3.0 Card Adapter with UASP Support
Brand NameStarTech


Physical Characteristics

Weight (Approximate)32 g
Form FactorPlug-in Module
Length115 mm
Height12 mm
Width40 mm
Product ColorBlue
Color FamilyBlue

Software

Operating System SupportedWindows 8
Windows 8.1
Windows 10
Windows Server 2008 R2
Windows Vista
Windows 7
Windows 11
Windows Server 2003
Windows XP
