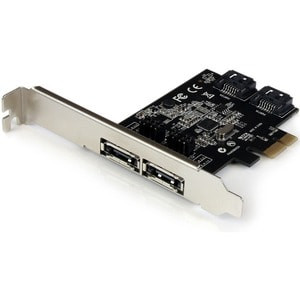

Startech 2 Port Pci Express Sata 6 Gbps Esata Controller Card Dual Port Pcie Sat PEXESAT322I

StarTech 2 Port PCI Express SATA 6 Gbps eSATA Controller Card - Dual Port PCIe SATA III Card - 2 Int/2 Ext - Add 2 external or internal SATA 6 Gbps ports to a computer, through a PCI Express slot - pci express sata 6 - pcie sata 6 - pci express sata iii card - pci express esata - pcie esata The PEXESAT322I PCI Express SATA III Controller Card (6 Gbps) gives you the option to add 2 internal or external SATA ports to your computer, through a single PCI Express (x1) card slot. The card features on board jumper selection, which enables you to configure the card to provide 2 internal or external SATA III ports, or one of each, as needed. The SATA III card features Port Multiplier (PM) support on each port, which allows multiple drives to be connected over a single cable when necessary to maximize the number of SATA device connections while reducing the amount of cabling required. The card is fully compliant with the SATA revision 3.0 specification (up to 6Gbps of data bandwidth), enabling you to utilize the speeds of high performance hard drives and Solid State Drives (SSD), as well as SATA-based optical drives (CD-ROM, DVD-ROM, Blu-Ray). The PEXESAT322I SATA III Controller card is backed by our 2-year manufacturer warranty and free lifetime technical support. More from the Manufacturer More from the Manufacturer
Miscellaneous

Platform SupportedPC

Technical Information

Host InterfacePCI Express x1
Controller TypeSerial ATA/600

General Information

Product TypeSATA Controller
Manufacturer Part NumberPEXESAT322I
startech/uk
Packaged Quantity1
ManufacturerStarTech
Product NamePCIe SATA Controller
Brand NameStarTech


Interfaces/Ports

Total Number of SATA Ports4
Number of SATA Ports (Internal)2
Number of SATA Ports (External)2

Physical Characteristics

Weight (Approximate)48.2 g
Form FactorPlug-in Card
Length121.9 mm
Height20.3 mm
Width91.4 mm
