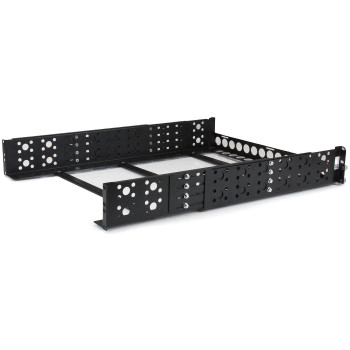

Startech 2U Fixed 19" Adjustable Depth Universal Server Rack Rails 45.36 Kg Load UNIRAILS2U

StarTech 2U Fixed 19" Adjustable Depth Universal Server Rack Rails - 45.36 kg Load Capacity - Steel - Black These 2U server-rack rails let you mount non-rackmount equipment such as desktop servers, networking equipment or KVM switches, into your 19" server rack without sacrificing an additional 1U of rack space, like you would with a traditional shelf. The rack rails are also a great solution for mounting equipment with damaged rails or discontinued OEM equipment such as Dell?��, IBM?�, HP?� or Apple servers that no longer have rack rails available. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases. Turn non-rackmount equipment into 2U rackmount hardware These rack rails add rackmount functionality to your non-rackmount gear, by cradling your equipment in an open frame supported by three sturdy crossbars. You can mount your non-rackmount equipment by mounting the rails to your server rack and placing your equipment on the undercarriage. For equipment that already features mounting holes, the rails also feature multiple mounting patterns to secure your equipment, for an added level of security. Universal design mounts to almost any 19" server rack Adhering to the EIA-310 standard for 19" rackmount equipment, these mounting rails are universally compatible with 19" server racks. The depth is adjustable for a variety of rack sizes and configurations. Plus, there is a rear cable management panel that's removable for additional customization. Maximum durability To ensure your equipment is secure, these mounting rails feature cold-rolled steel construction. The durable design can support a weight load of up to 100 lb (45 kg). The UNIRAILS2U is backed by a lifetime StarTech warranty with free technical support. More from the Manufacturer More from the Manufacturer
Technical Information

FeaturesAdjustable Depth

Physical Characteristics

Weight (Approximate)3.69 kg
Height87.9 mm
Width465.1 mm
Depth481.1 mm

General Information

Product TypeMounting Rail
Manufacturer Part NumberUNIRAILS2U
startech/uk
Packaged Quantity1 Each
ManufacturerStarTech
Product Name2U Fixed 19" Adjustable Depth Universal Server Rack Rails
Brand NameStarTech


Miscellaneous

Additional InformationMounting Height: 2U
Cross bars allow for mounting of equipment that can't span the 19" rack expanse
Three-piece rail construction enables a broad range of adjustable depth configurations, to accommodate almost any size of rack
Universal design mounts to almost any 19" server, or other equipment for maximum mounting versatility
Maximum Mounting Depth: 41.5 in
Minimum Mounting Depth: 16.54 in

Assembly RequiredYes
TAA CompliantYes
REACH Declaration URL media.startech/cms/pdfs/unirails2u_rohs.pdf
EU RoHS Declaration URL media.startech/cms/pdfs/unirails2u_rohs.pdf
End of Life Manual AvailabilityYes
REACH free of SVHCYes
