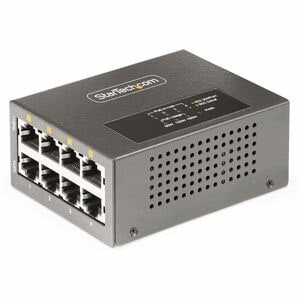

Startech 4-Port Multi-Gigabit Poe++ Injector 5/2.5/1G Ethernet Nbase-T Poe/Poe+/ AS445C-POE-INJECTOR

StarTech 4-Port Multi-Gigabit PoE++ Injector, 5/2.5/1G Ethernet (NBASE-T), PoE/PoE+/PoE++ (802.3af/802.3at/802.3bt), 160W Power Budget - 4-Port Multi-Gigabit PoE injector supports Ethernet 5/2.5/1Gbps and 100/10Mbps (NBASE-T) - PoE/PoE+/PoE++ up to 95W - Features selectable power output switch for 90W/95W PoH/legacy 60W - PoE ++ injector w/ top-facing LEDs for PoE mode/power budget This 4-Port Multi-Gigabit PoE++ Injector Hub serves as Power Sourcing Equipment (PSE) and enables multigigabit speeds of 5Gbps, 2.5Gbps, 1Gbps, 100Mbps, and 10Mbps across four Ethernet ports. This mid/end-span injector is capable of transmitting network data and power up to 328ft (100m) for remote installations. The PoE, PoE+, PoE++ compatibility and selectable power output ensure seamless compatibility with Powered Devices (PD). The TAA-compliant injector includes a Universal Power Adapter for different regions (NA/JP, EU, UK, and ANZ). Versatile PoE Injector Multiport PoE Injector supports the IEEE 802.3af, 802.3at, and 802.3bt (Type 3 and Type 4) standards for Power Sourcing Equipment (PSE), delivering up to 52V DC and 95Watts. This flexibility eliminates the need for a separate power source for remote networked devices such as IP cameras, access control devices, remote kiosks (POSs), wireless access points, PoE lighting, and digital signage. Experience streamlined cable management with all network cables routed from one side of the unit for a clean and organized setup. Flexible Power Options Tailor the power output to the specific needs of the device using the Power Output Switch. The options include 90W, 95W PoH, or legacy 60W (for UPoE/UPoE+) for all the ports on the PoE Injector Adapter. The Level-4 ESD protection (15kV air and 8kV contact) enhances device safety and reduces EMI for stable operation, minimizing the risk of downtime and hardware failures. Increased Network Speeds The unmanaged PoE Injector with NBASE-T technology provides access to an increased bandwidth up to 5Gbps, significantly reducing network slowdowns during data-intensive applications such as streaming high-definition video feeds, high-speed Internet, access local network resources, online or local network backups, and FTP access.
Interfaces/Ports

Output Ports4 x Multi-Gigabit PoE++

Technical Information

Protection TypeESD Protection

Miscellaneous

Package ContentsPoE++ Injector
1 x Universal Power Adapter
1 x DIN Rail Mounting Kit
1 x Quick-Start Guide

CompatibilityIP cameras
access control devices
remote kiosks (POSs)
wireless access points
PoE lighting
digital signage.

Certifications & StandardsIEEE 802.3af
IEEE 802.3at
IEEE 802.3bt

Environmentally FriendlyYes
TAA CompliantYes
Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE)

Physical Characteristics

Weight (Approximate)277.8 g
Form FactorDIN Rail/Wall Mountable
Length94 mm
Height38.1 mm
Width71.1 mm
Product ColorBlack


Power Description

Input Voltage230 V AC 0 V AC
Maximum Input Current2.50 A
Maximum Output Current3.30 A
Maximum Output Power160 W
Maximum Output Voltage54 V DC

General Information

Product TypePoE++ Injector
Manufacturer Part NumberAS445CPOEINJECTOR
startech/uk
Packaged Quantity1
ManufacturerStarTech
Product NamePoE++ Injector
Brand NameStarTech
