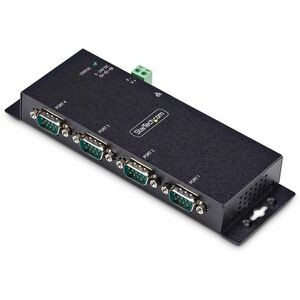

Startech 4-Port Serial To Ethernet Adapter Ip Serial Device Server for Remote Rs I43-SERIAL-ETHERNET

StarTech 4-Port Serial to Ethernet Adapter, IP Serial Device Server For Remote RS232 Devices, Wall/DIN Rail Mount, LAN To DB9 Converter - 4-Port serial to Ethernet device server; Ideal for remote RS232 device management over IP network - Supports Telnet/TCP server/TCP Client/UDP - Windows-based software for VCOMs and device management - DC jack/Terminal block power; ESD level 4 This 4-port serial to IP converter is an efficient solution for remotely connecting and controlling a variety of RS232 serial devices over an IP-based network. Configuration and Management The serial over LAN adapter is highly customizable using the Windows-based companion software, Device Server Manager (DSM), that enables the creation of virtual COM ports, allowing seamless migration of existing serial applications to the new virtual COM ports. The DSM provides a unified management experience, allowing multiple serial to Ethernet converters to be managed simultaneously. The converter also features a versatile web-based interface for remote management, making it compatible in mixed OS environments. Flexible Installation and Rugged Chassis Dual power options, DC jack and terminal block, provide installation flexibility and convenience. The converter is housed in a full metal enclosure for durability in harsh environments. The DB9 over IP converter includes all necessary wall and DIN rail mounting hardware. Multiple mounting holes along the chassis allow it to be installed in the most useful orientation for any application. Dimensions of 7x2.3x0.9in (178x59.4x23mm). Ethernet and Power Options The TAA-compliant IP-to-serial converter features a single RJ45 10/100 Mbps Ethernet port and supports Telnet Server (RFC2217), TCP Server, TCP Client, and UDP protocols for versatile network connectivity. It also includes a universal power adapter, supports ESD level 4 surge protection, and can supply 5VDC over pin 9 if required.
Media & Performance

Media Type SupportedTwisted Pair

Technical Information

Connectivity TechnologyWired

Environmental Conditions

Minimum Operating Temperature0??C
Maximum Operating Temperature60??C

Network & Communication

Network Standard10/100Base-T
Ethernet TechnologyFast Ethernet

Miscellaneous

Package ContentsDevice Server
1 x Din Rail Kit
2 x Din Rail Screws
1 x Universal Power Adapter
1 x Quick-Start Guide

Certifications & StandardsIEEE 802.3u
IEEE 802.3i

TAA CompliantYes

Physical Characteristics

Weight (Approximate)399.7 g
Form FactorWall Mountable
DIN Rail Mountable
Height22.9 mm
Width177.8 mm
Depth61 mm
Product ColorBlack
Color FamilyBlack
Product MaterialSteel


Interfaces/Ports

Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Serial PortYes
Number of Serial Ports4
Total Number of Network Ports1

Power Description

Input Voltage120 V AC
230 V AC
Input Current480 mA
Power Consumption15 W
Plug/Connector TypeType M
Input Voltage Range100V AC to 240V AC

General Information

Product TypeDevice Server
Manufacturer Part NumberI43-SERIAL-ETHERNET
startech/uk
Packaged Quantity1
ManufacturerStarTech
Product NameDevice Server
Brand NameStarTech
