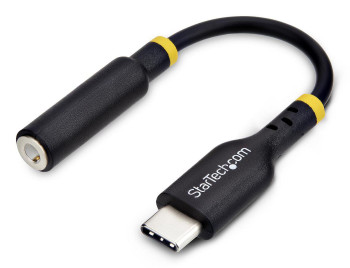

Startech 5In 12.7Cm Usb-C Audio Adapter To 3.5Mm Headphone/Headset Jack Usb Type USBCAUDIO2

StarTech 5in (12.7cm) USB-C Audio Adapter to 3.5mm Headphone/Headset Jack, USB Type-C Aux Dongle, 32-bit DAC, For Laptop/Phone/Tablet - USB-C to 3.5mm audio adapter for wired headphones on USB Type-C devices - Audio with 32-bit DAC; Stereo output/input - Supports USB-C/Thunderbolt computers/phones/tablets; USBC to TRRS aux jack - Ideal dongle for audio playback and recording Connect wired headphones or earphones to a USB Type-C-enabled device with this USB-C to 3.5mm audio adapter. The built-in 32-bit DAC supports stereo sound and microphone functionality via the TRRS jack for clear and immersive audio. Superior Sound Quality Experience excellent sound quality supporting audio ranges from 44.1 to 384kHz and 16, 24, and 32-bit sample rates, delivering a 105dBA signal-to-noise ratio for crisp and detailed output. The stereo ADC features a 94dB SNR for microphone input, with 48kHz and 16-bit sampling, all powered by the Realtek ALC4030U chipset. Wide Compatibility This versatile aux audio adapter is universally compatible with USB-C and Thunderbolt devices, including Windows, macOS, and Linux computers, as well as phones and tablets running iOS or Android. It supports wired headphones and headsets (including models with in-line controls), making it an ideal solution for using existing audio gear and eliminating the need for Bluetooth audio solutions. Sleek and Portable Design The compact, sleek adapter measures just 5 inches (127mm) and features a flexible and durable TPE jacket with a soft-touch finish. Use this adapter cable on the go or at a workstation for audio playback, recording, or calls. More from the Manufacturer
General Information

Product TypeAudio Cable
Manufacturer Part NumberUSBCAUDIO2
startech/uk
Packaged Quantity1 / Each
ManufacturerStarTech
Product NameMini-phone/USB-C Audio Cable
Brand NameStarTech

Technical Information

Cable Length12.70 cm
Data Transfer Rate480 Mbit/s
Device SupportedEarphone
Audio Device
Tablet
Sound Card
Smartphone
Phone
Notebook
Microphone
Computer
Headphone
Headset
FeaturesFlexible
Durable
Cable TypeMini-phone/USB-C
Connector Type on First EndUSB 2.0 Type C - Male
Connector Type on Second EndMini-phone Stereo Audio - Female
Connector on First End Details1 x 24-pin USB 2.0 Type C - Male
Connector on Second End Details1 x Mini-phone Stereo Audio - Female
Connector Gender on First EndMale
Connector Gender on Second EndFemale


Physical Characteristics

Weight (Approximate)8.5 g
Height7.6 mm
Width12.7 mm
Jacket MaterialThermoplastic Elastomer (TPE)
Product ColorBlack
Color FamilyBlack
Product MaterialRubber

Miscellaneous

Operating System CompatibilityiPadOS
Windows 10
macOS Ventura 13.0
windows 11 (ARM)
Windows 11
macOS Sonoma 14.0
iOS
mac OS 15 Sequoia
Android
REACH Declaration URL media.startech/cms/pdfs/usbcaudio2_rohs.pdf
EU RoHS Declaration URL media.startech/cms/pdfs/usbcaudio2_rohs.pdf
End of Life Manual AvailabilityYes
REACH free of SVHCYes
WEEE Statement media.startech/cms/pdfs/usbcaudio2_weee.pdf
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
