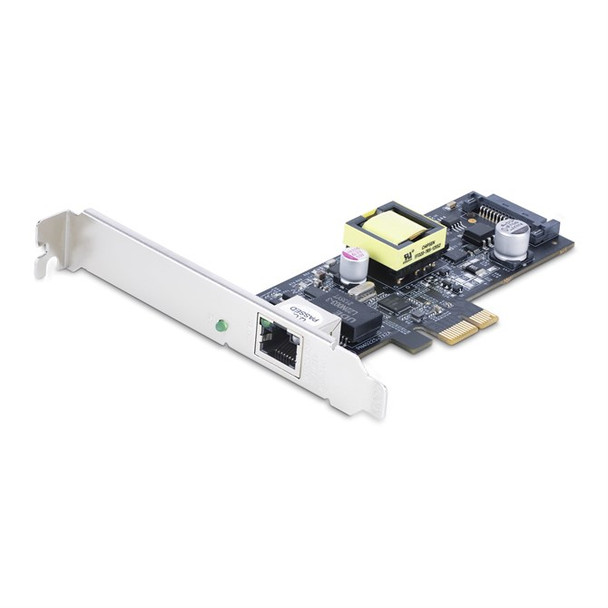

StarTech.com 1-Port 2.5Gbps NBASE-T PoE Network Card Intel I225-V 802.3af/at PoE PR12GIP-NETWORK-CARD

Chipset : Intel I225-V


Compliance certificates : RoHS


Component for : PC/Server


Connectivity technology : Wired


Depth : 119 mm


EAN : 0065030903493


Ethernet LAN (RJ-45) ports : 1


Ethernet LAN data rates : 10,100,1000,2500 Mbit/s


Height : 16 mm


Host interface : PCI Express


Interface : Ethernet


Internal : Yes


LED indicators : Yes


Linux operating systems supported : Yes


Manufacturer : StarTech


Manufacturer Part Code : PR12GIP-NETWORK-CARD


Maximum data transfer rate : 2500 Mbit/s


Model : 1


Networking standards : IEEE 1588, IEEE 802.1Q, IEEE 802.1as, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u


Number of SATA power connectors : 1


Operating relative humidity (H-H) : 5 - 90%


Operating temperature (T-T) : 0 - 55 °C


Other operating systems supported : VMware vSphere ESXi


Output voltage : 48 V


Package depth : 170 mm


Package height : 30 mm


Package weight : 70 g


Package width : 142 mm


PCI version : 2.0


Power over Ethernet (PoE) ports quantity : 1


Product colour : Black


Product name : 1-Port 2.5Gbps NBASE-T PoE Network Card, Intel I225-V, 802.3af/at PoE+ Multi-Gigabit NIC, PCI Express Server LAN Card, SATA Powered Desktop Ethernet Interface - Supports Windows, Linux


Quality of Service (QoS) support : Yes


Quick installation guide : Yes


Server operating systems supported : Windows Server 2019, Windows Server 2022


Storage temperature (T-T) : -10 - 70 °C


Sustainability compliance : Yes


Wake-on-LAN ready : Yes


Weight : 62 g


Width : 54 mm


Windows operating systems supported : Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
