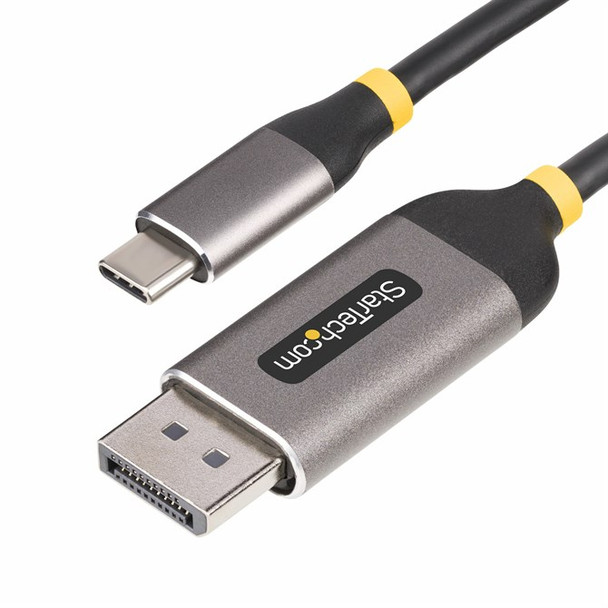

StarTech.com 10ft 3m USB-C to DisplayPort Adapter Cable 8K 60Hz 4K 144Hz HDR USB 142-USBC-DP-8K-10F

Connect a DisplayPort Alt Mode-enabled USB-C source to a DisplayPort monitor with support for resolutions up to 8K at 60Hz

Connect an 8K 60Hz or 4K 144Hz DisplayPort monitor to a DP Alt Mode-enabled USB Type-C source up to 9.8ft (3m) away with this USB-C to DisplayPort adapter cable.

High-Resolution HDR Video

This USB-C to DisplayPort Cable enables resolutions of up to 8K 60Hz and is DisplayPort 1.4 compliant. It supports HDR10, DSC, and 2 channel audio.

Hardware Platform

Single Monitor

DisplayPort Alt Mode

Intel 11th Gen & Later Processors

8K 60Hz or 4K 144Hz*

DisplayPort 1.4

Nvidia RTX3000 and AMD RX6000 or later

8K 60Hz or 4K 144Hz

DisplayPort 1.4

Intel 10th Gen & Earlier

4K 60Hz

DisplayPort 1.4

Apple M1/M2/M3 + Pro & Max

4K 60Hz**

DisplayPort 1.4

*DSC support required to reach maximum resolution capabilities on Intel 11th Gen or later

**Apple MacBook's with M1/M2/M3 Pro/Max silicon do not support 8K 60Hz over USB-C DP Alt Mode

Universal Compatibility

The USB-C to DisplayPort Converter Cable is compatible with laptops and devices from various brands such as Dell, HP, Lenovo, Microsoft, and more. It works with all hardware platforms and any operating system. The USB Type-C to DisplayPort Cable requires no drivers or software and works with USB-C DP Alt Mode, USB4, Thunderbolt 3, and Thunderbolt 4 laptops and devices.

Thoughtfully Designed

Combining a video adapter and cable minimizes potential points of failure and signal loss. A latching DisplayPort connector reduces the risk of accidental disconnections. The cable is equipped with aluminum connector shells, providing enhanced durability, and shielding from Electromagnetic Interference (EMI).

The StarTech Advantage

Specs




Features


Connector 1 form factor

Straight


Connector 2 form factor

Straight


Cable length

How long the cable is.

3 m


Connector 1

This is the first connector in the device.

USB Type-C


Connector 2

This is the second connector in the device.

DisplayPort


Connector 1 gender

The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.

Male


Connector 2 gender

The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.

Male


HDCP

High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.




HDCP version

1.4/2.2/2.3


DisplayPort version

1.4


USB Type-C DisplayPort Alternate Mode




High Dynamic Range (HDR) supported




Supported graphics resolutions

The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.

800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768, 1280 x 768 (WXGA), 1280 x 800, 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA), 2560 x 1080, 3440 x 1440, 3840 x 2160, 4096 x 2160, 5120 x 1440, 5120 x 2880, 7680 x 4320


Bandwidth

32400 MB/s


Maximum refresh rate
4 Hz


Refresh rate at maximum resolution

60 Hz


Product colour

The colour e.g. red, blue, green, black, white.

Black, Grey


Chipset

Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.

VL103


Jacket material

Thermoplastic elastomer (TPE)


Cable type

Type of cable e.g. electicity cable, optical cable.

Round cable



Features


Plug and Play

Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.




Latching connectors




Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

-20 - 70 -C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-40 - 70 -C


Operating relative humidity (H-H)

5 - 95%


Certificates


Compliance certificates

RoHS


Sustainability


Sustainability compliance




Weight & dimensions


Cable diameter

The distance from one side of the cable to the other, with a straight line going through the middle of the cable.

4.3 mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
1 g


Packaging data


Package width

The distance from one side of the packaging to the other.
0 mm


Package depth

The distance from the front to the back of the packaging.
0 mm


Package height

The distance from the top to the bottom of the packaging.
0 mm


Package weight

Weight of the packaged product.

80 g


Logistics data


Master (outer) case width

300 mm


Master (outer) case length

300 mm


Master (outer) case height

350 mm


Products per master (outer) case
0 pc(s)
