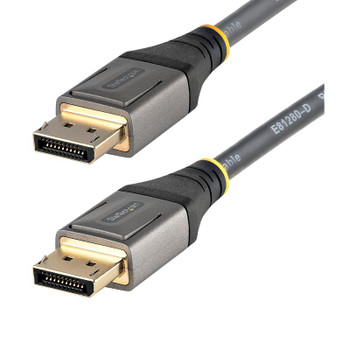

StarTech.com 13ft 4m VESA Certified DisplayPort 1.4 Cable - 8K 60Hz HDR10 - Ultr DP14VMM4M

VESA Certified DisplayPort 1.4 Cable - 8K 60Hz HDR10 - 13.1 ft. (4 m)

This DisplayPort 1.4 cable connects your DisplayPort- laptop or desktop computer to an ultra-high definition 8K monitor, TV or projector. It supports resolutions up to 8K (7680 x 4320) at 60Hz.

The DisplayPort monitor cable provides the essential connection to support the next generation of ultra-high definition video.

This cable is VESA- Certified to ensure full compliance and efficient operation of the higher link rate of HBR3. It has been tested to meet all DP 1.4 specifications to ensure quality and reliability.

The Superior Performance of DisplayPort 1.4

This 8K DisplayPort cable supports all DP 1.4 features:
- High Bit Rate 3 (HBR3) Bandwidths of 32.4 Gbps supporting the latest in industry standards
- High Dynamic Range (HDR10) for higher contrast ratio and vivid colors
- Multi-Stream Transport (MST) for daisy-chaining multiple monitors
- Display Stream Compression 1.2 (DSC) for maximum resolution output
- Forward Error Correction to manage data transmission errors
- High-Bandwidth Digital Content Protection (HDCP 2.2) for a secure connection between source and display
- 32 Uncompressed Digital Audio Channels

Cable

Aluminum-mylar foil with braided shielding improve EMI protection

Long lasting flexible TPE jacket & strain relief (TPE is non-toxic & halogen free for environmental sustainability)

Connector

Die-cast aluminium sub-structure shielding improves signal integrity & prevents signal degradation

Corrosion-free gold-plated connectors ensure premium video quality & enhanced reliability

Tested to withstand 5000+ insertions

8K: Enabling Business Continuity

8K has a resolution of 7680 x 4320 and is also known as 4320p and Ultra High Definition (UHD). Suitable for digital signage and other commercial displays that require the highest available resolution. This cable is backward compatible with 4K and 5K displays making it the perfect peripheral to start futureproofing your cabling infrastructure.

Comprehensive Product Testing & Expert Technical Support

StarTech conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech Technical Advisors have a broad product expertise and work directly with StarTech Engineers to provide support for our customers both pre and post-sales.

DP14VMM4M is backed by a StarTech lifetime warranty.

The StarTech Advantage

Specs




Features


Connector 1 form factor

Straight


Connector 2 form factor

Straight


Connector contacts plating

What the connector contacts are covered with (layer on top).

Gold


DisplayPort version

1.4


Maximum resolution

The maximum number of pixels that can be displayed in the image. It is usually quoted as width - height,: for example, "1024 - 768" means the width is 1024 pixels and the height is 768 pixels.

7680 x 4320 pixels


Supported graphics resolutions

The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.

3840 x 2160, 7680 x 4320


Maximum refresh rate
0 Hz


HDCP

High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.




Cable length

How long the cable is.

4 m


Connector 1

This is the first connector in the device.

DisplayPort


Connector 2

This is the second connector in the device.

DisplayPort


Connector 1 gender

The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.

Male


Connector 2 gender

The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.

Male


Latching connectors




Product colour

The colour e.g. red, blue, green, black, white.

Grey, Black


Cable shielding

The protective layer for the cable, typically made of plastic.

Aluminum mylar foil


Jacket material

Thermoplastic elastomer (TPE)


AWG wire size

28


High Dynamic Range (HDR) supported




Bandwidth

32400 MB/s



Features


HBR3 support




Number of conductors



Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 50 -C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

0 - 50 -C


Operating relative humidity (H-H)

0 - 85%


Certificates


Compliance certificates

RoHS


Weight & dimensions


Cable diameter

The distance from one side of the cable to the other, with a straight line going through the middle of the cable.

7.5 mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

309 g


Packaging data


Package width

The distance from one side of the packaging to the other.

245 mm


Package depth

The distance from the front to the back of the packaging.

330 mm


Package height

The distance from the top to the bottom of the packaging.

23 mm


Package weight

Weight of the packaged product.

328 g


Logistics data


Harmonized System (HS) code

84733080


Master (outer) case width

340 mm


Master (outer) case length

400 mm


Master (outer) case height

270 mm


Products per master (outer) case

25 pc(s)
