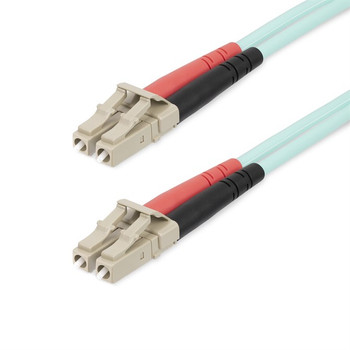

StarTech.com 15m 50ft LC/UPC to LC/UPC OM4 Multimode Fiber Optic Cable 50/125�m 450FBLCLC15

LSZH Jacket | Aramid Fiber Sheath | Ideal for SANs, data servers, SFP+

The LC to LC Multimode Duplex Fiber Optic Patch cable facilitates reliable connectivity across 40 and 100 Gigabit networks.

Engineered for Optimal Performance

With laser-optimized multimode fiber (LOMMF), the OM4 fiber patch cable is ideal for 850 nm and 1350 nm Vertical Cavity Surface Emitting Laser (VCSEL) and LED sources. Precision-manufactured ceramic ferrules ensure correct fiber alignment to prevent connectivity issues and minimize insertion loss. Designed for reliability in high-density network applications, the LC to LC UPC polished fiber ends greatly improves return loss characteristics over older PC polishing techniques which may negatively affect performance.

Wide Compatibility

This multimode 50/125-m fiber optic patch cord is backward compatible with OM3 and 1/10/40 Gbps networks, ensuring a reliable connection with legacy fiber environments.

Flame Resistant

Housed in a LSZH (Low-Smoke, Zero-Halogen) flame-retardant jacket, this OM4 fiber cable emits low smoke and toxic fumes when exposed to high heat or in the event of a fire. It enables safer cable installations in areas with poor ventilation including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where building codes are a consideration.

Each OM4 fiber cable is also individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.

The StarTech Advantage

Specs




Features


Cable length

How long the cable is.
m


Fibre optic type

The standardised properties of the fiber optic cable.

OM4


Connector 1

This is the first connector in the device.

LC


Connector 2

This is the second connector in the device.

LC


Connector 1 gender

The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.

Male


Connector 2 gender

The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.

Male


Product colour

The colour e.g. red, blue, green, black, white.

Aqua colour


Full duplex

A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.




Core diameter

The diameter of the core, which is the material at the centre e.g. the metal in an electrical wire.

50 -m


Cladding diameter

The diameter of the cladding, which is the material around the centre (core) e.g. the plastic coating in an electrical wire.
5 -m


Fiber mode structure

Multi-mode


Wavelengths supported

850 nm


Data transfer rate

Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations.
0 Gbit/s


Jacket material

Low smoke zero halogen (LSZH)



Sustainability


Sustainability compliance




Doesn't contain

Halogen


Certificates


Compliance certificates

CE, RoHS


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

-20 - 60 -C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-20 - 60 -C


Weight & dimensions


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
0 g


Packaging data


Package width

The distance from one side of the packaging to the other.

220 mm


Package depth

The distance from the front to the back of the packaging.
0 mm


Package height

The distance from the top to the bottom of the packaging.

32 mm


Package weight

Weight of the packaged product.
5 g


Packaging content


Quantity per pack

1 pc(s)


Logistics data


Harmonized System (HS) code

85447000
