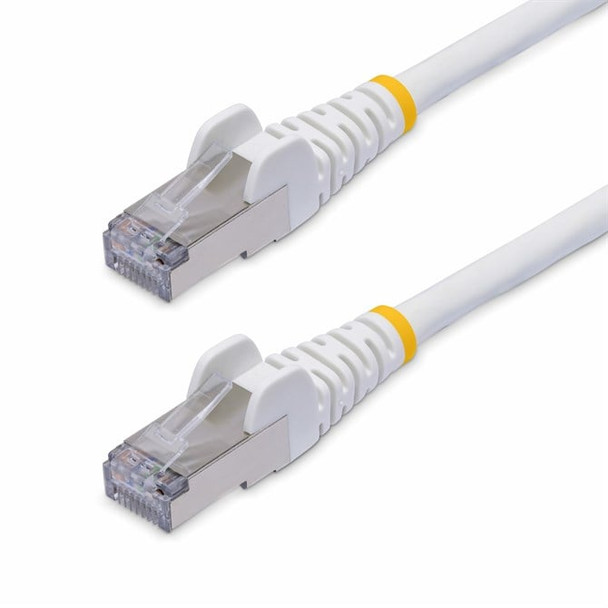

StarTech.com 15m White CAT8 Ethernet Cable Snagless RJ45 25G/40G 2000MHz 100W Po NLWH-15M-CAT8-PATCH

Connect reliably to a 25G/40G network using this Shielded LSZH Cat8 Cable

Connect to a 25/40Gbps switch or networking device using this Snagless S/FTP Category 8 Ethernet Cable. The 2000MHz maximum frequency enables up to four times higher throughput than Cat6a.

Pure Bare Copper Wire

Our Snagless Cat8 Cables are designed for long-lasting performance. The 4-Pair Shielded and Foiled Twisted Pair (S/FTP) construction utilizes 26AWG pure bare copper wire for improved conductivity and low resistance, ensuring reliable transmission and minimal signal loss.

Pure bare copper wiring offers consistent performance characteristics across different environments. Each pair is shielded in aluminum-mylar foil and tinned copper braid for enhanced EMI protection.

Durable Construction

The Cat8 Ethernet Cable features snagless 50-micro gold-plated connectors that enable a precise fit to minimize wear and are rated beyond 750 connector mating cycles. The flexible Low Smoke Zero Halogen (LSZH) flame-retardant jacket emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer installations in poorly-ventilated areas including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.

The cable is rated to withstand -/+90-degree bends and routes well in confined spaces.

Versatile Dependability

The Shielded Cat8 Patch Cord is ideal for high-density 25/40GBASE-T networks and supports up to 100W output to Power over Ethernet (PoE++) devices. Establish connectivity to 25G/40G switches, Network Attached Storage (NAS), Storage Area Networks (SANs), and SFP modules. It facilitates reliable throughput and power to low-latency and critical PoE devices, including PoE switches, access points, and IP cameras. ETL Verified

Our Cat8 Ethernet Cables are ETL Verified to meet ANSI/TIA-568.2-D standards, ensuring peak performance for high-speed 25G/40G applications. Independent testing confirms compliance with strict insertion loss, return loss, and crosstalk limits, maintaining stable signal transmission over longer runs. The S/FTP shielding is verified for EMI resistance, for guaranteed reliability in demanding environments.

Backward compatibility with Cat 6/6a and Cat 5/5e standards ensure seamless integration into existing network environments. Each cable is individually tested using a Fluke- DSX2-8000 CableAnalyzer- for guaranteed Cat8 performance.

Specs




Features


Product colour

The colour e.g. red, blue, green, black, white.

White


Cable length

How long the cable is.
m


Cable standard

The category of the cable, which is determined by performance characteristics and test requirements.

Cat8


Cable shielding

The protective layer for the cable, typically made of plastic.

S/FTP (S-STP)


Connector 1

This is the first connector in the device.

RJ-45


Connector 2

This is the second connector in the device.

RJ-45


Connector 1 gender

The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.

Male


Connector 2 gender

The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.

Male


Connector 1 form factor

Straight


Connector 2 form factor

Straight


Connector contacts plating

What the connector contacts are covered with (layer on top).

Gold


Connector shielding




Jacket material

Low smoke zero halogen (LSZH)


Cable shape

Round


Conductor type

Solid


Conductor material

Copper


Cabling technology

Type of cable technology performance.

40GBase-T


Ethernet interface type

25 Gigabit Ethernet, 40 Gigabit Ethernet


Networking standards

The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.3ba


AWG wire size

26


Data transfer rate

Rate at which data can be transferred, usually measured in units per second. May vary with network configurations.

40000 Mbit/s



Features


Frequency
00 MHz


Power over Ethernet (PoE)

The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.




Power over Ethernet (PoE) type supported

PoE++ (4PPoE)


Total Power over Ethernet (PoE) budget
0 W


Snagless cable boot




Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 50 -C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-20 - 60 -C


Operating relative humidity (H-H)

0 - 85%


Certificates


Certification

TIA/EIA-T568B


Weight & dimensions


Outer diameter

5.6 mm


Packaging content


Quantity per pack

1 pc(s)


Packaging data


Package width

The distance from one side of the packaging to the other.

210 mm


Package depth

The distance from the front to the back of the packaging.

305 mm


Package height

The distance from the top to the bottom of the packaging.

50 mm


Package weight

Weight of the packaged product.

600 g


Logistics data


Master (outer) case width

380 mm


Master (outer) case length

430 mm


Master (outer) case height

290 mm


Products per master (outer) case
pc(s)
