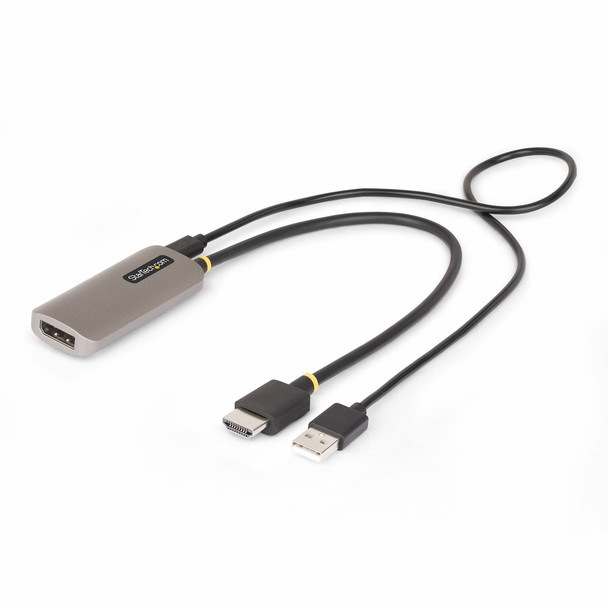

StarTech.com 1ft 30cm HDMI to DisplayPort Adapter Cable 8K 60Hz Active HDMI 2.1 148B-HDMI-DP-8K

Connect an HDMI-enabled source to a DisplayPort monitor with support for resolutions up to 8K at 60Hz

This HDMI 2.1 to DisplayPort 1.4 adapter connects an 8K 60Hz HDMI video source, such as a laptop or desktop, to a DisplayPort monitor.

8K 60Hz Resolution

This 1ft (30cm) HDMI to DisplayPort video converter supports resolutions up to 7680 x 4320 at 60Hz*. It supports HDR, HDCP 2.3, CEC, ARC, and 2-channel DisplayPort audio. Additionally, it supports lower resolutions such as 4K 120Hz, 4K 60Hz, and 1080p.

*DSC support on the host is required to achieve maximum video performance.

No Drivers or Software Required

This universal active adapter utilizes integrated or dedicated GPUs, enabling high-performance video with minimal CPU usage. It requires no drivers or software and works with any HDMI-enabled laptop, desktop, Ultrabook, MacBook, or Chromebook. It is compatible with any operating system, including Windows, macOS, Ubuntu, and ChromeOS.

Extended Cables

This HDMI to DP adapter features a 1ft (30cm) cable between the HDMI and DP connectors, reducing strain on ports and connectors. The adapter includes a 1.6-foot (50cm) USB power cable for connecting to a powered USB port anywhere on the laptop or to a USB wall charger. Power is required for the adapter to function.

The StarTech Advantage

Specs




Features


Connector 1 form factor

Straight


Connector 2 form factor

Straight


Power source

What is providing power for the product e.g. mains electricity.

USB


Cable length

How long the cable is.

0.3 m


Connector 1

This is the first connector in the device.

HDMI Type A (Standard)


Connector 2

This is the second connector in the device.

DisplayPort


Connector 1 gender

The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.

Male


Connector 2 gender

The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.

Female


HDMI version

2.1


HDCP

High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.




HDCP version

1.4/2.2/2.3


DisplayPort version

1.4


High Dynamic Range (HDR) supported




Maximum resolution

The maximum number of pixels that can be displayed in the image. It is usually quoted as width - height,: for example, "1024 - 768" means the width is 1024 pixels and the height is 768 pixels.

7680 x 4320 pixels


Supported graphics resolutions

The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.

800 x 600 (SVGA), 832 x 624, 1024 x 768 (XGA), 1152 x 870, 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1366 x 768, 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1536 (QXGA), 2560 x 1440, 3072 x 1728, 3200 x 1800, 3840 x 2160, 5120 x 2880, 7680 x 4320


Maximum refresh rate
0 Hz


Refresh rate at maximum resolution

60 Hz


Product colour

The colour e.g. red, blue, green, black, white.

Black, Silver


Chipset

Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.

LT6711GX-U3


Cable type

Type of cable e.g. electicity cable, optical cable.

Round cable


Colour depth
bit


Colour sampling

4:4:4


Audio Return Channel (ARC)





Features


Plug and Play

Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.




Windows operating systems supported

Windows vesions wich can be used with the device.




Mac operating systems supported

Mac operating systems e.g. OS X can be used with the device.




Linux operating systems supported

8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)




Other operating systems supported

ChromeOS


Certificates


Compliance certificates

RoHS


Sustainability


Sustainability compliance




Weight & dimensions


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

32 g


Width

The measurement or extent of something from side to side.

31 mm


Depth

The distance from the front to the back of something.

372 mm


Height

The measurement of the product from head to foot or from base to top.
mm


Packaging data


Package width

The distance from one side of the packaging to the other.

80 mm


Package depth

The distance from the front to the back of the packaging.
0 mm


Package height

The distance from the top to the bottom of the packaging.
mm


Package weight

Weight of the packaged product.

51 g


Packaging content


Quantity per pack

1 pc(s)


Logistics data


Master (outer) case width

331 mm


Master (outer) case length

473 mm


Master (outer) case height

440 mm


Products per master (outer) case

220 pc(s)
