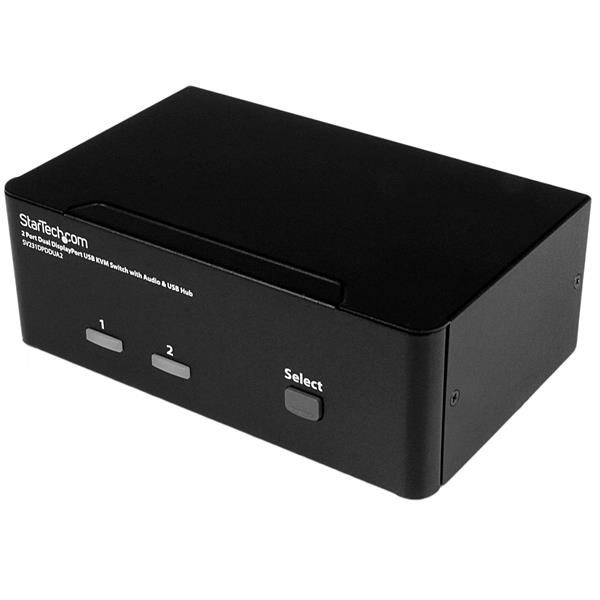

StarTech.com 2-Port DisplayPort Dual-Monitor KVM Switch - 4K 60Hz SV231DPDDUA2

Access two dual-monitor computers and two shared USB peripherals from a single workstation

This dual DisplayPort KVM switch combines next-generation digital display standards with seamless KVM control. The 2-port KVM switch features audio and USB peripheral support along with dual-display capability, which makes it easy to create a multimedia workstation that can switch between two dual-head or twin DisplayPort systems.

Maximize productivity with dual video

With support for two DisplayPort video inputs and two different computers, this KVM switch helps maximize productivity.You can access multiple computers, giving you the freedom to multitask and increase your productivity. Each of the DP ports supports resolutions up to 4K for maximum screen viewing space.

You can also use low-cost adapters to achieve a dual-monitor setup using your computer's secondary HDMI or DVI port.

Astonishing picture quality

The dual DisplayPort KVM switch supports resolutions up to Ultra HD 4K at 60Hz, and can drive two large DP displays with ease. This makes it the ideal solution for creating workstations where high-quality imaging is critical, such as for graphic design.

Complete multimedia control

The KVM switch features auxiliary 3.5 mm audio ports that let you share independent analog audio, from each of your connected computers, with your desktop speaker set. With independent audio support, along with dual 4K DP video, you get full multimedia control between different computers which makes this the perfect KVM switch for creative professional applications such as video and sound design or editing.

Convenient peripheral sharing

This KVM switch offers a built-in 2-port USB hub that's separate from your HID keyboard and mouse. This enables you to share USB peripherals between each connected computer and avoid the expense of separate equipment. The USB hub automatically switches your connected USB devices to the selected computer, saving you the hassle and cost of outfitting each of your computers with their own peripherals.

The SV231DPDDUA2 is TAA compliant and backed by a 2-year StarTech warranty with free lifetime technical support.

The StarTech Advantage

Specs




Ports & interfaces


Number of computers controlled

The amount of computers controlled by this device.

2


Keyboard port type

The type of socket in the device for connecting a keyboard e.g. USB.

USB


Mouse port type

USB


Video port type

The type of socket in the device for connecting a video e.g. SCART.

DisplayPort


Console ports

3.5mm headphone, 3.5mm mic, DisplayPort, USB A


Console USB ports quantity

4


USB connector type

The type of USB connector/port that this product has.

USB Type-A


Audio connections

Cables used to connect audio inputs or audio outputs to another device e.g, audio amplifier.




Headphone outputs

Number of sockets /ports where headphones are connected.

3


Number of microphone inputs

3


DC-in jack

The socket/plug where the DC electricity supply connects to the device.




Network


Ethernet LAN

An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.




Performance


HD type

Type of supported High Definition (e.g. Full HD, 4K Ultra HD).

4K Ultra HD


Maximum resolution

The maximum number of pixels that can be displayed in the image. It is usually quoted as width - height,: for example, "1024 - 768" means the width is 1024 pixels and the height is 768 pixels.

3840 x 2160 pixels


Daisy chain




Design


Product colour

The colour e.g. red, blue, green, black, white.

Black


LED indicators




Push button




Hot keys




Certification

CE, FCC, REACH, TAA


Display


Built-in display

A display which is part of the product, so you do not need to attach another display.




Power


Input voltage

The voltage (V) which is required to power the product.
0 - 240 V


Input current

1.5 A



Power


Output voltage
V


Output current

0.6 A


External power adapter




Compatible power plug types

AU, EU, UK, US


Sustainability


Compliance certificates

RoHS


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 40 -C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.
- 60 -C


Operating relative humidity (H-H)

0 - 80%


Weight & dimensions


Width

The measurement or extent of something from side to side.
1 mm


Depth

The distance from the front to the back of something.

58 mm


Height

The measurement of the product from head to foot or from base to top.
0 mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

734 g


Packaging data


Package width

The distance from one side of the packaging to the other.
6 mm


Package depth

The distance from the front to the back of the packaging.

249 mm


Package height

The distance from the top to the bottom of the packaging.

97 mm


Package weight

Weight of the packaged product.

1.2 kg


Packaging content


Manual




Rubber feet




Other features


Audio support




IP control




Logistics data


Harmonized System (HS) code

85176200
