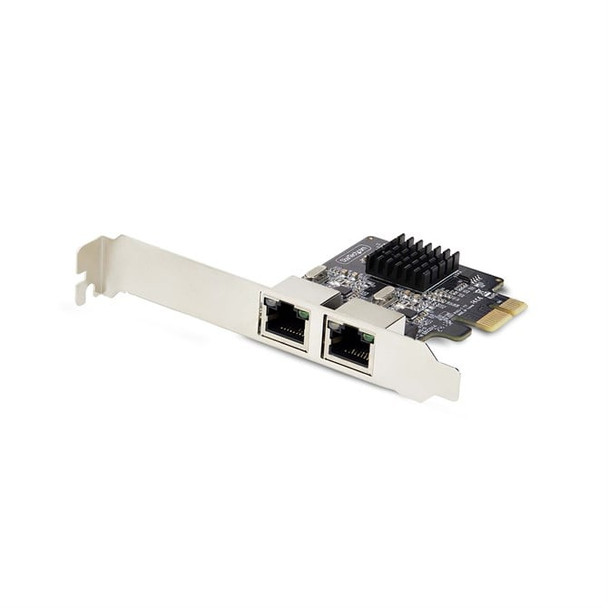

StarTech.com 2-Port Gigabit PCIe Network Adapter Card 10/100/1000Mbps PCI Expres ST1000SPEXD4T

Auto MDIX IEEE : Yes


Chipset : Realtek RTL8111H


Compliance certificates : RoHS, Trade Agreements Act (TAA)


Component for : PC/Server


Connectivity technology : Wired


Depth : 75 mm


EAN : 0065030911047


Ethernet interface type : Fast Ethernet, Gigabit Ethernet


Ethernet LAN : Yes


Ethernet LAN (RJ-45) ports : 2


Ethernet LAN data rates : 10,100,1000 Mbit/s


Height : 18 mm


Host interface : PCI Express


Interface : Ethernet


Internal : Yes


Jumbo frames : 9000


Jumbo frames support : Yes


LED indicators : Activity, Link


Linux operating systems supported : Yes


Manufacturer : StarTech


Manufacturer Part Code : ST1000SPEXD4T


Master (outer) case height : 306 mm


Master (outer) case length : 345 mm


Master (outer) case width : 685 mm


Maximum data transfer rate : 1000 Mbit/s


Model : 1


Mounting brackets included : Yes


Networking standards : IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x


Operating relative humidity (H-H) : 10 - 80%


Operating temperature (T-T) : 5 - 70 °C


Package depth : 170 mm


Package height : 30 mm


Package weight : 111.2 g


Package width : 142 mm


Product colour : Black


Product name : 2-Port Gigabit PCIe Network Adapter Card, 10/100/1000Mbps PCI Express NIC, Dual Realtek RTL8111H, Works with Windows and Linux, TAA Compliant


Products per master (outer) case : 75 pc(s)


Quick installation guide : Yes


Server operating systems supported : Windows Server 2016, Windows Server 2019, Windows Server 2022


Storage temperature (T-T) : 0 - 80 °C


Wake-on-LAN ready : Yes


Weight : 47 g


Width : 61 mm


Windows operating systems supported : Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
