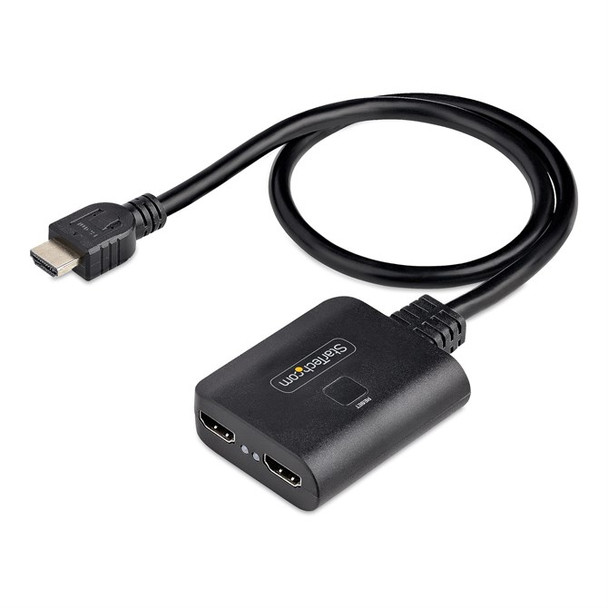

StarTech.com 2-Port HDMI Splitter 4K 60Hz HDMI 2.0 Video 4K HDMI Splitter 1 In 2 HDMI-SPLITTER-4K60UP

Send a 4K 60Hz HDMI signal to two separate displays simultaneously, powered with a nearby USB port

This 2-port HDMI splitter displays the same image from an HDMI video source onto two HDMI displays, with support for UHD 4K resolutions, HDR (High Dynamic Range), HDCP content, and 7.1 channel audio.

4K 60Hz Resolution

This 2-way HDMI splitter supports up to 4K 60Hz resolution and 4:4:4 chroma subsampling. Display 4K content on both your 4K displays or downscale the resolution to 1080p to support monitors with different resolutions, thanks to the built-in scaler. Ideal for environments containing displays of mixed resolutions.

USB Powered

The splitter includes a 31inch (78cm) USB Micro-B to Type-A power cable and USB wall charger. If an outlet is not available or within reach, the USB power cable can be connected to a 5V 1A USB Type-A port.

Robust Installation Options

This HDMI splitter supports active HDMI cables and HDMI extenders (sold separately), facilitating installations at a distance from the displays (e.g., within a remote AV component cabinet). The reset button enables hassle-free hot plug EDID detection, without the need of unplugging cables. The splitter features 8kV air and 6kV contact Electrostatic Discharge (ESD) protection, suitable for installation in a variety of environments.

This product is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance.

The StarTech Advantage

Specs




Ports & interfaces


Video port type

The type of socket in the device for connecting a video e.g. SCART.

HDMI


Video out

2x HDMI


HDMI version

2.0


Video ports quantity

The number of ports (sockets) for video input or output.

2


Features


Product colour

The colour e.g. red, blue, green, black, white.

Black


Housing material

What the casing of the product is made of.

Acrylonitrile butadiene styrene (ABS)


Maximum resolution

The maximum number of pixels that can be displayed in the image. It is usually quoted as width - height,: for example, "1024 - 768" means the width is 1024 pixels and the height is 768 pixels.

4096 x 2160 pixels


HD type

Type of supported High Definition (e.g. Full HD, 4K Ultra HD).

4K Ultra HD


Maximum operating distance

The maximum distance from which you can operate the device.

5 m


Maximum refresh rate

60 Hz


High Dynamic Range (HDR) supported




Cable length

How long the cable is.

0.5 m


Data transfer rate

Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations.
Gbit/s


HDCP

High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.




Supported video modes

The video modes that can be displayed by the device.

480i, 480p, 576i, 576p, 720p, 1080i, 1080p


LED indicators

Power


Power


AC input voltage

The voltage of the AC electricity that is inputted into the product.
0 - 240 V


Input current

0.3 A


Output voltage

5 V


Output current

1 A


USB powered

The device can be powered via a USB connection.




Weight & dimensions


Width

The measurement or extent of something from side to side.

55 mm



Weight & dimensions


Depth

The distance from the front to the back of something.

65 mm


Height

The measurement of the product from head to foot or from base to top.
mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

92 g


Packaging data


Package width

The distance from one side of the packaging to the other.
0 mm


Package depth

The distance from the front to the back of the packaging.
5 mm


Package height

The distance from the top to the bottom of the packaging.

30 mm


Package weight

Weight of the packaged product.
8 g


Packaging content


Manual




Cables included

USB Type-A to Micro-USB Type-B


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 70 -C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-10 - 80 -C


Operating relative humidity (H-H)

5 - 90%


Sustainability


Sustainability compliance




Technical details


Supported audio channels

7.1


Compliance certificates

CE, RoHS


Logistics data


Master (outer) case width

630 mm


Master (outer) case length

470 mm


Master (outer) case height

220 mm


Products per master (outer) case

60 pc(s)
