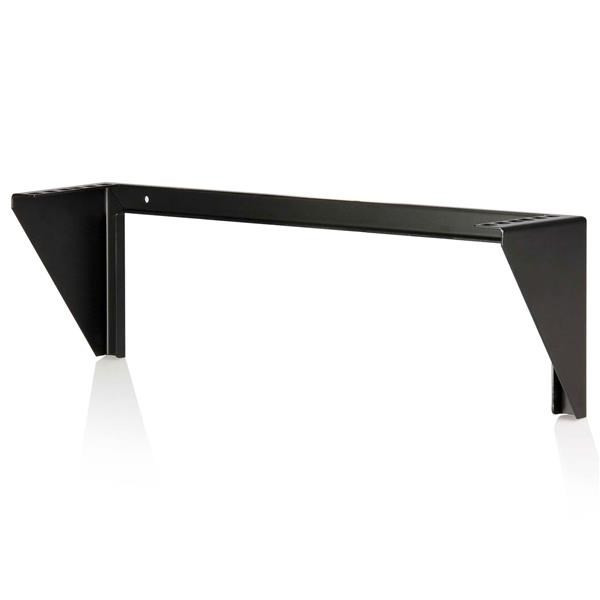

StarTech.com 2U 19in Steel Vertical Wall Mount Equipment Rack Bracket RK219WALLV

Mount a server, network or telecommunications device vertically with this 2U wall-mountable rack

The RK219WALLV 2U 19in Steel Vertical Wall Mount Equipment Rack Bracket offers a versatile storage solution allowing rackmount equipment (Network devices, power strips, patch panels) to be mounted vertically (flush with wall) to save space. Alternatively, the 2U bracket can be installed horizontally under a desk, making it easy to access installed equipment directly from your workspace. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.

Perfect for SoHo (small office, home office) environments, the wallmount bracket features a sturdy steel design constructed to EIA-310 19in rack standards, and offers space-savings for environments lacking the footprint space for a full size server equipment rack. Suitable for mounting on virtually any wall/ceiling surface (e.g. drywall), the bracket mounting holes are positioned at exactly 16in apart, matching standard construction framework.

Need more storage space? StarTech also offers a 3U 19in Wallmount Bracket and a 4U 19in Wallmount Bracket.

The StarTech Advantage

Specs




Features


Rack capacity

The spase that device fill in rack.

2U


Type

Characteristics of the device.

Wall mounted rack


Maximum weight capacity

The maximum weight that the product is designed to hold/store.

56.7 kg


Product colour

The colour e.g. red, blue, green, black, white.

Black


Material

The material from which a thing is or can be made e.g. wood, plastic.

Steel


Frame type

Open


Product design

The creation of a plan or convention for the construction of an object or a system.

2-post


Number of fans

The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).

0 fan(s)


Mounting hole shape

Square


Certification

CE, REACH, TAA


Weight & dimensions


Size (imperial)

Physical dimension.

48.3 cm (19")


Width

The measurement or extent of something from side to side.

504 mm


Depth

The distance from the front to the back of something.
1 mm


Height

The measurement of the product from head to foot or from base to top.
5 mm


Inner width

45 cm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

748.7 g



Packaging data


Nuts included




Number of nuts

8


Screws included




Number of screws



Wall mounting kit




Mounting kit




Manual




Package width

The distance from one side of the packaging to the other.
8 mm


Package depth

The distance from the front to the back of the packaging.

533 mm


Package height

The distance from the top to the bottom of the packaging.
6 mm


Package weight

Weight of the packaged product.

1.2 kg


Technical details


Compliance certificates

RoHS


Logistics data


Harmonized System (HS) code

85381000


Other features


Compliance industry standards

List of characteristics that describe methods of compliance to industry-defined standards for the product

EIA/ECA-310-E
