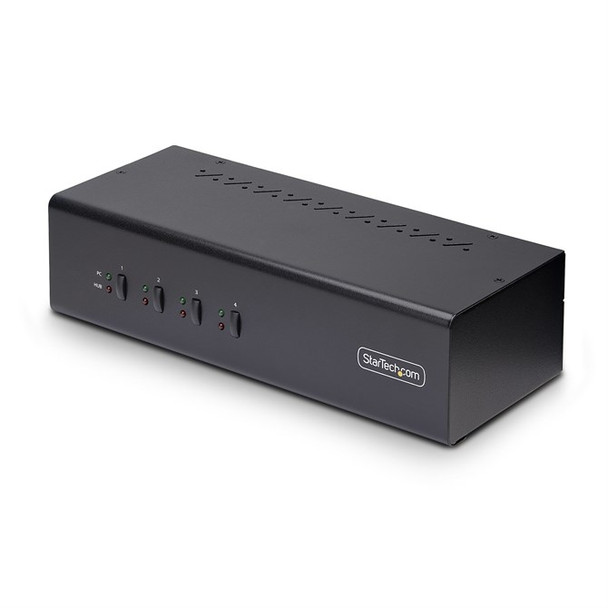

StarTech.com 4-Port Dual-Monitor DisplayPort KVM Switch 4K 60Hz 2x USB 5Gbps Hub P4DD46A2-KVM-SWITCH

Share a mouse, keyboard, USB 5Gbps hub, and dual 4K 60Hz DisplayPort displays between four DisplayPort-enabled computers

This Dual-Monitor KVM Switch enables users to switch between four desktops that are USB-A and DisplayPort enabled. It allows for sharing of dual-4K 60Hz DisplayPort monitors, a keyboard and mouse, and two USB 5Gbps devices.

Fast Switching with USB Emulation

USB Emulation technology enables faster switching of a keyboard, video, and mouse compared to traditional KVMs. USB Emulation also ensures compatibility with combination keyboards/mice as well as keyboards featuring additional function keys.

Dual-4K 60Hz Displays & USB 5Gbps Hub Ports

This TAA-Compliant KVM Switch supports dual-4K 60Hz DisplayPort monitors, making it ideal for working with high-resolution graphics or video. Additionally, it offers two USB 3.2 Gen 1 (5Gbps) Hub Ports for fast data transfer, and two USB 2.0 HID Ports for the keyboard and mouse. 8kV air and 6kV contact Electrostatic Discharge (ESD) protection.

Customizable Switching

This Universal KVM Switch provides various switching options, including hotkey or push-button switching. Hotkeys allow for independent switching of USB/Video and Audio, enabling audio playback from one computer while controlling another. An audible buzzer confirms hotkey input, and LEDs provide a visual status of the selected host.

Enhance Productivity and Device Management with the StarTech Connectivity Tools Application

Developed to improve performance and security, StarTech Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
- Advanced Windows Layout Utility: Setup and save custom windows layouts.
- MAC Address Pass-Through Utility: Improve network security.
- USB Event Monitoring Utility: Track and log connected USB devices.
- Wi-Fi Auto Switch Utility: Enable users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech Connectivity Tools application, please visit: startech /connectivity-tools

The StarTech Advantage

Specs




Ports & interfaces


Number of computers controlled

The amount of computers controlled by this device.

4


Keyboard port type

The type of socket in the device for connecting a keyboard e.g. USB.

USB


Mouse port type

USB


Video port type

The type of socket in the device for connecting a video e.g. SCART.

DisplayPort


DisplayPorts quantity

Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.

8


DisplayPort version

1.2


USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity

4


Console ports

3.5mm headphone, 3.5mm mic, DisplayPort


Console DisplayPorts ports quantity

2


USB hub




USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity

2


Audio connections

Cables used to connect audio inputs or audio outputs to another device e.g, audio amplifier.




Headphone outputs

Number of sockets /ports where headphones are connected.

5


Number of microphone inputs

5


DC-in jack

The socket/plug where the DC electricity supply connects to the device.




Performance


HD type

Type of supported High Definition (e.g. Full HD, 4K Ultra HD).

4K Ultra HD


Maximum resolution

The maximum number of pixels that can be displayed in the image. It is usually quoted as width - height,: for example, "1024 - 768" means the width is 1024 pixels and the height is 768 pixels.

3840 x 2160 pixels


Video bandwidth

60 Hz


Data transfer rate (max)

5 Gbit/s


Scan interval
, 20, 30, 40, 50, 60 s


HDCP

High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.




Plug and Play

Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.




Daisy chain




Design


Rack mounting

The type of mounting that can position devices in a shelving system (rack).




Product colour

The colour e.g. red, blue, green, black, white.

Black


LED indicators




Push button




Hot keys




Mean time between failures (MTBF)

Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
3062 h


Display


Built-in display

A display which is part of the product, so you do not need to attach another display.





Display


On Screen Display (OSD)




Power


Power source

What is providing power for the product e.g. mains electricity.

DC


Input voltage

The voltage (V) which is required to power the product.
0 - 240 V


Input current

1 A


Output voltage
V


Output current

3 A


External power adapter




Compatible power plug types

EU, JP, UK, US


Sustainability


Sustainability compliance




Compliance certificates

RoHS, Trade Agreements Act (TAA)


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 50 -C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-20 - 60 -C


Operating relative humidity (H-H)

0 - 90%


Weight & dimensions


Width

The measurement or extent of something from side to side.
0 mm


Depth

The distance from the front to the back of something.

253 mm


Height

The measurement of the product from head to foot or from base to top.

66 mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

1.2 kg


Packaging data


Package width

The distance from one side of the packaging to the other.

332 mm


Package depth

The distance from the front to the back of the packaging.
2 mm


Package height

The distance from the top to the bottom of the packaging.
9 mm


Package weight

Weight of the packaged product.

1.4 kg


Packaging content


Quick installation guide




AC adapter included




Other features


IP control




Logistics data


Master (outer) case width

513 mm


Master (outer) case length

352 mm


Master (outer) case height

301 mm


Products per master (outer) case

6 pc(s)
