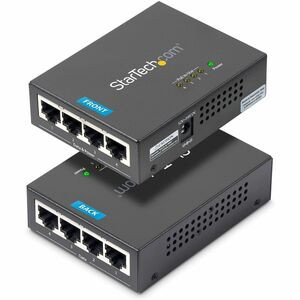

StarTech.com 4-Port Gigabit Midspan - PoE+ Injector - 802.3at/af POEINJ4G

This Gigabit midspan PoE+ injector is a cost-effective alternative to upgrading your existing network switch to a PoE-capable model.

It supplies up to 30 Watts output to each port, so you can easily power and access up to four high-power PoE-compliant devices - such as IP cameras - using standard Ethernet cable.

More power, with less cost and hassle
This versatile midspan PoE+ injector is suited for almost all PoE device classes, including wireless access points, as well as IP phones and cameras. The high-power PoE+ injector offers 120W total power distribution and delivers full power - up to 30.8W - from each port. Now, you can easily scale and power your PoE+ devices across long distances, even in remote locations where a typical power outlet is unavailable.

Plus, the cost-effective Power over Ethernet+ injector lets you connect your PoE-powered devices (PDs) to a non-PoE-capable switch, avoiding the expense and aggravation of upgrading your existing switch to a PoE-enabled model.

Easy to set up in mixed environments
This injector is the perfect solution for a variety of environments. It features a wall-mountable rugged metal casing, but is palm-sized making it perfect for desktop placement too.

With plug-and-play operation, you can enjoy fast and hassle-free setup without disrupting your workflow.

Convenient, protected connections
Not sure which class your PoE devices are? The Gigabit midspan PoE+ injector automatically detects the power requirements of your PoE PDs, and delivers the appropriate level of power without damaging your devices.

With integrated circuit protection between each port, your devices are also protected from power interference.

The POEINJ4G is backed by a StarTech 2-year warranty and free lifetime technical support.

Specs




Performance


Type

Characteristics of the device.

Network transmitter


Maximum transfer distance

The greatest distance over which the data/signal can be transferred.
0 m


Data transfer rate

Rate at which data can be transferred, usually measured in units per second. May vary with network configurations.
00 Mbit/s


Auto MDIX IEEE




Auto-negotiation




Duplex system

A duplex communication system is a point-to-point system composed of two connected parties or devices that can communicate with one another in both directions, simultaneously.

Full


Plug and Play

Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.




Mean time between failures (MTBF)

Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.

50000 h


Network


Cabling technology

Type of cable technology performance.
/100/1000Base-T(X)


Networking standards

The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u


Ports & interfaces


Ethernet LAN (RJ-45) ports

Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

8


Power over Ethernet (PoE) ports quantity

4


DC-in jack

The socket/plug where the DC electricity supply connects to the device.




Design


Product colour

The colour e.g. red, blue, green, black, white.

Black


Housing material

What the casing of the product is made of.

Steel


LED indicators

PoE, Power


Certification

CE, FCC


Power


AC input voltage

The voltage of the AC electricity that is inputted into the product.
0 - 240 V


Power consumption (max)

The maximum amount of power used by the device.
0 W


Output voltage

52 V


Output current

2.31 A



Power


Power over Ethernet (PoE)

The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.




Power plug type

Type M


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 50 -C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-10 - 70 -C


Operating relative humidity (H-H)

5 - 95%


Weight & dimensions


Width

The measurement or extent of something from side to side.

70 mm


Depth

The distance from the front to the back of something.

94 mm


Height

The measurement of the product from head to foot or from base to top.

26 mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
4 g


Packaging content


Cables included

AC


Manual




AC adapter included




Packaging data


Package width

The distance from one side of the packaging to the other.
0 mm


Package depth

The distance from the front to the back of the packaging.

305 mm


Package height

The distance from the top to the bottom of the packaging.

90 mm


Package weight

Weight of the packaged product.

1.63 kg


Certificates


Compliance certificates

RoHS


Logistics data


Harmonized System (HS) code

85176990
