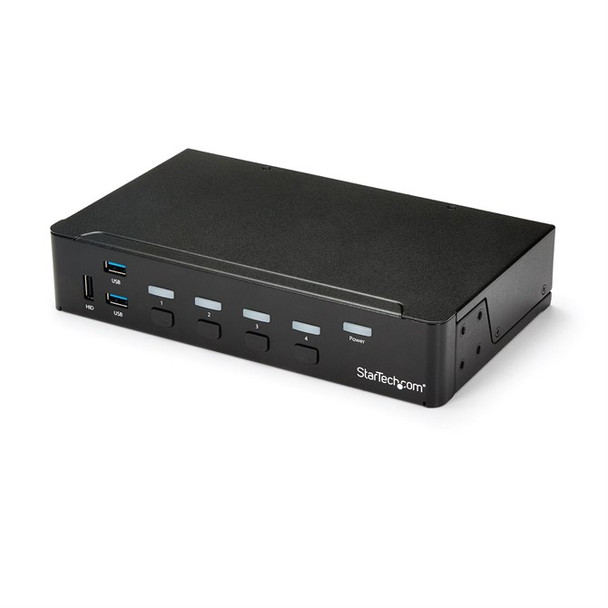

StarTech.com 4-Port HDMI KVM Switch - USB 3.0 - 1080p SV431HDU3A2

This 4-Port USB 3.0 HDMI- KVM switch lets you control four HDMI computers with a single monitor, keyboard and mouse. The KVM also features 3.5 mm audio and a built-in 3-port USB 3.0 hub.

Convenient and cost-effective USB 3.0 peripheral sharing
This KVM switch offers a built-in 3-port USB 3.0 hub that's separate from your HID keyboard and mouse, so you can share USB peripheral devices between each connected computer and avoid the expense of separate equipment. The USB 3.0 hub automatically switches your connected USB devices to the selected computer, saving you the hassle of disconnecting and reconnecting peripherals.

With support for USB 3.0, you can achieve data transfer rates up to 5Gbps, to ensure flawless performance for your USB peripherals - great for quickly transferring data to external USB 3.0 drives.

HD picture quality
Offering support for high-definition 1080p resolutions, this 4-port HDMI KVM switch has the ability to drive HDMI displays with crystal clarity, making it ideal for graphical applications that require 1920 x 1080 video resolutions.

Complete multimedia control
The KVM switch features auxiliary 3.5 mm audio ports that enable you to share independent analog audio, from each of your connected computers, with your desktop speaker set. Independent audio, along with 1080p HDMI video, gives you full multimedia control between different computers, making this KVM perfect for creative professional applications such as video and sound design or editing.

The SV431HDU3A2 is backed by a StarTech 2-year warranty and free lifetime technical support.

Rackmount your KVM switch
If you-d like to mount this KVM switch to your server rack, StarTech offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.

Specs




Ports & interfaces


Number of computers controlled

The amount of computers controlled by this device.

4


Keyboard port type

The type of socket in the device for connecting a keyboard e.g. USB.

USB


Mouse port type

USB


Video port type

The type of socket in the device for connecting a video e.g. SCART.

HDMI


Console ports

3.5mm headphone, HDMI, USB A


Console USB ports quantity

4


USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity

3


USB connector type

The type of USB connector/port that this product has.

USB Type-A


Audio connections

Cables used to connect audio inputs or audio outputs to another device e.g, audio amplifier.




Headphone outputs

Number of sockets /ports where headphones are connected.

4


DC-in jack

The socket/plug where the DC electricity supply connects to the device.




Network


Ethernet LAN

An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.




Performance


Maximum resolution

The maximum number of pixels that can be displayed in the image. It is usually quoted as width - height,: for example, "1024 - 768" means the width is 1024 pixels and the height is 768 pixels.
20 x 1080 pixels


Plug and Play

Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.




Daisy chain




Audio channels

2.0


Design


Rack mounting

The type of mounting that can position devices in a shelving system (rack).




Product colour

The colour e.g. red, blue, green, black, white.

Black


Maximum cable length
000 m


LED indicators

Link, Power


Hot keys




Mean time between failures (MTBF)

Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
2000 h


Certification

CE, FCC, UL, PSE


Display


Built-in display

A display which is part of the product, so you do not need to attach another display.




On Screen Display (OSD)





Power


Input voltage

The voltage (V) which is required to power the product.
0-240 V


Input current

0.6 A


Output voltage
V


Output current

1.5 A


Power plug type

Type M


Compatible power plug types

AU, EU, UK, US


Sustainability


Compliance certificates

RoHS


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 40 -C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-10 - 60 -C


Operating relative humidity (H-H)

0 - 80%


Weight & dimensions


Width

The measurement or extent of something from side to side.
0 mm


Depth

The distance from the front to the back of something.

220 mm


Height

The measurement of the product from head to foot or from base to top.

43 mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

1.1 kg


Packaging data


Package width

The distance from one side of the packaging to the other.

297 mm


Package depth

The distance from the front to the back of the packaging.

247 mm


Package height

The distance from the top to the bottom of the packaging.

85 mm


Package weight

Weight of the packaged product.

1.6 kg


Packaging content


Quick installation guide




Rubber feet




Other features


Audio support




IP control




Logistics data


Harmonized System (HS) code

85176200
