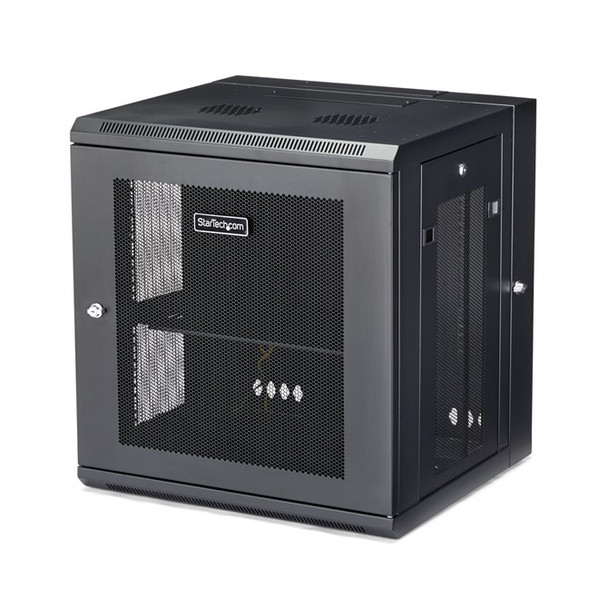

StarTech.com 4-Post 12U Wall Mount Network Cabinet with 1U Shelf 19 Hinged Wall- RK12WALHM

Securely mount your servers, network and telecom equipment to the wall, with this ventilated, lockable enclosure

This 12U server or network rack cabinet lets you mount your EIA-310 compliant equipment to the wall, in a secure enclosure that has a hinged rear door for easy access to your equipment. The enclosure features adjustable mounting depth from 2 to 16 in. to provide a robust storage solution for your rack-mount equipment.

To provide secure stability for your heaviest equipment, this rack offers 4-post mounting, supporting a higher weight capacity per U than 2-post racks and supporting a total load capacity of up to 200 lb. (90 kg).

Save space in your office or server room

Save valuable floor space by wall-mounting the enclosure. The wall-mounted design makes this enclosure the ideal solution for optimizing equipment storage in your classroom, retail store, server room or office. This rack also includes a 1U shelf that gives you a stable surface for placing equipment that's not rack-mountable or storing your tools.

Easily access your servers and network equipment

The wall-mount network rack makes it easy to access your equipment and cabling, with a rear hinge that swings the enclosure away from the wall. By flipping the enclosure 180 degrees upon installation, you can reverse the direction of the hinge so that the enclosure can swing open from left or the right, depending on your preference.

The 12U network cabinet features a removable and reversible front door and removable side panels, each with quick-release mechanisms, so you can easily access your equipment. Plus, each door and panel on this rack features an independent lock, ensuring your equipment is secure.

For hassle-free cable management, the rack includes a 3 meter roll of hook-and-loop cable tie that makes it easy to keep your cables neat and tidy by binding them together or binding them to the rack. The self-gripping fabric can be cut to any size, enabling a wrap-around solution for the cables of any rack-mount equipment.

Securely protect your equipment

This server rack enclosure features heavy-duty steel construction, with lockable doors at all entrances. For hassle-free equipment installation, the mounting rails on the rack can be switched for use with square holes and cage nuts, or tapped rails.

To ensure your equipment is running at an optimal temperature, the server rack/cabinet promotes passive cooling. It features mesh doors and vented top and bottom panels for maximum airflow.

For simple and sturdy mounting, the rack's mounting holes are positioned 16 in. apart, so you can securely attach it to a wall using wall studs.

Specs




Features


Rack capacity

The spase that device fill in rack.
U


Type

Characteristics of the device.

Wall mounted rack


Maximum weight capacity

The maximum weight that the product is designed to hold/store.

90 kg


Product colour

The colour e.g. red, blue, green, black, white.

Black


Material

The material from which a thing is or can be made e.g. wood, plastic.

Steel


Frame type

Closed


Product design

The creation of a plan or convention for the construction of an object or a system.

4-post


Back door construction

Steel


Front door construction

Steel


Side panel construction

Steel


Removable front door




Key lock




Front door key lock




Rack rail thickness

2 mm


Adjustable mounting rails




Cable management

Description of improved cable management




Mounting hole shape

Square


Weight & dimensions


Width

The measurement or extent of something from side to side.

610 mm


Depth

The distance from the front to the back of something.

550 mm


Height

The measurement of the product from head to foot or from base to top.

640 mm


Inner width

59.5 cm


Inner depth

54.5 cm



Weight & dimensions


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

28.9 kg


Mounting depth (min)

6 cm


Mounting depth (max)

40 cm


Packaging data


Nuts included




Number of nuts

50


Screws included




Number of screws

50


Manual




Package width

The distance from one side of the packaging to the other.

675 mm


Package depth

The distance from the front to the back of the packaging.

625 mm


Package height

The distance from the top to the bottom of the packaging.

720 mm


Package weight

Weight of the packaged product.

32.7 kg


Technical details


Compliance certificates

CE, RoHS


Logistics data


Harmonized System (HS) code

85381000


Master (outer) case width

675 mm


Master (outer) case length

625 mm


Master (outer) case height

720 mm


Products per master (outer) case

1 pc(s)


Other features


Compliance industry standards

List of characteristics that describe methods of compliance to industry-defined standards for the product

EIA/ECA-310-E
