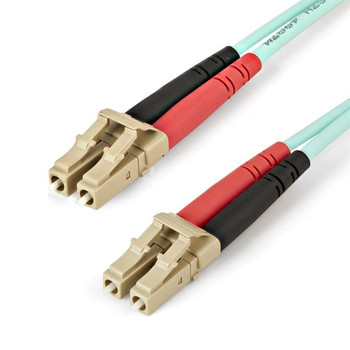

StarTech.com 5m 16.4ft LC to LC UPC OM4 Switchable Fiber Optic Cable 50/125�m 10 450FBLCLC5SW

Facilitate an OM4 fiber connection with toolless polarity swapping for seamless compatibility

LC/UPC to LC/UPC OM4 Multimode Switchable Fiber Optic Cable enables 40/100G network connections. The retractable strain-relief housings enable toolless in-field polarity swapping. Color-coded LC-Duplex connectors ensure error-free polarity configuration.

Engineered for Optimal Performance

Precision-manufactured ceramic ferrules ensure accurate fiber alignment to prevent connectivity issues and minimize insertion loss. Designed for reliability in high-density network applications, the LC to LC UPC polished fiber ends greatly improves return loss characteristics. The Laser-Optimized Multi-Mode Fiber (LOMMF) OM4 fiber patch cable is ideal for 850nm and 1300nm Vertical-Cavity Surface-Emitting Laser (VCSEL) and LED sources.

Compatibility

This multimode 50/125-m fiber optic patch cord is backward compatible with OM3 and 1/10/40G networks, ensuring a reliable connection in legacy fiber environments.

LSZH Cable Jacket

Housed in a LSZH (Low-Smoke, Zero-Halogen) flame-retardant jacket, this OM4 fiber cable emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer cable installations in areas with poor ventilation including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.

Each OM4 fiber cable is also individually tested for insertion loss performance that meets or exceeds the TIA/EIA-568 industry standard, for guaranteed compatibility and 100% reliability.

The StarTech Advantage

Specs




Features


Cable length

How long the cable is.

5 m


Fibre optic type

The standardised properties of the fiber optic cable.

OM4


Connector 1

This is the first connector in the device.

LC


Connector 2

This is the second connector in the device.

LC


Connector 1 gender

The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.

Male


Connector 2 gender

The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.

Male


Cable type

Type of cable e.g. electicity cable, optical cable.

LOMM


Product colour

The colour e.g. red, blue, green, black, white.

Aqua colour


Full duplex

A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.




Core diameter

The diameter of the core, which is the material at the centre e.g. the metal in an electrical wire.

50 -m


Cladding diameter

The diameter of the cladding, which is the material around the centre (core) e.g. the plastic coating in an electrical wire.
5 -m


Fiber mode structure

Multi-mode


Wavelengths supported

850,1300 nm


Data transfer rate

Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations.
0 Gbit/s



Features


Jacket material

Low smoke zero halogen (LSZH)


Sustainability


Sustainability compliance




Certificates


Compliance certificates

CE


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

-20 - 60 -C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-20 - 60 -C


Weight & dimensions


Cable diameter

The distance from one side of the cable to the other, with a straight line going through the middle of the cable.

2.9 mm


Bending radius

6 cm


Packaging content


Quantity per pack

1 pc(s)


Logistics data


Master (outer) case width

410 mm


Master (outer) case length

410 mm


Master (outer) case height

430 mm


Products per master (outer) case
0 pc(s)
