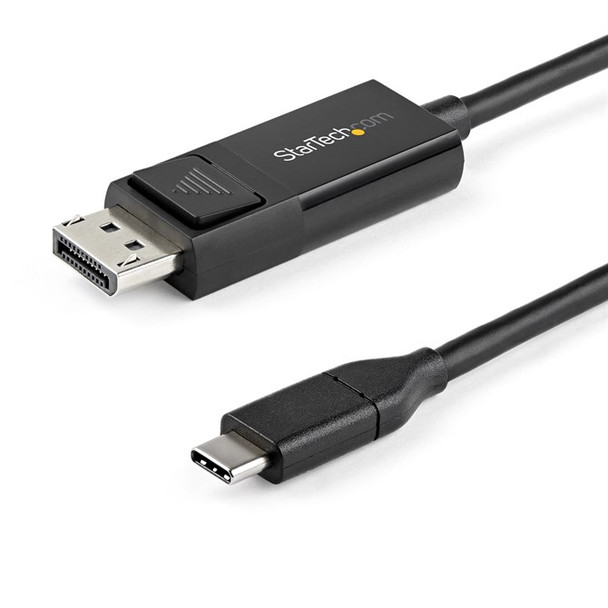

StarTech.com 6.6ft 2m USB C to DisplayPort 1.2 Cable 4K 60Hz - Bidirectional DP CDP2DP2MBD

Connect a USB-C- device to a DisplayPort- display, or a DP device to a USB-C display with this versatile, bi-directional cable

This USB-C- to DisplayPort- 1.2 cable lets you connect your USB Type-C- (or Thunderbolt 3-) device to a DisplayPort display, or a DP device to a USB-C display with just one cable.

Easy & Clutter-Free Installation

At 6.6 ft. (2 m) in length, this bidirectional adapter cable delivers a direct connection that eliminates excess adapters and cabling, ensuring a tidy, professional installation. For shorter installations, we also offer a 3.3 ft. (1 m) USB-C to DP cable, enabling you to choose the right cable length for your custom installation needs.

As well, the cable works with both Mac and Windows devices and allows for plug-and-play installation, removing the need for any additional software or drivers.

Convenient, Bi-Directional Support

Use this USB-C to DisplayPort adapter cable to output 4K video and audio to a DP display from the USB Type-C (or Thunderbolt 3) port on your laptop or mobile device. With bi-directional capabilities, this cable can also connect your DisplayPort-enabled devices to a display featuring USB-C input.

Ultra HD 4K Resolution at 60Hz

This USB-C to DP 1.2 adapter cable lets you harness the video capabilities that are built into your computer's USB Type-C (or DisplayPort) connection, to deliver the astonishing quality of UHD to your 4K display. For even higher resolution and bandwidth support, we offer a USB-C to DP 1.4 cable, which is the perfect accessory for early adopters of 8K.

CDP2DP2MBD is backed by a StarTech 3-year warranty and free lifetime technical support.

Note: Your USB 3.1 Type-C device must support DP Alt Mode to work with this cable.

Specs




Features


Connector 1 form factor

Straight


Connector 2 form factor

Straight


Cable length

How long the cable is.

2 m


Connector 1

This is the first connector in the device.

USB Type-C


Connector 2

This is the second connector in the device.

DisplayPort


Connector 1 gender

The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.

Male


Connector 2 gender

The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.

Male


HDCP

High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.




HDCP version

1.4/2.2


DisplayPort version

1.2


High Dynamic Range (HDR) supported




Maximum resolution

The maximum number of pixels that can be displayed in the image. It is usually quoted as width - height,: for example, "1024 - 768" means the width is 1024 pixels and the height is 768 pixels.

3840 x 2160 pixels


Bandwidth

21600 MB/s


Maximum refresh rate

60 Hz


HBR2 support




Product colour

The colour e.g. red, blue, green, black, white.

Black


Chipset

Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.

Chrontel - CH7213C-BF, VIA Labs - VL170


Supported audio channels

7.1


Plug and Play

Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.




Converter type

Active video converter



Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 45 -C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-10 - 70 -C


Operating relative humidity (H-H)
- 85%


Certificates


Compliance certificates

CE, RoHS


Weight & dimensions


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

77 g


Width

The measurement or extent of something from side to side.

220 mm


Depth

The distance from the front to the back of something.
38 mm


Height

The measurement of the product from head to foot or from base to top.
mm


Packaging data


Package width

The distance from one side of the packaging to the other.

226 mm


Package depth

The distance from the front to the back of the packaging.
4 mm


Package height

The distance from the top to the bottom of the packaging.
mm


Package weight

Weight of the packaged product.

84 g


Packaging content


Quantity per pack

1 pc(s)


Logistics data


Harmonized System (HS) code

84733080


Master (outer) case width

327 mm


Master (outer) case length

497 mm


Master (outer) case height

212 mm


Products per master (outer) case

80 pc(s)
