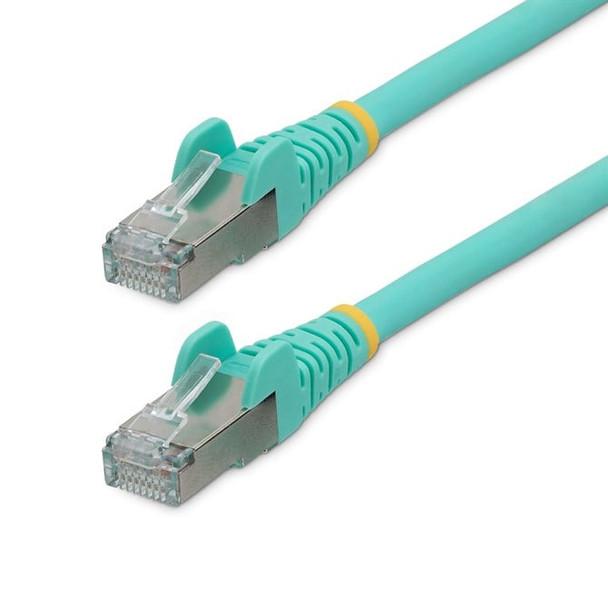

StarTech.com 7.5m CAT6a Ethernet Cable - Aqua - Low Smoke Zero Halogen LSZH - 10 NLAQ-750-CAT6A-PATCH

LSZH | 10GbE | 100W PoE++ | Snagless RJ-45

Cat6a Ethernet Low-Smoke Zero-Halogen (LSZH) Shielded cables support Multi-Gigabit/Multi-speed 1/2.5/5Gbps/10Gbp connections. It offers robust protection against electromagnetic interference (EMI/RFI) and noise, ensuring a fast, safe, and reliable network.

Low-Smoke Zero-Halogen (LSZH) CAT6A Ethernet Cable

LSZH Cat6a Network Cables are more eco-friendly than PVC cables. In the event of a fire, LSZH cables produce low levels of corrosive fumes and smoke. Low levels of acrid combustion pollutants promote increased visibility, resulting in safe and quick building evacuations by staff and first responders.
0W Power over Ethernet (PoE++)

This high performance Ethernet cable complies with the IEEE 802.3bt-2018 standard. It supports 100W PoE++, providing ample power to Type 4 PoE devices.

RJ45 Connectors with Snagless Clips

The Cat6a cable features snag-less connectors. Snagless molded boots protect the tab/latch on each RJ45 connector. The boots prevent the cable from snagging during cable routing and/or installation into network devices.

The molded boots feature integrated strain reliefs that prevent sharp connector/cable angles at the termination points. ETL Verified

Our Cat6 Ethernet Cables are ETL Verified to meet ANSI/TIA-568.2-D standards, ensuring peak performance for high-speed 10G applications. Independent testing confirms compliance with strict insertion loss, return loss, and crosstalk limits, maintaining stable signal transmission over longer runs. The STP shielding is verified for EMI resistance, for guaranteed reliability in demanding environments.

This product is backed for life, including free lifetime 24/5 multi-lingual technical assistance.

Specs




Features


Product colour

The colour e.g. red, blue, green, black, white.

Aqua colour


Cable length

How long the cable is.

7.5 m


Cable standard

The category of the cable, which is determined by performance characteristics and test requirements.

Cat6a


Cable shielding

The protective layer for the cable, typically made of plastic.

S/FTP (S-STP)


Connector 1

This is the first connector in the device.

RJ-45


Connector 2

This is the second connector in the device.

RJ-45


Connector 1 gender

The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.

Male


Connector 2 gender

The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.

Male


Connector 1 form factor

Straight


Connector 2 form factor

Straight


Connector shielding




Jacket material

Low smoke zero halogen (LSZH)


Cable shape

Round


Conductor type

Stranded


Conductor material

Copper


Cabling technology

Type of cable technology performance.
GBase-T


AWG wire size

27


Data transfer rate

Rate at which data can be transferred, usually measured in units per second. May vary with network configurations.
000 Mbit/s


Frequency

500 MHz



Features


Power over Ethernet (PoE)

The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.




Power over Ethernet (PoE) type supported

PoE++ (4PPoE)


Total Power over Ethernet (PoE) budget
0 W


Snagless cable boot




Plug and Play

Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.




Certificates


Compliance certificates

CE, RoHS


Weight & dimensions


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

257.5 g


Packaging content


Quantity per pack

1 pc(s)


Packaging data


Package width

The distance from one side of the packaging to the other.
0 mm


Package depth

The distance from the front to the back of the packaging.
0 mm


Package height

The distance from the top to the bottom of the packaging.

40 mm


Package weight

Weight of the packaged product.

266.2 g


Logistics data


Master (outer) case width

430 mm


Master (outer) case length

380 mm


Master (outer) case height

290 mm


Products per master (outer) case

30 pc(s)


Technical details


Sustainability compliance
