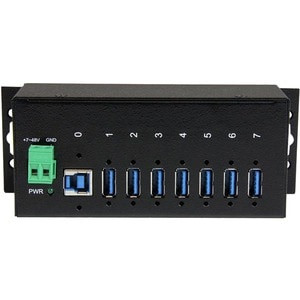

StarTech.com 7-Port Industrial USB 3.0 Hub with ESD Protection~7-Port USB 3.0 Hu ST7300USBME

Industrial-grade | 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail | 5 Gbps

This TAA compliant 7-port industrial USB 3.2 Gen 1 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.

Perfect for Harsh Environments

This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-48V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.

Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0-C to 70-C) and offers surge and ESD protection to each USB port, which can help prevent damage to your connected devices.

Connect & Charge More USB Devices

Designed for a high volume of connections, this robust USB 3.2 Gen 1 hub offers 7 connection ports, for connecting more USB devices and peripherals.

The hub also supports USB battery charging specification 1.2, delivering up to 2.4A on any port to a maximum of 35W total, so you can charge your mobile devices faster than traditional USB ports allow.

Locate the Hub Where You Need It Most

With versatile installation options, you can install the hub where it-s best suited for your environment. With built-in mounting brackets and included DIN mount rails, you can securely mount the USB 3.2 Gen 1 hub to most surfaces such as a wall, under a desk or rack.

StarTech offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech -s line of industrial USB hubs.

Works with Older USB Devices

The rugged USB hub supports the full 5Gbps bandwidth of USB 3.2 Gen 1 and is backward compatible with previous USB devices. You can connect your legacy peripherals alongside your newer USB 3.2 Gen 1 devices without any disruptions.

The ST7300USBME is backed by a StarTech 2-year warranty and free lifetime technical support.

The StarTech Advantage

Specs




Ports & interfaces


Host interface

Interface that enables a host controller to communicate with a driver.

USB 3.2 Gen 1 (3.1 Gen 1) Type-B


Hub interfaces

A hub is a device for connecting multiple devices together. The hub interface is where the hub connects to other devices via input/output (I/O) ports.

USB 3.2 Gen 1 (3.1 Gen 1) Type-A


Ports quantity

The number of ports or external interfaces to which other equipment can be connected.

7


Terminal block port




Features


Data transfer rate

Rate at which data can be transferred, usually measured in units per second. May vary with network configurations.

5000 Mbit/s


Product colour

The colour e.g. red, blue, green, black, white.

Black


Housing material

What the casing of the product is made of.

Steel


Surge protection




LED indicators

Power


Certification

CE, FCC, RoHS, TAA, REACH


Power


Power source type

What the power source is.

DC


Input voltage

The voltage (V) which is required to power the product.

7 - 48 V


Weight & dimensions


Width

The measurement or extent of something from side to side.

54 mm


Depth

The distance from the front to the back of something.
5 mm


Height

The measurement of the product from head to foot or from base to top.

45 mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

325 g


Packaging data


Package width

The distance from one side of the packaging to the other.

295 mm


Package depth

The distance from the front to the back of the packaging.
0 mm



Packaging data


Package height

The distance from the top to the bottom of the packaging.

69 mm


Package weight

Weight of the packaged product.

600 g


Packaging content


Cables included

USB


Manual




Terminal block included




DIN rail kit included




Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 70 -C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-20 - 85 -C


Operating relative humidity (H-H)

5 - 95%


Performance


Mean time between failures (MTBF)

Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
6106 h


Logistics data


Master (outer) case width

397 mm


Master (outer) case length

511 mm


Master (outer) case height

326 mm


Products per master (outer) case
pc(s)


Harmonized System (HS) code

84719000


Other features


Chipset

Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.

Genesys Logic - GL3520
