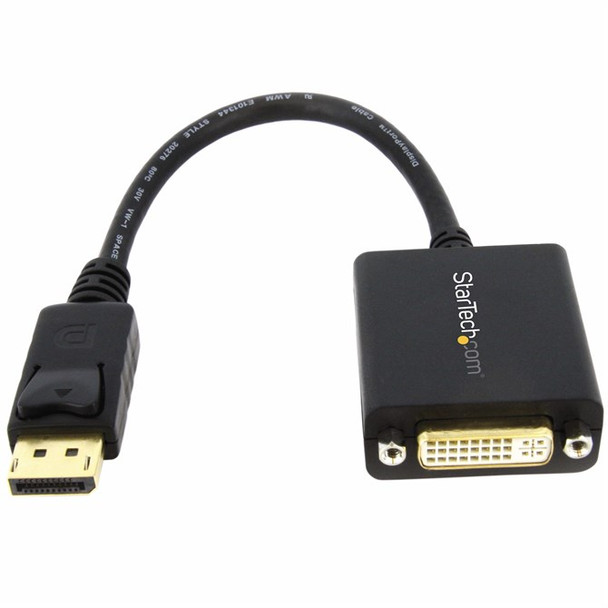

StarTech.com DisplayPort to DVI Adapter - DisplayPort to DVI-D Adapter Video Con DP2DVI2

Connect your DVI monitor to a DisplayPort equipped computer

The DP2DVI2 DisplayPort- to DVI Video Adapter Converter lets you connect a DVI monitor to DisplayPort-enabled desktop or laptop computers.

Supporting display resolutions of up to 1920x1200 allowing you to take full advantage of single link DVI capability. DP2DVI2 is a passive adapter that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.

StarTech also offers the DP2DVIS, an Active DisplayPort to DVI adapter.

Backed by a StarTech 3-year warranty and free lifetime technical support.

The StarTech Advantage

Specs




Features


Connector 1 form factor

Straight


Connector 2 form factor

Straight


Cable length

How long the cable is.

0.152 m


Connector 1

This is the first connector in the device.

DisplayPort


Connector 2

This is the second connector in the device.

DVI-I


Connector 1 gender

The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.

Male


Connector 2 gender

The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.

Female


HDCP

High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.




HDCP version

1.4


DisplayPort version

1.2


Dual Link DVI

A dual-link DVI interface sends data over both of the DVI links to the monitor, and this is how higher resolutions are achieved. With dual-link DVI, a resolution of 2048 x 1536 is possible.




Maximum resolution

The maximum number of pixels that can be displayed in the image. It is usually quoted as width - height,: for example, "1024 - 768" means the width is 1024 pixels and the height is 768 pixels.
20 x 1200 pixels


Supported graphics resolutions

The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.

640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900, 1600 x 600, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)


Supported video modes

The video modes that can be displayed by the device.

480p, 720p, 1080p


Maximum refresh rate

60 Hz


HBR2 support




Product colour

The colour e.g. red, blue, green, black, white.

Black


Plug and Play

Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.




Converter type

Passive video converter


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 70 -C



Operational conditions


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-10 - 80 -C


Operating relative humidity (H-H)

5 - 90%


Certificates


Compliance certificates

RoHS


Certification

CE, FCC, REACH


Weight & dimensions


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

43 g


Width

The measurement or extent of something from side to side.

42 mm


Depth

The distance from the front to the back of something.

254 mm


Height

The measurement of the product from head to foot or from base to top.
mm


Packaging data


Package width

The distance from one side of the packaging to the other.
0 mm


Package depth

The distance from the front to the back of the packaging.

220 mm


Package height

The distance from the top to the bottom of the packaging.
mm


Package weight

Weight of the packaged product.

52 g


Packaging content


Quantity per pack

1 pc(s)


Logistics data


Harmonized System (HS) code

84733080


Master (outer) case width

325 mm


Master (outer) case length

500 mm


Master (outer) case height

220 mm


Products per master (outer) case
0 pc(s)
