Startech.Com

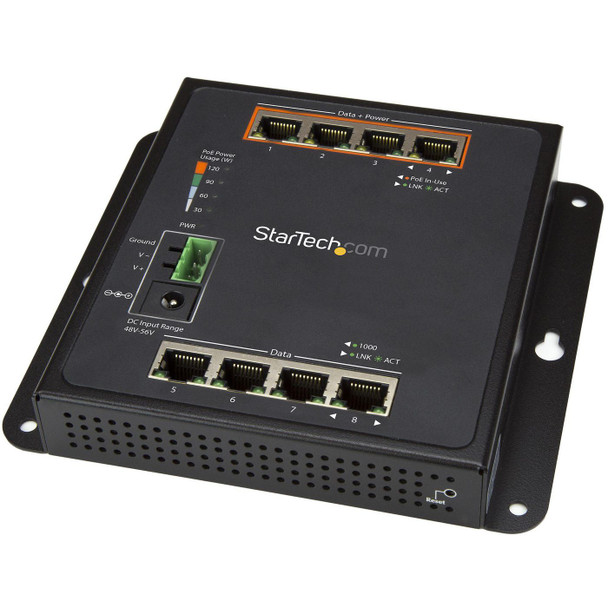

StarTech.com IES81GPOEW ETHERNET SWITCH 8-PORT IES81GPOEW
- UPC:
- 0000000000000
- MPN:
- IES81GPOEW
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
Connect up to 8 different GbE (4 PoE+) devices, using this IP30 industrial Ethernet switch with intelligent Layer 2 managementEasily deploy or scale your network with this Gigabit Ethernet switch, by adding eight copper Gigabit Ethernet (GbE) connections, including four PoE+ ports. This IP30 industrial network switch provides intelligent Layer 2 management. Its rugged, compact design and wall-mount option with front access make it ideal for demanding applications, even where space is limited.Expand your networkThis Gigabit Ethernet switch lets you expand your network by connecting up to eight RJ45 devices (four PoE+). The 8-port switch enables up to eight users to share files and devices, such as printers and scanners, over a LAN connection, by enhancing your existing network capacity with additional ports.Supports PoE+ for flexible useThe switch gives you the freedom to place your equipment in locations where power outlets are not available, with support for Power over Ethernet Plus. The network switch provides abundant PoE power, with up to 30 watts for each PoE port (120W budget).Wall-mountable with front accessWith its compact design, you can wall-mount the Gigabit switch to provide convenient front access to ports and indicators. It’s ideal for a wide range of applications, including tight installation areas with significant electromagnetic interference, such as control cabinets and panels. The network switch is also DIN-rail mountable.Efficient Layer 2 managementThe switch delivers efficient and stable performance, with Layer 2 management capabilities. This lets you control packet traffic on a busy network, and customize your settings to achieve optimal network performance, offering improved efficiency and reliability.Rugged industrial designThis rugged network switch features an IP30-rated metal housing and extended operating temperature range of -40°C to 75°C, which makes it ideal for a wide range of conditions. The sturdy metal enclosure offers durability, even in harsh industrial environments.Reliable connection for seamless network performanceWith support for 10/100/1000Mbps transfer speeds, this managed switch supports full/half-duplex auto-negotiation, jumbo frames, and auto MDI/MDIX operation. This lets you connect your network devices quickly and easily, with little to no configuration required.To help prevent any unnecessary downtime, the switch features redundant 12-58V DC terminal block power inputs, which ensures seamless operation in the event of power dips or failures.The IES81GPOEW is backed by a StarTech.com 2-year warranty and free lifetime technical support.The StarTech.com Advantage
Data transmission
Jumbo frames
9000
Jumbo frames support
Yes
Store-and-forward
Yes
Design
Certification
CE, FCC, RoHS
Housing material
Steel
International Protection (IP) code
IP30
LED indicators
Activity, Link, Power
Product colour
Black
Rack mounting
No
Wall mountable
Yes
Logistics data
Harmonized System (HS) code
85176990
Master (outer) case height
47.5 cm
Master (outer) case length
36.3 cm
Master (outer) case width
33.5 cm
Products per master (outer) case
10 pc(s)
Management features
Switch layer
L2
Switch type
Managed
Network
10G support
No
Auto MDI/MDI-X
Yes
Flow control support
Yes
Full duplex
Yes
Link aggregation
Yes
Networking standards
IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3z
Spanning tree protocol
Yes
Virtual LAN features
Tagged VLAN
Operational conditions
Operating relative humidity (H-H)
5 - 95 %
Operating temperature (T-T)
-40 - 75 °C
Storage temperature (T-T)
-40 - 90 °C
Other features
Terminal block port
Yes
Package dimensions
Depth (package,cm)
3 cm
Gross Weight (Package, kg)
0.93 kg
Height (package,cm)
9.2 cm
Width (package,cm)
17.3 cm
Packaging data
Quick start guide
Yes
Terminal block included
Yes
Performance
Buffer size
512 KB
Maximum data transfer rate
2000 Mbit/s
Mean time between failures (MTBF)
100000 Hour
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Power connector
DC-in jack
Power
Input current
1 A
Input voltage
12 - 48 V
Power plug type
Type M
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) power per port
30 Watt
Power over Ethernet plus (PoE+) ports quantity
4
Total Power over Ethernet (PoE) budget
120 Watt
Product dimensions
Net Weight (Product, kg)
0.65 kg
Product Depth
13.4 cm
Product Height
2.5 cm
Product Width
14.8 cm
Security
Access Control List (ACL)
Yes
Vendor information
Brand Name
StarTech.com
Warranty
1 Year(s)
