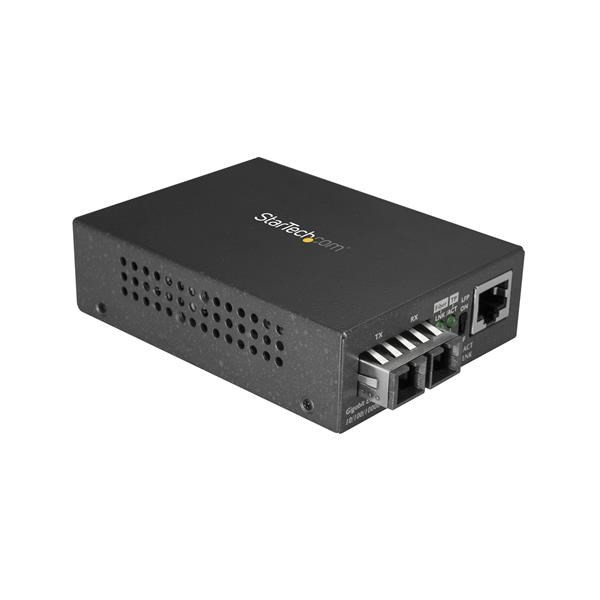

StarTech.com Multimode MM SC Fiber Media Converter for 10/100/1000 Network - 550 MCMGBSCMM055

AC adapter included : Yes


Auto MDI/MDI-X : Yes


Certification : CE, FCC, REACH


Compliance certificates : RoHS


Connectivity technology : Wired


Converter input interface : 100Base-TX, 1000Base-T


Converter output interface : 1000Base-SX


Depth : 70 mm


Duplex system : Full


EAN : 0065030878227


Ethernet interface type : Fast Ethernet, Gigabit Ethernet


Ethernet LAN (RJ-45) ports : 1


Ethernet LAN data rates : 10,100,1000 Mbit/s


External power adapter : Yes


Fiber mode structure : Multi-mode


Fiber optic connector : SC


Fiber ports quantity : 1


Flow control support : Yes


Harmonized System (HS) code : 85176990


Height : 26 mm


Housing material : Steel


Input current : 0.5 A


Input voltage : 100 - 240 V


Internal : No


Jumbo frames : 9000


Jumbo frames support : Yes


LED indicators : Activity, Link, Power


Manufacturer : StarTech


Manufacturer Part Code : MCMGBSCMM055


Master (outer) case height : 320 mm


Master (outer) case length : 375 mm


Master (outer) case width : 595 mm


Maximum data transfer rate : 1000 Mbit/s


Maximum transfer distance : 550 m


Mean time between failures (MTBF) : 50000 h


Model : 1


Networking standards : IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z


Operating relative humidity (H-H) : 5 - 90%


Operating temperature (T-T) : 0 - 50 °C


Output current : 2.6 A


Output voltage : 5 V


Package depth : 133 mm


Package height : 66 mm


Package weight : 564 g


Package width : 280 mm


Power consumption (typical) : 5 W


Power plug type : Type N


Product colour : Black


Product name : Multimode (MM) SC Fiber Media Converter for 10/100/1000 Network - 550m Range - Gigabit Ethernet - 850nm - Full Duplex


Products per master (outer) case : 20 pc(s)


Quick installation guide : Yes


Storage temperature (T-T) : -10 - 70 °C


Store-and-forward : Yes


Wavelength : 850 nm


Wavelength-division multiplexing (WDM) : No


Weight : 200 g


Width : 97 mm
