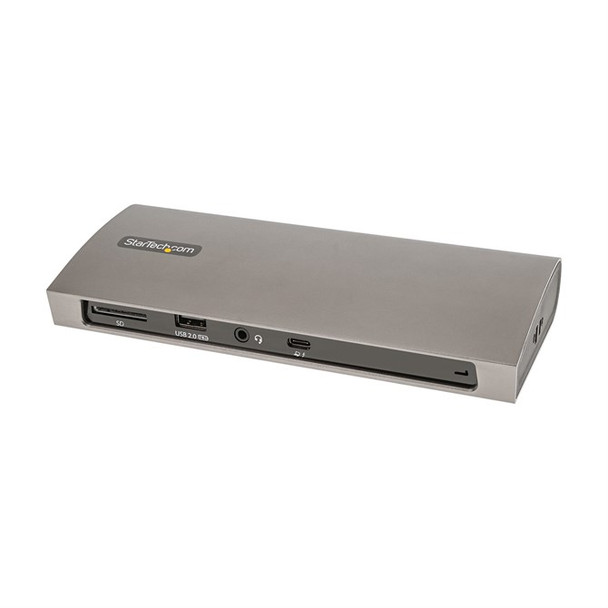

StarTech.com Thunderbolt 4 Dock 96W Power Delivery Single 8K/Dual Monitor 4K 60H TB4CDOCKUE

Dual DP 4K 60Hz | macOS & Windows- | 3x Thunderbolt- 4 | 3x USB-A 10Gbps | 1x USB-A 480Mbps BC 1.2 Fast Charge | 96W PD | 0.8 m Cable

This Thunderbolt 4 Certified docking station lets you use a single Thunderbolt 4, Thunderbolt 3 or USB4 port to add high-performance connectivity and charge your Thunderbolt 4 or USB4 Windows laptop, Thunderbolt 4 M1 Max/M1 Pro MacBook, or your Thunderbolt 3 M1 or Intel MacBook (macOS 11 Big Sur or higher).

For easy deployment the dock includes a 2.6 ft. (0.8 m) Thunderbolt 4 cable that connects to the front-facing host port, and features Kensington-style security slots.

High-Performance Port Connectivity

The docking station utilizes the high 40Gbps throughput available from your computer's Thunderbolt 4, Thunderbolt 3, or USB4 port to provide a wide range of port connectivity to suit a variety of applications, including daisy chaining up to five devices from the TB4/USB4 ports.

The dock features:
- 3x downstream Thunderbolt 4/USB4 ports to flexibility connect Thunderbolt 4, Thunderbolt 3, and USB peripheral devices and display(s), with the added benefit of 15W (3A) device charging per each port.

- 3x USB 3.2 Gen 2 (10Gbps) Type-A ports to connect USB peripheral devices.

- 1x USB 2.0 (480Mbps) Type-A port that supports BC 1.2 with 7.5W (1.5A) for charging tablets and smartphones, or connecting USB Human Interface Device(s) (HID), such as a USB transceiver, to minimize signal interference.

- 1x Gigabit Ethernet port with PXE boot and WoL to connect to a wired Local Area Network (LAN).

- 1x Secure Digital (SD) 4.0/UHS-II card reader to externally access SD, SDHC and SDXC memory cards.

- 1x 3.5mm 4-position TRRS Audio Jack to connect a 3.5mm headset.

High-Resolution Display Connectivity

Up to two monitors can be attached to any of the downstream Thunderbolt 4 ports using USB-C monitors, Thunderbolt monitors or USB-C DP Alt Mode to video adapters (video adapter required, each sold separately).

On Thunderbolt 4 Windows laptops the dock can support dual monitors with resolutions up to 4K 60Hz, or a single monitor with resolutions up to 8K 30Hz, 6K 60Hz, 5K 60Hz, 4K 60Hz.

On Thunderbolt 4 M1 Max and M1 Pro MacBooks the dock can support dual monitors with resolutions up to 4K 60Hz, or a single monitor with resolutions up to 6K 60Hz, 5K 60Hz, 4K 60Hz.

On M1 Thunderbolt 3 MacBooks the dock can support a single monitor with resolutions up to 6K 60Hz, 5K 60Hz, 4K 60Hz.

On Intel Thunderbolt 3 MacBooks the dock can support dual monitors with resolutions up to 4K 60Hz, or a single monitor with resolutions up to 6K 60Hz, 5K 60Hz, 4K 60Hz.

On USB4 Windows laptops the dock can support a single monitor with resolutions up to 8K 30Hz, 6K 60Hz, 5K 60Hz, 4K 60Hz.

96W USB Power Delivery Certified

The Thunderbolt 4 docking station includes a 135W power adapter and supports 96W USB power delivery. This enables the dock to charge your MacBooks and Thunderbolt 4 and USB4 Windows laptops. Plus, the added power provides downstream TB4/USB4 ports with 15W (3A) for device charging, and enables one of the USB-A ports to support BC 1.2, for charging tablets and smartphones.

Thunderbolt Certified

To ensure compatibility with your Thunderbolt 4 computers and Thunderbolt 4/3 peripheral devices. This certification provides assurance the dock will be fully compatible with Intel Evo/Tiger Lake (11th gen & up) Thunderbolt 4 laptops including: Dell Precision 5560/5760, XPS 13 9310, HP EliteBook 850 G8, ProBook 450 G8, and Lenovo X1 Carbon 9th Gen. The dock is also compatible with M1 & Intel Thunderbolt 3 MacBooks (11.0 & up).

Enhance Productivity and Device Management with the StarTech Connectivity Tools Application

Developed to improve performance and security, StarTech Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
-

Advanced Windows Layout Utility : To setup and save custom windows layouts.

-

Mac Address Pass-Through Utility : To improve network security.

-

USB Event Monitoring Utility : To track and log connected USB devices

-

Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech Connectivity Tools application, please visit: StarTech /Connectivity-Tools

TB4CDOCK is backed by a 3-year StarTech warranty, and free lifetime multilingual, North American based technical support.

Note:
- The docking station is compatible with Thunderbolt 4/USB4 Windows laptops, Thunderbolt 4 M1 Max/M1 Pro MacBooks, and Thunderbolt 3 M1/Intel MacBooks (macOS 11 Big Sur or higher).
- USB4 Windows laptops may support dual-displays over Thunderbolt if supported by the USB4 Windows Laptop.

The StarTech Advantage

Specs




Ports & interfaces


Connectivity technology

The technology that enables connectivity of the device, e.g. wired or wireless.

Wired


Host interface

Interface that enables a host controller to communicate with a driver.

Thunderbolt 4


USB 2.0 ports quantity

Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.

1


USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

3


USB Power Delivery (USB PD)




USB Power Delivery up to

96 W


Thunderbolt 4 ports quantity

3


Combo headphone/mic port




Headphone outputs

Number of sockets /ports where headphones are connected.

1


DC-in jack

The socket/plug where the DC electricity supply connects to the device.




Network


Ethernet LAN

An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.




Ethernet LAN (RJ-45) ports

Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1


Ethernet LAN data rates

The different speed levels of the Ethernet LAN connection.
, 100, 1000 Mbit/s


Wake-on-LAN ready




Auto MDI/MDI-X

A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.




Full duplex

A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.




Performance


Card reader integrated

A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.




Compatible memory cards

Types of memory cards which can be used with this product.

MMC, MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC


HD type

Type of supported High Definition (e.g. Full HD, 4K Ultra HD).

8K Ultra HD


Number of displays supported

The number of displays that can be used with this product.

2


Maximum refresh rate

60 Hz


Cable lock slot

Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.




Cable lock slot type

Kensington


Product colour

The colour e.g. red, blue, green, black, white.

Black, Grey


LED indicators




Housing material

What the casing of the product is made of.

Aluminium, Plastic


Power


Compatible power plug types

EU



Software


Windows operating systems supported

Windows vesions wich can be used with the device.

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64


Mac operating systems supported

Mac operating systems e.g. OS X can be used with the device.

Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 50 -C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-20 - 70 -C


Operating relative humidity (H-H)

0 - 95%


Weight & dimensions


Width

The measurement or extent of something from side to side.
4 mm


Depth

The distance from the front to the back of something.

84 mm


Height

The measurement of the product from head to foot or from base to top.

29 mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

1 kg


Packaging data


Package width

The distance from one side of the packaging to the other.

230 mm


Package depth

The distance from the front to the back of the packaging.
5 mm


Package height

The distance from the top to the bottom of the packaging.

90 mm


Package weight

Weight of the packaged product.

1.1 kg


Packaging content


Cables included

Thunderbolt


AC adapter included




Quick start guide

Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.




Technical details


Compliance certificates

CE, RoHS


Logistics data


Products per master (outer) case

8 pc(s)


Master (outer) case width

380 mm


Master (outer) case length

305 mm


Master (outer) case height

265 mm


Harmonized System (HS) code

84733020


Other features


Cable length

How long the cable is.

0.8 m


Chipset

Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.

Intel - JHL8440, Cypress - CYUSB4357, Parade - FL5801, Parade - FL5801, Cypress - CYPD5235, Realtek - RTL8153B, Realtek - ALC4042, Genesys Logic - GL3226
