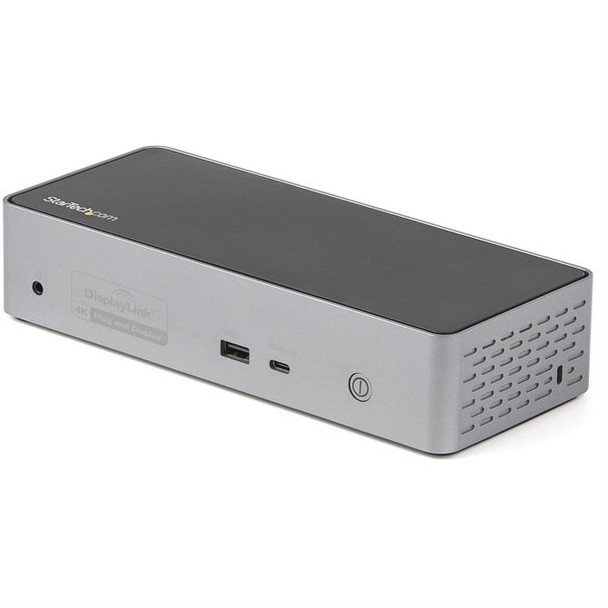

StarTech.com USB C Dock - 4K 60Hz Quad Monitor DisplayPort & HDMI - Universal US DK31C4DPPDUE

USB-C & USB-A Dock | USB 3.2 Gen 2 10Gbps | 4K 60HZ HDMI | 4K 60Hz DisplayPort | 100W Power Delivery

This USB-C Gen 2 10Gbps docking station turns your USB-C - or Thunderbolt- 3 MacBook Pro, Windows laptop, and Chromebook into a powerful workstation. A USB 3.2 Gen 2 Type-C dock features everything you need, from quad HDMI or DisplayPort video outputs up to 4K 60 Hz to 10Gbps USB-C & USB-A downstream peripheral ports to 100W Power Delivery.

HDMI & DisplayPort for Four Monitor Outputs

This USB-C Gen 2 docking station with DP 1.2 and HDMI 2.0 HDR support, is a perfect choice for dual, triple, or quad monitor setup, supporting up to quad 4K 60Hz display output, with any combination of four DisplayPort or HDMI video interfaces, on USB-C Gen 2 laptops, MacBooks (including M1 based systems) and Windows-based Thunderbolt 3 laptops.

Display & Resolution Specs:
Quad 4K DisplayPort | Up to 3840 x 2160p @ 60Hz

Quad 4K HDMI | Up to 3840 x 2160p @ 60Hz

Quad 4K (Mix of DP & HDMI) | Up to 3840 x 2160p @ 60Hz

Dual 5K DisplayPort* | Up to 5120 - 2880

Single 5K DisplayPort* | Up to 5120 - 2880 + Dual 4K HDMI/DisplayPort | Up to 3840 x 2160p @ 60Hz

*Requires monitor support for 5K and uses two DP ports for one 5K display connection

Power & Charge with 100W Power Delivery

Power and charge USB-C/Thunderbolt 3 workstation laptops & ultrabooks with 100 watt PD. Higher power delivery, more than other USB-C 10Gbps quad monitor docks.

Charge smartphones and other high powered devices with two downstream front-facing charging ports with BC 1.2 for USB-A and USB-C devices. Fast-charge ports support always-on charging so devices will charge whether or not a host laptop is connected.

Plenty of Downstream USB Ports

This USB-C Gen 2 docking station features 4 downstream USB ports in total to connect USB peripherals.

- 1x USB-C 3.2 Gen 2 (10 Gbps | 15W/3A)
- 1x USB-A 3.2 Gen 1 (5 Gbps | 7.5W/1.5A)
- 2x USB-A 3.2 Gen 1 (5 Gbps | 4.5W/0.9A)

Also included, is a gigabit Ethernet port with PXE Boot and WoL support, as well as 4-position TRRS stereo audio headset/mic port.

Additional Security Features

This USB-C docking station comes with plenty of security features a K-slot for a Kensington style laptop lock and holes to mount the dock on the desk or wall and includes a USB-IF Certified 1m USB-C cable.

Extra Ventilation

USB-C dock features optimized ventilation on both ends and bottom side of dock to provide cooling support to higher temperature thermals that can be generated by high performance video/graphics applications and multiple 4K 60Hz video outputs.

Enhance Productivity and Device Management with the StarTech Connectivity Tools Application

Developed to improve performance and security, StarTech Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
-

Advanced Windows Layout Utility : To setup and save custom windows layouts.

-

Mac Address Pass-Through Utility : To improve network security.

-

USB Event Monitoring Utility : To track and log connected USB devices

-

Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech Connectivity Tools application, please visit: StarTech /Connectivity-Tools

The StarTech Advantage

Specs




Ports & interfaces


Connectivity technology

The technology that enables connectivity of the device, e.g. wired or wireless.

Wired


Host interface

Interface that enables a host controller to communicate with a driver.

USB 3.2 Gen 2 (3.1 Gen 2) Type-C


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3


USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.

1


USB Power Delivery (USB PD)




USB Power Delivery up to
0 W


HDMI ports quantity

The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.

4


HDMI version

2.0


DisplayPorts quantity

Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.

4


DisplayPort version

1.2


Combo headphone/mic port




Headphone connectivity

How headphones connect to a device e.g. wirelessly or via a cable and connector.

3.5 mm


DC-in jack

The socket/plug where the DC electricity supply connects to the device.




Network


Ethernet LAN

An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.




Ethernet LAN (RJ-45) ports

Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1


Wake-on-LAN ready




Performance


Card reader integrated

A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.




Data transfer rate

Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations.
Gbit/s


Maximum digital resolution

5120 x 2880 pixels


Maximum refresh rate

60 Hz


Cable lock slot

Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.




Cable lock slot type

Kensington


Product colour

The colour e.g. red, blue, green, black, white.

Black, Grey


LED indicators




Power


AC input voltage

The voltage of the AC electricity that is inputted into the product.
0 - 240 V


Output voltage
V


Output current

8.5 A



Power


Compatible power plug types

EU, UK


Software


Windows operating systems supported

Windows vesions wich can be used with the device.

Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64, Windows 11 x64


Mac operating systems supported

Mac operating systems e.g. OS X can be used with the device.

Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura


Other operating systems supported

ChromeOS


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 50 -C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-20 - 70 -C


Operating relative humidity (H-H)

0 - 95%


Weight & dimensions


Width

The measurement or extent of something from side to side.

90 mm


Depth

The distance from the front to the back of something.

215 mm


Height

The measurement of the product from head to foot or from base to top.

46 mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

330 g


Packaging data


Package width

The distance from one side of the packaging to the other.
5 mm


Package depth

The distance from the front to the back of the packaging.

233 mm


Package height

The distance from the top to the bottom of the packaging.
0 mm


Package weight

Weight of the packaged product.

360 g


Packaging content


Cables included

USB


AC adapter included




Manual




Technical details


Compliance certificates

CE


Logistics data


Products per master (outer) case

4 pc(s)


Master (outer) case width

240 mm


Master (outer) case length

410 mm


Master (outer) case height
0 mm


Harmonized System (HS) code

84733020


Other features


Chipset

Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.

DisplayLink - DL6910, Realtek - RTS5423, Realtek - RTS5411/RTS5411E, Realtek - RTL8153
