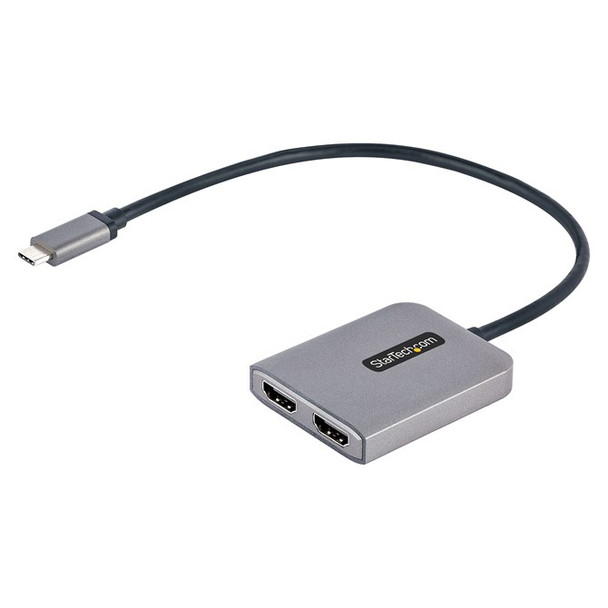

StarTech.com USB-C to Dual HDMI MST HUB - Dual HDMI 4K 60Hz - USB Type C Multi M MST14CD122HD

Create a high-performance dual-display workstation by connecting a USB Type-C- device to two independent HDMI- monitors

This USB-C to HDMI MST Hub allows you to connect two HDMI monitors, using a USB-C enabled host device.

Multi-tasking Made Easy

This USB-C to HDMI video splitter connects up to two additional displays in extended or mirror mode. Connecting two independent 4K 60Hz displays creates high-performance workstations, for users in your organization enabling easier multi-tasking resulting in increased productivity.

Host Connection

Output 1 Resolution

Output 2 Resolution

DisplayPort 1.4 with DSC

4K 60Hz

4K 60Hz

DisplayPort 1.4

4K 60Hz

4K 30Hz

DisplayPort 1.2

4K 30Hz

4K 30Hz

4K at 60Hz and HDR

Multi-Stream Transport (MST) technology combines multiple video signals into a single signal/stream. This MST Hub separates the single stream into two independent signals, one for each HDMI enabled display. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and greater luminosity.

Hassle-Free Setup

Windows devices that support DP Alt Mode over USB-C feature native support for MST. This USB-C to HDMI hub is compatible with Thunderbolt 4, Thunderbolt 3, and USB4 enabled Windows devices. Plug-and-play installation with no drivers or software required. The 12in (30cm) attached cable provides options for flexible installation configurations, reducing the amount of strain on ports and connectors. Additionally, this dual-monitor splitter is bus-powered, meaning no external power is required.

MST14CD122HD is backed by a StarTech 3-year warranty, and free lifetime multilingual, North American based technical support.

The StarTech Advantage

Specs




Performance


USB connector type

The type of USB connector/port that this product has.

USB Type-C


USB connector gender

Male


USB connector form factor

Straight


DVI output




High Dynamic Range (HDR) supported




HDMI output

The device features an HDMI output.




DisplayPort output

The device features a DisplayPort (DP) output to accomodate a standardized digital display interface used to connect a video source to a display device such as a computer monitor, and it can also carry audio, USB, and other forms of data.




Number of displays supported

The number of displays that can be used with this product.

2


HDMI ports quantity

The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.

2


Maximum resolution

The maximum number of pixels that can be displayed in the image. It is usually quoted as width - height,: for example, "1024 - 768" means the width is 1024 pixels and the height is 768 pixels.

3840 x 2160 pixels


Refresh rate at maximum resolution

60 Hz


Audio output channels

An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.

7.1 channels


Chipset

Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.

Synaptics VMM5200


Data transfer rate (max)

32.4 Gbit/s


Design


Product colour

The colour e.g. red, blue, green, black, white.

Black, Grey


Housing material

What the casing of the product is made of.

Plastic


Integrated USB cable




System requirements


Windows operating systems supported

Windows vesions wich can be used with the device.

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 x64, Windows 11, Windows 11 x64


Weight & dimensions


Width

The measurement or extent of something from side to side.
5 mm



Weight & dimensions


Depth

The distance from the front to the back of something.

43 mm


Height

The measurement of the product from head to foot or from base to top.
mm


Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

55 g


USB cable length

0.3 m


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 70 -C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-10 - 55 -C


Operating relative humidity (H-H)

5 - 90%


Packaging data


Package width

The distance from one side of the packaging to the other.
2 mm


Package depth

The distance from the front to the back of the packaging.
0 mm


Package height

The distance from the top to the bottom of the packaging.

30 mm


Package weight

Weight of the packaged product.
8.8 g


Technical details


Compliance certificates

CE, RoHS


Logistics data


Products per master (outer) case

70 pc(s)


Master (outer) case width

473 mm


Master (outer) case length

331 mm


Master (outer) case height

440 mm


Harmonized System (HS) code

84733020
