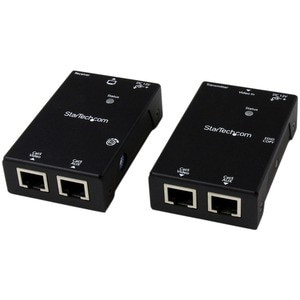

Startech Hdmi Over Cat5/Cat6 Extender With Power Over Cable 165 Ft 50M 1 Input D ST121SHD50

StarTech HDMI Over CAT5/CAT6 Extender with Power Over Cable - 165 ft (50m) - 1 Input Device - 1 Output Device - 50 m Range - 4 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 1920 x 1080 Video Resolution - Full HD - Twisted Pair - Rack-mountable The ST121SHD50 HDMI?- over Cat5e/Cat6 Video Extender kit lets you extend HDMI video and audio by up to 165 feet (50 Meters) over dual Cat5e cables or dual Cat6 cables.For added versatility the kit features Power Over Cable andonly requires asingle power adapter that can be connected to either the Transmitter or Receiver. With support for High-Definition resolutions of up to 1920x1080 / 1080p and the accompanying digital audio, this cost-effective HD extender can easily be installed using new or existing Ethernet infrastructure wiring. For a convenient plug-and-play installation, the HDMI extender features built-in EDID monitor emulation, which ensures native resolution and maximum compatibility with your display or projector. For added flexibility and convenience, HDMI cables up to 32ft (10m) can be connected to both the local and remote units, which lets you extend your HDMI signal to even further distances. The HDMI extender kit offers a point-to-point digital signage solution right out of the box, including both local transmitter and remote receiver units, along with optional hardware that lets you mount the units as needed.Plus, withPowerOverCable, you can easily extend anHDMI signal inareas where access to power outlets is limited. This product is TAA compliant and backed by a Startech 2-year warranty with free lifetime technical support. More from the Manufacturer More from the Manufacturer
Miscellaneous

TAA CompliantYes

Media & Performance

Twisted Pair Cable StandardCategory 6
Media Type SupportedTwisted Pair

Video

Graphics ModesFull HD
Maximum Video Resolution1920 x 1080

Physical Characteristics

Form FactorRack-mountable
Length78.7 mm
Transmitter Height20.32 mm
Transmitter Width50.80 mm
Transmitter Depth78.74 mm
Receiver Height20.32 mm
Receiver Width50.80 mm
Receiver Depth78.74 mm
Transmitter Weight (Approximate)314 g
Receiver Weight (Approximate)314 g
Product ColorBlack
Color FamilyBlack
Product MaterialAluminium


Technical Information

Connectivity TechnologyWired
Daisy ChainNo
Maximum Operating Distance50 m
Number of Output Devices Supported1
Number of Input Devices Supported1

Interfaces/Ports

Number of Network (RJ-45) Ports4
Network (RJ-45)Yes
Number of HDMI Inputs1
Number of HDMI Outputs1
HDMI InYes
HDMI OutYes

General Information

Product TypeVideo Extender Transmitter/Receiver
Manufacturer Part NumberST121SHD50
startech/uk
Packaged Quantity1 Kit
ManufacturerStarTech
Product NameHDMI Over CAT5/CAT6 Extender with Power Over Cable - 165 ft (50m)
Brand NameStarTech
