Startech Replacement 50Mm Ball Bearing Cpu Case Fan Lp4 Tx3 Connector System Fan FAN5X1TX3

StarTech Replacement 50mm Ball Bearing CPU Case Fan - LP4 - TX3 Connector - System fan kit - 60 mm - 50 mm - 4500 rpm Ball Bearing This versatile 5cm x 1cm fan is an ideal replacement fan for keeping your computer running cool. The fan can be powered through a TX3 connection, and features a dual ball bearing design that ensures reliable cooling and longer fan lifespan. More from the Manufacturer More from the Manufacturer
Power Description

Input Voltage12 V DC

Interfaces/Ports

Connectors4-pin LP4 Male
3-pin TX3 Female
4-pin LP4 Female

Fan Information

Fan Life5.7 Year
Fan Bearing TypeBall Bearing
Maximum Airflow14.66m??/h
Fan Speed (Max)4500 rpm
Airflow Details
1 x 8.63CFM


Miscellaneous

Additional InformationColor: Black
Connector: 3-Lead TX3 Motherboard
Extended Description: 5x1 cm TX3 Replacement Ball Bearing Fan

Applications/Solutions:Install in your workstation to keep your hardware cool
Replaces a non-functional or a noisy fan in a PC

Features:Dual Ball Bearings in the cooling fan provides increased airflow, reliability and longer life
Tachometer pin on the TX3 motherboard connector provides system with fan operating status

Application/UsageProcessor

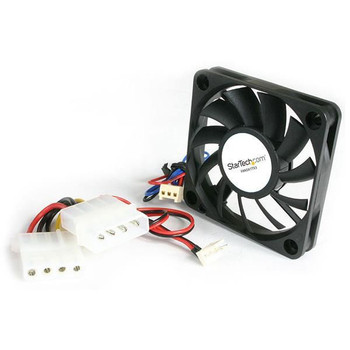

Package ContentsReplacement 50x10mm TX3 CPU Cooler Fan
1 x 3-pin to LP4 Molex Adapter Cable

Environmentally FriendlyYes
For Country/RegionGermany
REACH Declaration URL media.startech/cms/pdfs/fan5x1tx3_rohs.pdf
EU RoHS Declaration URL media.startech/cms/pdfs/fan5x1tx3_rohs.pdf
End of Life Manual AvailabilityYes
REACH free of SVHCYes
WEEE Statement media.startech/cms/pdfs/fan5x1tx3_weee.pdf
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)


General Information

Product TypeCooling Fan
Manufacturer Part NumberFAN5X1TX3
startech/uk
Packaged Quantity1 Each
ManufacturerStarTech
Product NameReplacement 50x10mm TX3 CPU Cooler Fan
Brand NameStarTech

Physical Characteristics

Weight (Approximate)19 g
Fan Height50.80 mm
Fan Width10.16 mm
Fan Depth50.80 mm
Product ColorBlack
Color FamilyBlack
Maximum Fan Diameter50 mm
Fan Diameter Details
1 x 50mm

Product MaterialPlastic
