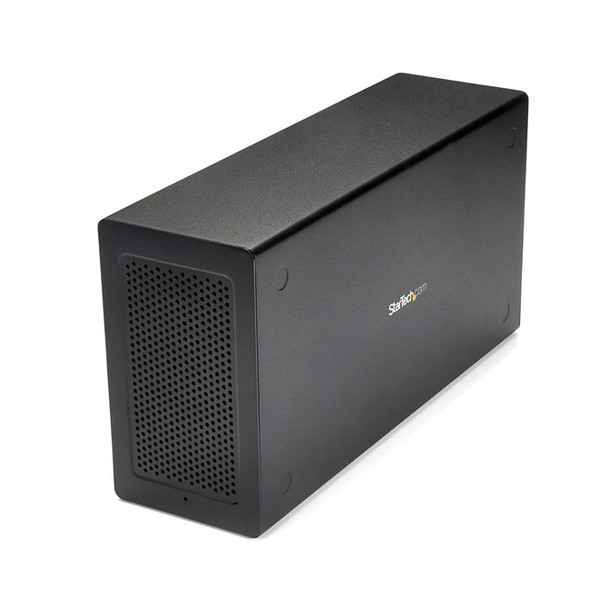

StarTech Thunderbolt 3 PCIe Expansion Chassis External Enclosure with One PCI E TB31PCIEX16

AC adapter included : Yes


AC input voltage : 100 - 240 V


Bearing type : Sleeve bearing


Built-in fan : Yes


Cable length : 0.5 m


Cables included : Thunderbolt


Card reader integrated : No


Chipset : Intel - Alpine Ridge DSL6540


Compatible power plug types : AU, EU, JP, UK, US


Compliance certificates : CE, RoHS


Connectivity technology : Wired


Data transfer rate : 40 Gbit/s


Depth : 280 mm


DisplayPorts quantity : 1


EAN : 0065030868440


Ethernet LAN : No


Fan diameter : 6 cm


Harmonized System (HS) code : 84733020


Height : 82 mm


Host interface : Thunderbolt 3


Housing material : Aluminium, Steel


Input current : 2 A


LED indicators : Power


Mac compatibility : Yes


Mac operating systems supported : Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura


Manufacturer : StarTech


Manufacturer Part Code : TB31PCIEX16


Master (outer) case height : 325 mm


Master (outer) case length : 455 mm


Master (outer) case width : 375 mm


Maximum airflow : 14.06 cfm


Maximum port bandwidth : 3.94 GB/s


Model : 1


Noise level : 24.55 dB


Number of fans : 1 fan(s)


Operating relative humidity (H-H) : 20 - 80%


Operating temperature (T-T) : 5 - 35 -C


Output current : 5.417 A


Output voltage : 12 V


Package depth : 360 mm


Package height : 145 mm


Package weight : 3.1 kg


Package width : 290 mm


Power consumption (typical) : 65 W


Power plug type : Type N


Power source type : DC


Product colour : Black


Product name : Thunderbolt 3 PCIe Expansion Chassis, External Enclosure with One PCI Express Slot, PCIe Box for Laptops/Desktops/All-In-Ones, 5K/4K Output Via TB3/DP Ports, TAA Compliant


Products per master (outer) case : 3 pc(s)


Quick start guide : Yes


Rubber feet : Yes


Storage temperature (T-T) : -20 - 50 -C


Sustainability compliance : Yes


Thunderbolt 3 ports quantity : 2


Weight : 1.6 kg


Width : 142 mm


Windows operating systems supported : Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
