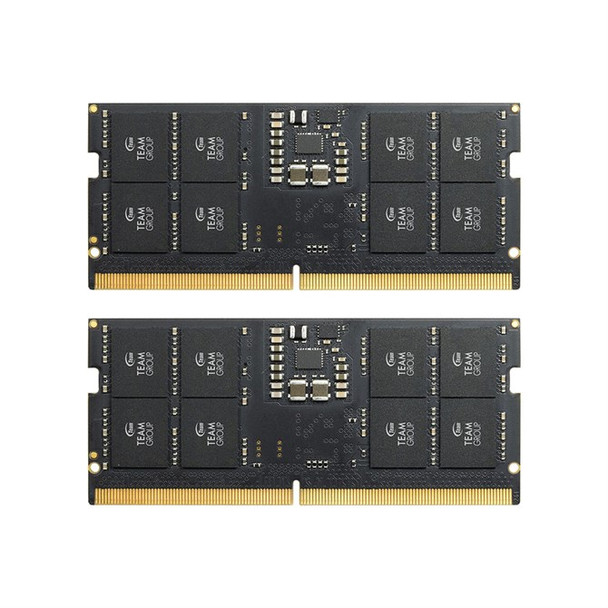

Team Group ELITE Memory Module 16 GB 1 X 16 GB DDR5 ECC TED516G4800C40D-S01

Faster than ever with 4800MHz frequency
The TEAMGROUP ELITE SO-DIMM DDR5 is equipped with an ultra-high frequency of 4800MHz, a standard for DDR5s and 50% more from the 3200MHz standard frequency maximum of DDR4 modules.

Conserve energy with energy-efficient 1.1V working voltage
Standard working voltage has been reduced from the 1.2V in DDR4 modules to 1.1V for better battery life on laptops. The PMIC has also been transferred from the motherboard to the RAM for effective load management and minimal noise interference.

Supports on-die ECC for more stable systems
The TEAMGROUP ELITE SO-DIMM DDR5 supports on-die ECCs, a feature that self-corrects DRAM cells, to deliver stability to DRAM systems using DDR5.

New structural composition for better performance
DDR5 allows up to 32 banks (storage units that can be enabled/disabled separately) comprised from 8 bank groups, doubling the access availability from the 16 banks available in DDR4 standards; the DDR5 burst length (amount of data that can be accessed from a single DRAM read/write command) is also twice as much as DDR4 burst lengths. We believe the strengthened DDR5 performance can ensure that our users enjoy a brand new experience.

Upgraded capacity for powerful multitasking
The TEAMGROUP ELITE SO-DIMM DDR5 is available with 8GB, 16GB, and 32GB capacities to satisfy the multitasking needs of businessmen, ensuring that users can work on documents and watch videos at the same time for the ultimate smooth multitasking experience.

Lifetime warranty for maximum protection
TEAMGROUP offers lifetime warranties and will replace products for free. The warranty does not apply to damages resulting from misuse, mishandling, or other forms of human factors.

Specs




Features


Buffered memory type

Unregistered (unbuffered)


On-Die ECC




CAS latency

Column Address Strobe (CAS) latency, or CL, is the delay time between the moment a memory controller tells the memory module to access a particular memory column on a RAM module, and the moment the data from the given array location is available on the module's output pins. In general, the lower the CAS latency, the better.

40


Internal memory

A computer's memory which is directly accessible to the CPU.
GB


Memory layout (modules x size)

How the overall memory of the product is put together, defined by the number of modules and the size.

1 x 16 GB


Internal memory type

The type of internal memory such as RAM, GDDR5.

DDR5


Memory clock speed

The frequency at which the memory (e.g. RAM) runs.

4800 MHz


Component for

What this product is used as a part of (component for).

Laptop



Features


Memory form factor

Design of the memory e.g. 240-pin DIMM, SO-DIMM.

262-pin SO-DIMM


ECC

ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention.




Memory voltage

The voltage (V) of the memory in the device.

1.1 V


Weight & dimensions


Depth

The distance from the front to the back of something.

70 mm


Height

The measurement of the product from head to foot or from base to top.

30 mm
