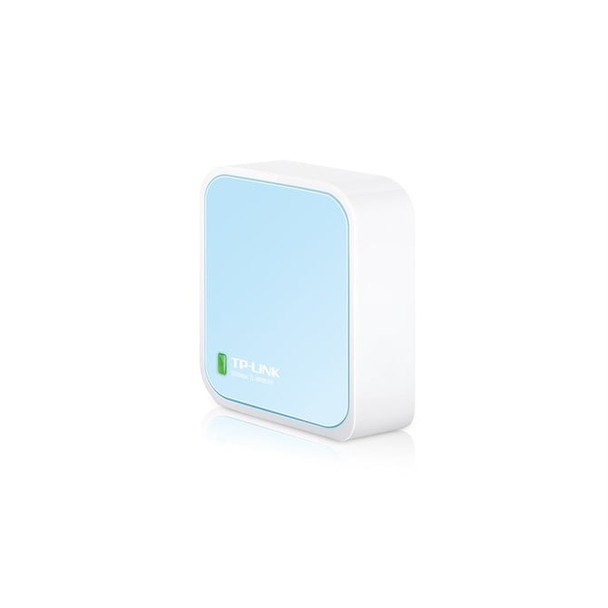

TP-Link 300Mbps Wireless N Travel WiFi Router TL-WR802N

- 300Mbps wireless data rates is ideal for video streaming, online gaming and Internet calling
- Pocket-size – Ideal for home and travel use
- Supports Router, Repeater, Client, AP and WISP operation modes
- Powered through a micro USB port by an external power adapter or USB connection to a computer provides flexibility for any situation
- Easy installation in minutes

What is the TL-WR802N?
The TL-WR802N is designed for use with tablets, smart phones, handheld game consoles and other portable electronic wireless devices. The devices, which can be powered by an external power adapter or USB connection to a computer, can conveniently connect to the Internet and share the connection around an average sized room at 300Mbps. The device’s tiny size makes it ideal for use on the road and is powerful enough to satisfy almost any basic wireless application requirement.

?Portable and Compact – Ideal for Home and Travel Use
?The TL-WR802N is the perfect travel companion for anyone who needs fast, easy Internet access on the go. Portable and compact design easily fits into a pocket or the palm of your hand. Simply plug a hotel room’s ethernet cable into the port provided and enter a default password to instantly create a wireless hotspot in the room.

Flexible Power Supply – Easy to Take on the Road
TL-WR802N can be powered by an external power adapter or via a USB connection to a computer. When traveling, users can plug the TL-WR802N into computer’s USB port and share Wi-Fi connection with family and friends.

?Multiple Operation Modes
?TL-WR802N supports Router (default), Repeater, Client, AP and WISP modes to enable various wireless applications to give users a more dynamic and comprehensive wireless networking experience.

WPA / WPA2 Encryptions
WPA/WPA2 encryption standards ensure your wireless connection is safe from intruders.

Specs




WAN connection


Ethernet WAN




DSL WAN

Whether or not the product features a DSL WAN (Wide Area Network) connection option.




SIM card slot

Whether the device features a SIM card slot.




3G/4G USB modem compatibility




WAN connection type

RJ-45


Wireless LAN features


Wi-Fi band

The frequency bands the product features.

Single-band (2.4 GHz)


Top Wi-Fi standard

Connection of this device is done via Wi-Fi in a high standard.

Wi-Fi 4 (802.11n)


WLAN data transfer rate (max)

300 Mbit/s


Wi-Fi standards

The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.

802.11b, 802.11g, Wi-Fi 4 (802.11n)


Network


Ethernet LAN

An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.




Ethernet LAN interface type

The characteristics of the Ethernet LAN interface.

Fast Ethernet


Ethernet LAN data rates

The different speed levels of the Ethernet LAN connection.
, 100 Mbit/s


Cabling technology

Type of cable technology performance.
/100Base-T(X)


Networking standards

The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.11b, IEEE 802.11g, IEEE 802.11n


Port triggering




Dynamic DNS (DDNS)




VPN Passthrough




VPN support

PPTP, L2TP, IPSec


Mobile network


3G

Third generation of mobile telecommunications technology, 3G finds application in wireless voice telephony, mobile Internet access, fixed wireless Internet access, video calls and mobile TV.




4G

Fourth generation of mobile phone mobile communication technology standards. A 4G system provides mobile ultra-broadband Internet access, for example to laptops with USB wireless modems, to smartphones, and to other mobile devices. Conceivable applications include amended mobile web access, IP telephony, gaming services, high-definition mobile TV, video conferencing, 3D television, and cloud computing.




Ports & interfaces


Ethernet LAN (RJ-45) ports

Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1


USB port

The device features a socket into which a USB cable can be plugged.




Memory card slot(s)

Places where memory cards are placed inside and connected to the computer motherboard.




DC-in jack

The socket/plug where the DC electricity supply connects to the device.




Management features


Web-based management

Using a website/web application to manage something.




Reset button




Security


Security algorithms

Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.
8-bit WEP, 152-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK


Firewall




Stateful Packet Inspection (SPI)




DoS attack prevention




Filtering




MAC address filtering

Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists.




IP address filtering




DMZ support




Protocols


DHCP client

Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network.




DHCP server

A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one.




Universal Plug and Play (UPnP)





Design


Product colour

The colour e.g. red, blue, green, black, white.

Blue, White


LED indicators




On/off switch

The button which is pressed to switch the device on or off.




Product type

The sub-category of the product.

Tabletop router


Certificates


Certification

CE, FCC, RoHS


Packaging content


Manual




Quick installation guide




Antenna


Antenna design

Internal


Receive power

270M: -65dBm@10% PER , 130M: -70dBm@10% PER , 108M: -82dBm@10% PER , 54M: -73dBm@10% PER , 11M: -82dBm@8% PER , 6M: -86dBm@10% PER , 1M: -90dBm@8% PER


Transmit power

CE: , <20dBm(2.4GHz) , FCC: , <30dBm


Power


Power source type

What the power source is.

DC


Output voltage

5 V


Output current

1 A


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 40 °C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-40 - 70 °C


Operating relative humidity (H-H)
- 90%


Storage relative humidity (H-H)

5 - 90%


System requirements


Windows operating systems supported

Windows vesions wich can be used with the device.

Windows 2000, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows NT, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64


Linux operating systems supported

8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)




Mac operating systems supported

Mac operating systems e.g. OS X can be used with the device.

macOS


Weight & dimensions


Width

The measurement or extent of something from side to side.

57 mm


Depth

The distance from the front to the back of something.

57 mm


Height

The measurement of the product from head to foot or from base to top.
mm


Packaging data


Package width

The distance from one side of the packaging to the other.
0 mm


Package depth

The distance from the front to the back of the packaging.
9 mm


Package height

The distance from the top to the bottom of the packaging.

73.5 mm


Package weight

Weight of the packaged product.

240 g


Other features


Mobile network connection




WLAN data transfer rates supported
, 54, 300 Mbit/s


Frequency range

2.4 - 2.4835 GHz


USB ports quantity

1


Supported WAN type

IP, Static IP, PPPoE, PPTP, L2TP


Frequency band

A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones.

2.4 GHz


Rack mounting

The type of mounting that can position devices in a shelving system (rack).




xDSL connection
