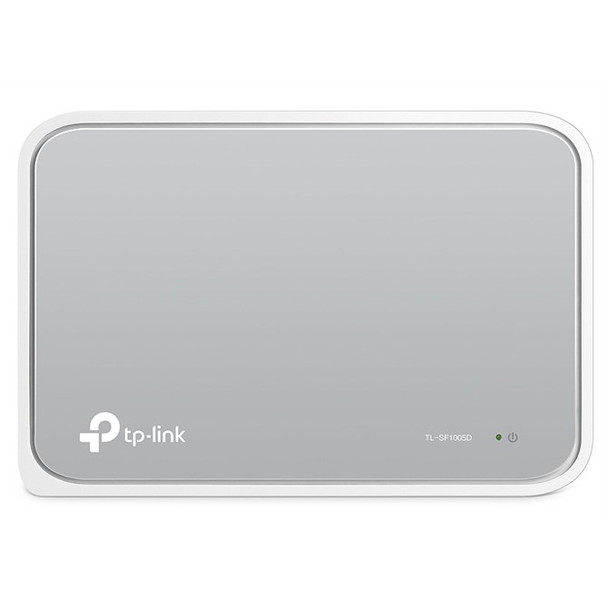

TP-Link 5-Port 10/100Mbps Desktop Network Switch TL-SF1005D

What This Product Does
The TL-SF1005D 5-Port 10/100Mbps desktop switch provides an easy way to expand your wired network. All 5 ports support auto-MDI/MDIX, eliminating the need to worry about the type of cable to use. Featuring full duplex mode, the TL-SF1005D can process data at a rate of up to 200Mbps making it an ideal choice for expanding your high performance wired network. Moreover, with innovative energy-efficient technology, the TL-SF1005D can save up to 68% of power consumption, making it an eco-friendly solution for your home or office network.

High Performance
TL-SF1005D Fast Ethernet Switch provides 5 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports..Featuring non-blocking switching architecture,TL-SF1005D forwards and filters packets at full wire-speed for maximum throughput. With 10K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1005D work reliably.

Easy to Use
The auto features of this ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.

Specs




Management features


Switch type

What switch device has, managed or unmanaged.

Unmanaged


Ports & interfaces


Basic switching RJ-45 Ethernet ports quantity

The number of basic switching RJ-45 Ethernet ports (sockets).

5


Basic switching RJ-45 Ethernet ports type

The type/category of basic switching RJ-45 Ethernet ports (sockets).

Fast Ethernet (10/100)


Power connector

DC-in jack


Network


Networking standards

The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.3u, IEEE 802.3x

G support

The product can use Oracle 10G, which is a database management system introduced in 2003.




Copper ethernet cabling technology
0BASE-TX, 10BASE-T


Full duplex

A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.




Auto MDI/MDI-X

A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.




Data transmission


Supported data transfer rates

Rates at which data can be transferred. May vary according to network configurations.
/100 Mbps


Switching capacity

The data transfer capacity of the switch per second.

1 Gbit/s


MAC address table

The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.
00 entries


Store-and-forward




Maximum data transfer rate

0.1 Gbit/s


Protocols


Supported network protocols

Network protocols tested as compatible with this product e.g. FTP,HTML, POP.

CSMA/CD, TCP/IP


Design


Rack mounting

The type of mounting that can position devices in a shelving system (rack).




Stackable

Devices can be placed on top of each other.




Product colour

The colour e.g. red, blue, green, black, white.

White


Power


Power source

What is providing power for the product e.g. mains electricity.

DC


Power supply included

There is a power supply with this product.





Power


Input current

0.6 A


Input voltage

The voltage (V) which is required to power the product.

5 V


Power consumption (max)

The maximum amount of power used by the device.

1.48 W


Power over Ethernet (PoE)


Power over Ethernet (PoE)

The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.




Other features


Connectivity LEDs




Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 40 °C


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-40 - 70 °C


Operating relative humidity (H-H)
- 90%


Storage relative humidity (H-H)

5 - 95%


Heat dissipation

The heat generated by the power supply.

6.38 BTU/h


Weight & dimensions


Width

The measurement or extent of something from side to side.
3.5 mm


Depth

The distance from the front to the back of something.

69.5 mm


Height

The measurement of the product from head to foot or from base to top.

22 mm


Packaging data


Package width

The distance from one side of the packaging to the other.
8 mm


Package depth

The distance from the front to the back of the packaging.

91 mm


Package height

The distance from the top to the bottom of the packaging.

85 mm


Certificates


Certification

FCC, CE, RoHS


Logistics data


Harmonized System (HS) code

85176990
