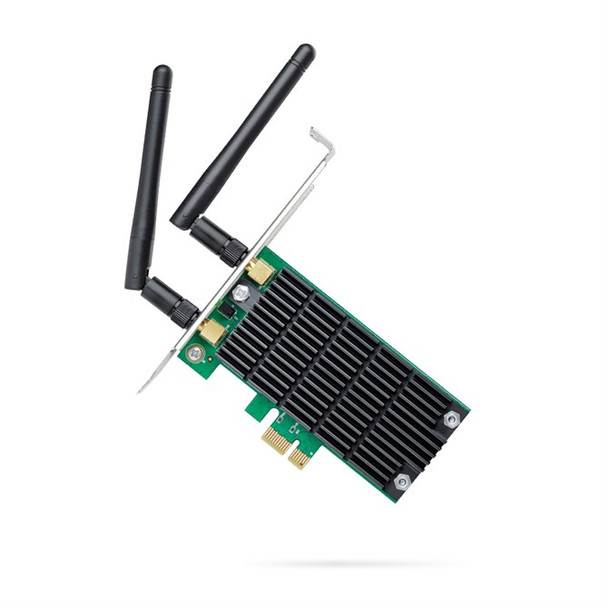

TP-Link Archer T4E Internal WLAN 867 Mbit/s ARCHERT4E

802.11ac - Dual Band Wi-Fi for Faster Connections
TP-LINK's Archer T4E supports the advanced Wi-Fi standard of IEEE 802.11ac, offering 3 times transferring rates as IEEE 802.11n. You can send emails and browse the web with 2.4GHz network, while keeping the speedy 5GHz band free for gaming, HD streaming and other bandwidth intensive applications.

Greater Coverage with Beamforming
Beamforming technology smartly focuses Wi-Fi signals towards connected devices for stable connections and boosted range.

Heat Sink for Ultimate Stability
A heat sink helps to dissipate the thermal energy generated by the adapter, which in turn improves stability. Additionally, lower temperatures help to extend the product lifespan.

External Antennas for More Targeted signal
Two external antennas utilize the latest wireless technology to achieve stable connections and boosted coverage.

Specs




Ports & interfaces


Connectivity technology

The technology that enables connectivity of the device, e.g. wired or wireless.

Wireless


Host interface

Interface that enables a host controller to communicate with a driver.

PCI Express


Interface

Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2.

WLAN


PCI Card form factor

Design of the PCI Card.

Half-height (low-profile)


Network


Maximum data transfer rate

The maximum speed with which data can be transmitted from one device to another.

867 Mbit/s


Networking standards

The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n


Wi-Fi

Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.




Wi-Fi band

The frequency bands the product features.

Dual-band (2.4 GHz / 5 GHz)


Top Wi-Fi standard

Connection of this device is done via Wi-Fi in a high standard.

Wi-Fi 5 (802.11ac)


Wi-Fi standards

The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.

802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)


WLAN data transfer rates supported
, 54, 300, 867 Mbit/s


Modulation

Modulation is the process of varying one or more properties of a periodic waveform, called the carrier signal (High Frequency Signal), with a modulating signal which typically contains information to be transmitted. The aim of digital modulation is to transfer a digital bit stream over an analog bandpass channel, for example over the public switched telephone network (where a bandpass filter limits the frequency range to between 300 and 3400 Hz), or over a limited radio frequency band. The aim of analog modulation is to transfer an analog baseband (or lowpass) signal, for example an audio signal or TV signal, over an analog bandpass channel at a different frequency, for example over a limited radio frequency band or a cable TV network channel.
-QAM, 64-QAM, 256-QAM, CCK, DBPSK, DQPSK, OFDM


Security algorithms

Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.

64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK


Bandwidth (first)

2.4 GHz


Bandwidth (second)

5 GHz


Design


Component for

What this product is used as a part of (component for).

PC


Product colour

The colour e.g. red, blue, green, black, white.

Black, Green


Internal

The product is built in.




Antenna




Antenna design

External


Transmitting power (CE)

23 dBm


Transmitting power (FCC)

24 dBm


Operating modes

Infrastructure mode


System requirements


Windows operating systems supported

Windows vesions wich can be used with the device.

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64


Operational conditions


Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 40 °C



Operational conditions


Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-40 - 70 °C


Operating relative humidity (H-H)
- 90%


Storage relative humidity (H-H)

5 - 90%


Sustainability


Sustainability compliance




Weight & dimensions


Width

The measurement or extent of something from side to side.
0.8 mm


Depth

The distance from the front to the back of something.
5.2 mm


Height

The measurement of the product from head to foot or from base to top.

21.5 mm


Packaging data


Low-profile bracket




Quantity per pack

1 pc(s)


Package type

The type of product package e.g. box.

Box


Package width

The distance from one side of the packaging to the other.
7 mm


Package depth

The distance from the front to the back of the packaging.
8 mm


Package height

The distance from the top to the bottom of the packaging.

42 mm


Package weight

Weight of the packaged product.

300 g


Packaging content


Mounting brackets included




Resource CD




Quick installation guide




Technical details


Compliance certificates

RoHS, Federal Communications Commission (FCC), CE


Logistics data


Harmonized System (HS) code

85176990


Other features


Detachable antenna(s)




Antennas quantity

2


Transmit power range

59.5 - 92 dBmW


Conflict-Free

"Conflict free" means "DRC conflict free", which is defined by the U.S. Securities and Exchange Commission rules to mean products that do not contain conflict minerals (tin, tantalum, tungsten and/or gold) that directly or indirectly finance or benefit armed groups in the Democratic Republic of the Congo (DRC) or adjoining countries.
